NSN 6520-00-890-1778 MILS36186, 00-890-1778, 008901778
Product Details | DENTAL INSTRUMENT POINT HANDLE
6520-00-890-1778 An item designed for use with dental instrument points in oral prophylaxis procedures.
Part Alternates: MILS36186, 6520-00-890-1778, 00-890-1778, 6520008901778, 008901778
Medical, Dental, and Veterinary Equipment and Supplies | Dental Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 01 JAN 1962 | 00-890-1778 | 26446 ( HANDLE, DENTAL INSTRUMENT POINT ) |

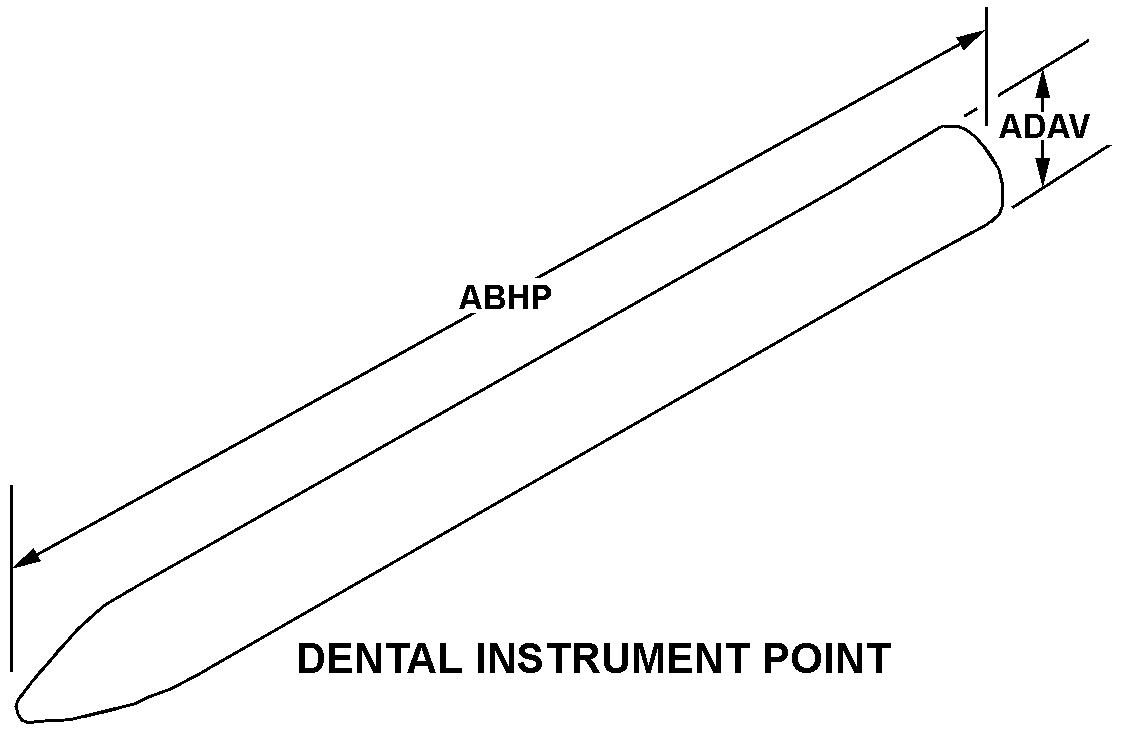

Drawings & Photos | NSN 6520-00-890-1778
Cross Reference | NSN 6520-00-890-1778
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILS36186 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6520-00-890-1778
Technical Data | NSN 6520-00-890-1778
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OR CHROMIUM PLATE |
| STYLE DESIGNATOR | H18 DENTAL INSTRUMENT POINT |
| OVERALL LENGTH | 4.875 INCHES MINIMUM AND 5.375 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.297 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| INSTRUMENT ATTACHMENT METHOD | CHUCK |
| SPECIAL FEATURES | FOR USE W/SCALER POINT,6520-00-890-1779 AND 6520-00-890-1781 |
| NONDEFINITIVE SPEC/STD DATA | II TYPE |
| III UNIT OF ISSUE CUBE | 0.008 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 1.60 CUBIC FEET |
| III INTERMEDIATE PACKAGE QUANTITY | 6 |
| III EXTERIOR CONTAINER QUANTITY | 192 |
| III EXTERIOR CONTAINER WEIGHT | 30.00 POUNDS |
| III UNIT OF ISSUE WEIGHT | 0.15 POUNDS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS36186 |
Restrictions/Controls & Freight Information | NSN 6520-00-890-1778
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 056680 | DENTAL/MEDICAL/SURG INST R MACHINE |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 650 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
