NSN 6540-00-528-2970 4266, 4-266, 00-528-2970
Product Details | SEMIFINISHED BIFOCAL OPHTHALMIC LENS BLANK
6540-00-528-2970 A transparent optical element consisting of a major blank and a bifocal segment. The blank and segment have been pressed in a glass mold to an approximate size and shape, and are ground and polished to a finished diopter curvature on one surface only.
Part Alternates: 4266, 4-266, 6540-00-528-2970, 00-528-2970, 6540005282970, 005282970
Medical, Dental, and Veterinary Equipment and Supplies | Ophthalmic Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 00-528-2970 | 30300 ( LENS BLANK, OPHTHALMIC, BIFOCAL, SEMIFINISHED ) |
Drawings & Photos | NSN 6540-00-528-2970
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6540-00-528-2970
Technical Data | NSN 6540-00-528-2970
| Characteristic | Specifications |
|---|---|

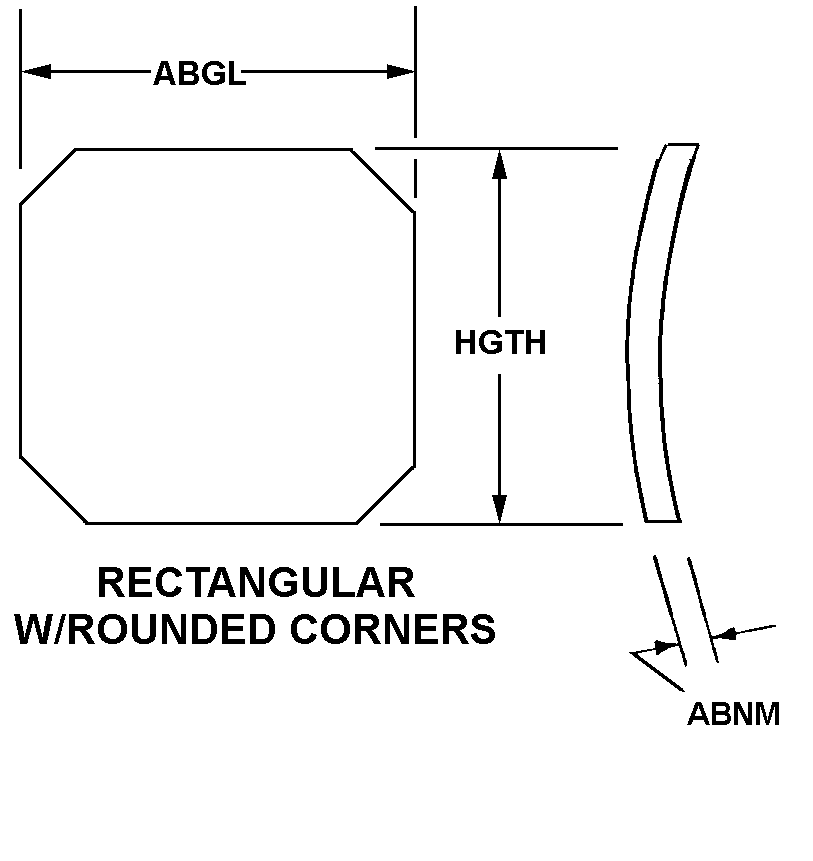

| STYLE DESIGNATOR | A4 RECTANGULAR WITH ROUNDED CORNERS |
| DIAMETER | 65.0 MILLIMETERS MINIMUM |
| WIDTH | 65.0 MILLIMETERS NOMINAL |
| HEIGHT | 60.0 MILLIMETERS NOMINAL |
| THICKNESS | ANY ACCEPTABLE |
| MATERIAL AND LOCATION | GLASS, SODA-LIME SINGLE VISION AND GLASS, SODA-LIME BIFOCAL |
| LIGHT TRANSMISSION | UNTINTED |
| CROSS-SECTIONAL SHAPE STYLE | D2 SPHERE |
| BASE CURVE DIOPTER | 6.50 PLUS NOMINAL |
| CROSS CURVE DIOPTER | ANY ACCEPTABLE |
| SPHERE CURVE INSIDE DIOPTER | ANY ACCEPTABLE |
| SPHERE CURVE OUTSIDE DIOPTER | ANY ACCEPTABLE |
| ADDITIONAL POWER RATING IN DIOPTERS | 2.250 BIFOCAL |
| III INTERMEDIATE PACKAGE QUANTITY | 5 |
| III EXTERIOR CONTAINER QUANTITY | 180 |
| III UNIT OF ISSUE WEIGHT | 0.28 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 51.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.0061 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | LENS BLANK OPHTH BIFOCAL SEMIFINISHED GLASS +6.5 ADDL2.25DIOPTER |
| III EXTERIOR CONTAINER CUBIC MEASURE | 1.100 CUBIC FEET |
Restrictions/Controls & Freight Information | NSN 6540-00-528-2970
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
