Product Details | MOUNTED MAGNETIC COMPASS
6605-00-526-7164 An instrument which utilizes a magnetic needle or indicator and a graduated dial or card to determine direction in relation to the magnetic north. It has provisions for mounting in a fixed position to insure proper alignment when in use.
Part Alternates: AN5766T3, MILC5604, 1979U401, 1979U4-01, 6605-00-526-7164, 00-526-7164, 6605005267164, 005267164
Instruments and Laboratory Equipment | Navigational Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-526-7164 | 16206 ( COMPASS, MAGNETIC, MOUNTED ) |

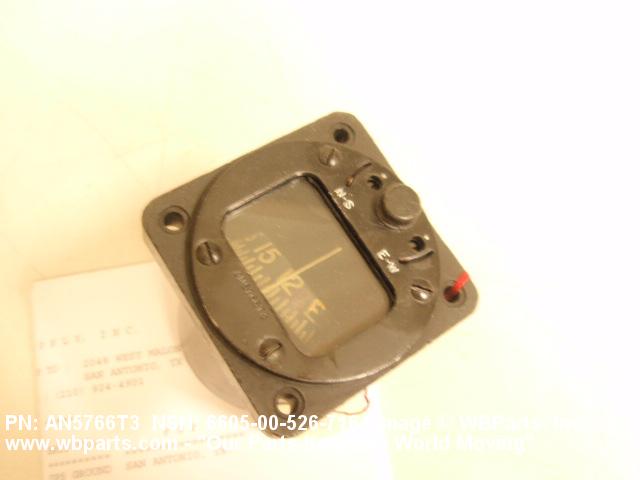

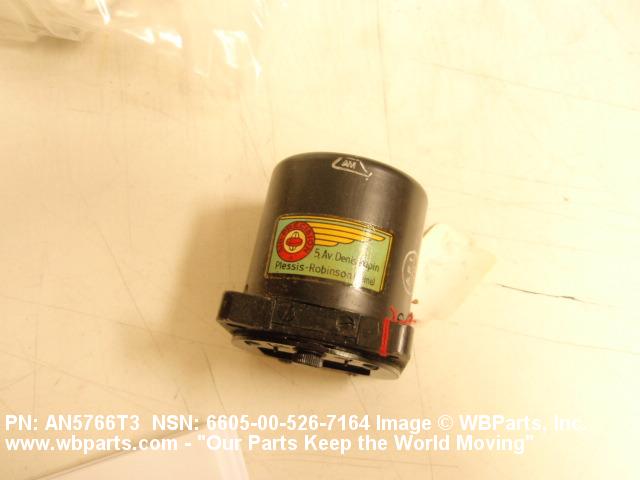

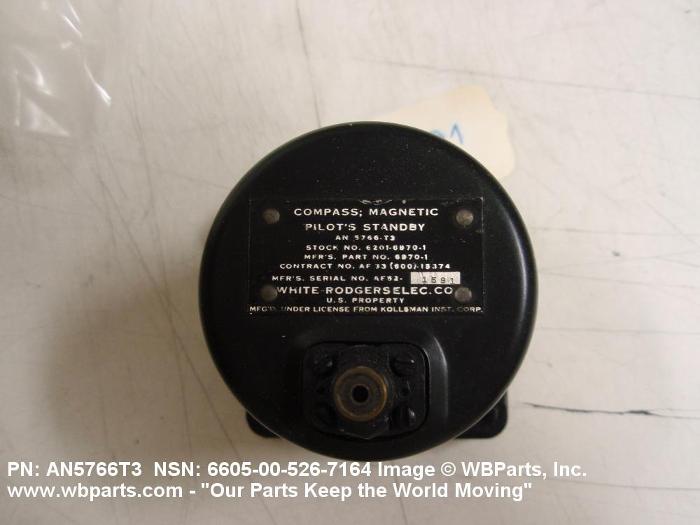

Drawings & Photos | NSN 6605-00-526-7164
Demand History | NSN 6605-00-526-7164
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 6605-00-526-7164
6605-00-526-7192, 6605-00-526-7193, 6605-00-526-7207, 6605-00-526-7210, 6605-00-526-7251
Technical Data | NSN 6605-00-526-7164
| Characteristic | Specifications |
|---|---|
| INSTRUMENT TYPE | WET |
| FLUID TYPE | 0IL |
| BOWL SHAPE | SPHERICAL |
| BOWL ELEMENT TYPE | CARD |
| CARD SIZE | 1.875 INCHES |
| DESIGN TYPE | SIDE READING |
| ILLUMINATED FEATURE | INCLUDED |
| ILLUMINATED LOCATION | OVER |
| DIAL FINISH | FLUORESCENT |
| MOUNTING METHOD | PANEL |
| COMPENSATING FEATURE | INCLUDED |
| COMPENSATOR TYPE | CYLINDERS |
| HEELING CORRECTORS | PROVIDED |
| SMALLEST INCREMENT IN DEG | 5.0 CARD |
| OVERALL LENGTH | 3.219 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN5766T3 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC5604 |
| MANUFACTURERS CODE | 89944 |
| DESIGN CONTROL REFERENCE | 1979U4-01 |
Restrictions/Controls & Freight Information | NSN 6605-00-526-7164
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058010 | MAGNETIC COMPASSES IN BOXES |
| Less than car load rating | F | 150 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
