NSN 6605-00-766-6901 APAF58, APAF-58, FAA215
Product Details | AIR NAVIGATION PLOTTER-PROTRACTOR

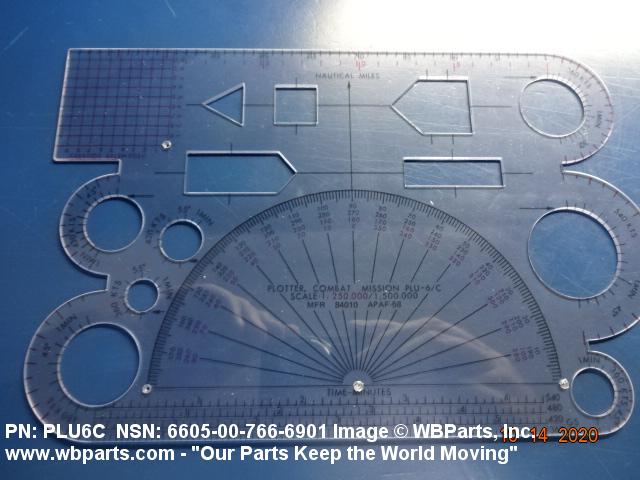

6605-00-766-6901 An item generally constructed on a transparent plastic material. It embodies a standard inch scale, an inner and/or outer statue mile scale, a vertical statue mile scale, and may also include a nautical mile scale. The semicircular protractor portion may be offset or inset in forming a part of the item. It is designed to be used in plotting courses, measuring distances between two points on a chart or map, establishing meridians of references, solving wind angles, and determining bearing positions.
Part Alternates: APAF58, APAF-58, FAA215, FAA-215, PLU6C, 6605-00-766-6901, 00-766-6901, 6605007666901, 007666901
Instruments and Laboratory Equipment | Navigational Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 15 APR 1972 | 00-766-6901 | 61582 ( PLOTTER-PROTRACTOR, AIR NAVIGATION ) |
Drawings & Photos | NSN 6605-00-766-6901
Demand History | NSN 6605-00-766-6901
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6605-00-766-6901 | 2026-03-71 | 40 | US |
| 6605-00-766-6901 | 2026-01-13 | 5 | United States |
| 6605-00-766-6901 | 2025-12-338 | 60000 | Turkey |
| 6605-00-766-6901 | 2025-11-332 | 5 | United States |
| 6605-00-766-6901 | 2025-11-332 | 1 | US |
| FAA215 | 2023-09-261 | 120 | US |
| 6605-00-766-6901 | 2023-09-257 | 60 | US |
| 6605-00-766-6901 | 2023-06-177 | 50 | United States |
| 6605-00-766-6901 | 2023-05-136 | 50 | United States |
| 6605-00-766-6901 | 2023-05-136 | 50 | United States |
| 6605-00-766-6901 | 2023-04-95 | 60 | United States |
| FAA215 | 2022-08-243 | 20 | US |
| 6605-00-766-6901 | 2022-05-130 | 10 | US |
| 6605-00-766-6901 | 2022-03-66 | 10 | US |
| 6605-00-766-6901 | 2020-10-275 | 20 | United States |
| 6605-00-766-6901 | 2020-09-274 | 20 | United States |
| 6605-00-766-6901 | 2020-06-176 | 20 | US |
| APAF-58 | 2019-02-36 | 1281 | DIBBS |
| PLU6C | 2019-02-36 | 1281 | DIBBS |
| APAF-58 | 2019-01-27 | 1281 | DIBBS |
| PLU6C | 2019-01-27 | 1281 | DIBBS |
| 6605-00-766-6901 | 2018-11-309 | 15 | US |
| 6605-00-766-6901 | 2018-10-284 | 254 | DIBBS |
| 6605-00-766-6901 | 2018-06-156 | 582 | DIBBS |
| 6605-00-766-6901 | 2018-05-128 | 1 | DIBBS-RFPs |
| 6605-00-766-6901 | 2018-05-128 | 680 | DIBBS |
| 6605-00-766-6901 | 2018-02-57 | 30 | United States |
| 6605-00-766-6901 | 2016-12-344 | 2 | UK |
| 6605-00-766-6901 | 2014-07-198 | 10 | US |
| 6605-00-766-6901 | 2014-06-170 | 5 | US |
| 6605-00-766-6901 | 2014-01-27 | 40 | US |
| 6605-00-766-6901 | 2013-11-305 | 25 | US |
| 6605-00-766-6901 | 2011-08-237 | 4 | US |
| 6605-00-766-6901 | 2009-07-203 | 20 | US |
| 6605-00-766-6901 | 2009-04-98 | 1 | US |
| 6605-00-766-6901 | 2008-12-361 | 10 | US |
| 6605-00-766-6901 | 2008-09-264 | 1 | US |
| 6605-00-766-6901 | 2008-07-183 | 1 | US |
| 6605-00-766-6901 | 2008-01-23 | 100 | US |
| 6605-00-766-6901 | 2008-01-18 | 10 | US |
| 6605-00-766-6901 | 2007-12-361 | 35 | US |
| 6605-00-766-6901 | 2007-06-157 | 950 | DIBBS |
