NSN 6610-01-052-5584 SLZ96952, SLZ9695-2, 16VC0022
Product Details | ANGLE OF ATTACK TRANSMITTER
6610-01-052-5584 An item that measures and transmits information electrically, relative to angle of airflow with respect to a reference line, such as the longitudinal or lateral axis of an aircraft. Excludes TRANSDUCER, MOTIONAL PICKUP. See also TRANSMITTER (as modified).
Part Alternates: SLZ96952, SLZ9695-2, 16VC0022, 16VC002-2, 6610-01-052-5584, 01-052-5584, 6610010525584, 010525584
Instruments and Laboratory Equipment | Flight Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 15 DEC 1977 | 01-052-5584 | 28140 ( TRANSMITTER, ANGLE OF ATTACK ) |

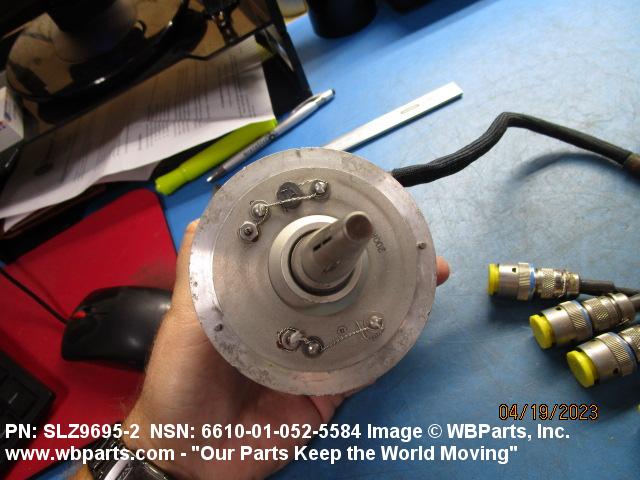

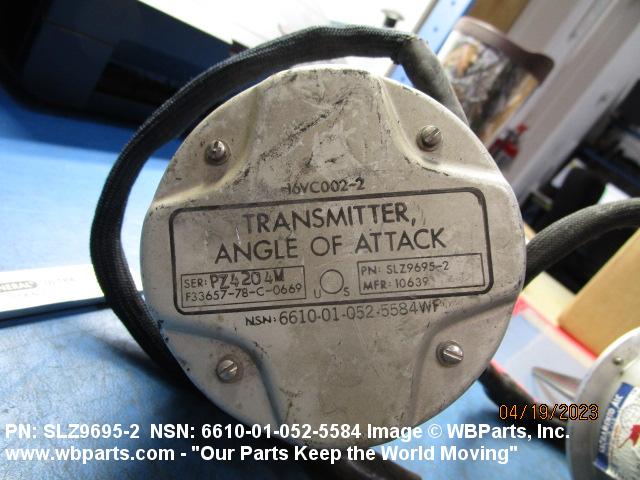

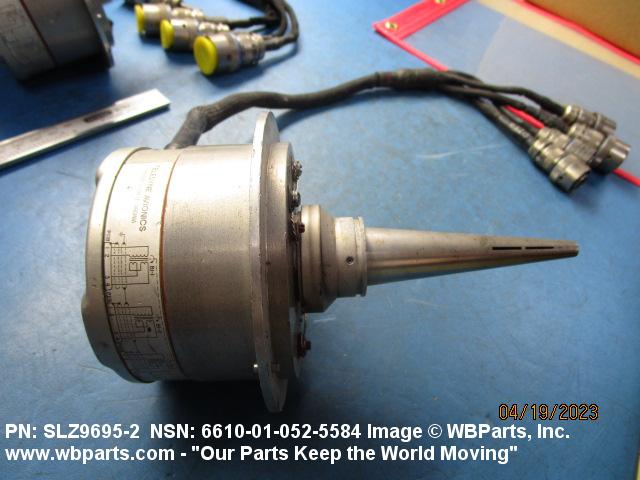

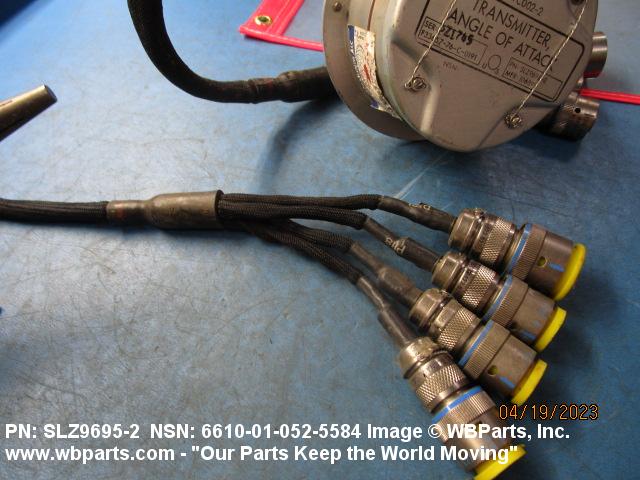

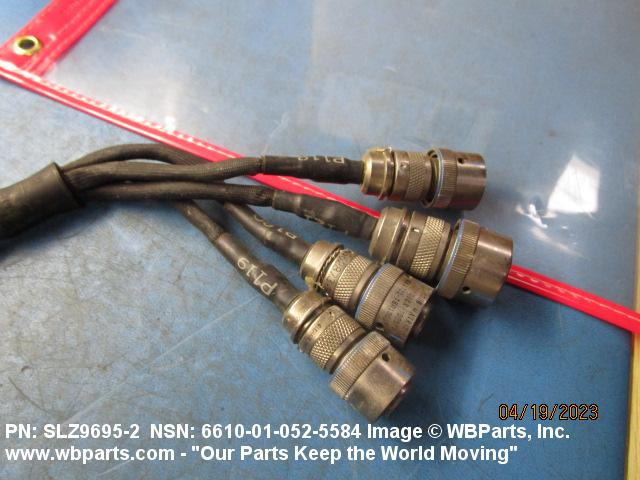

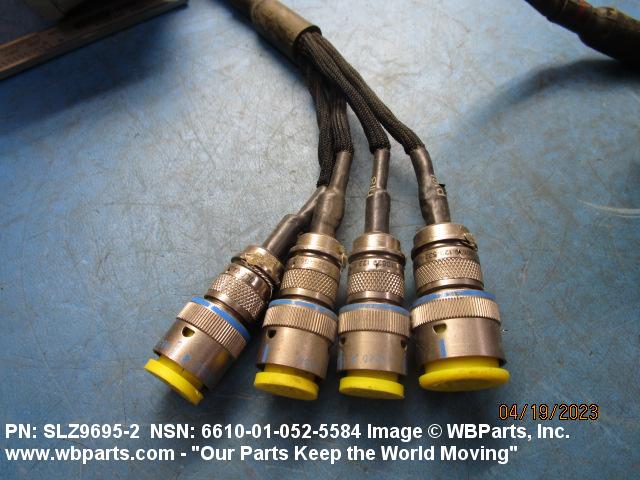

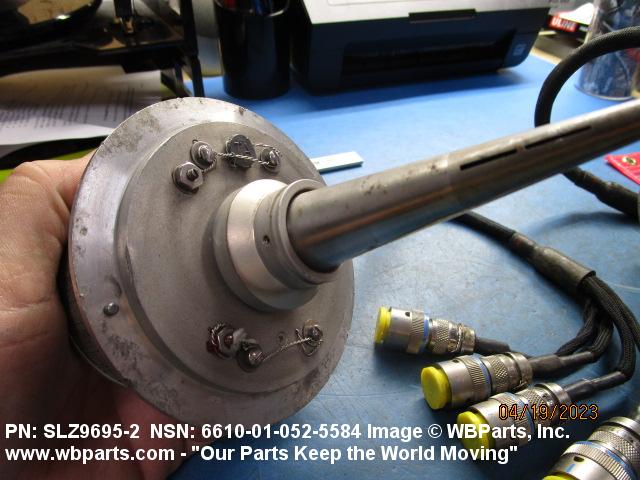

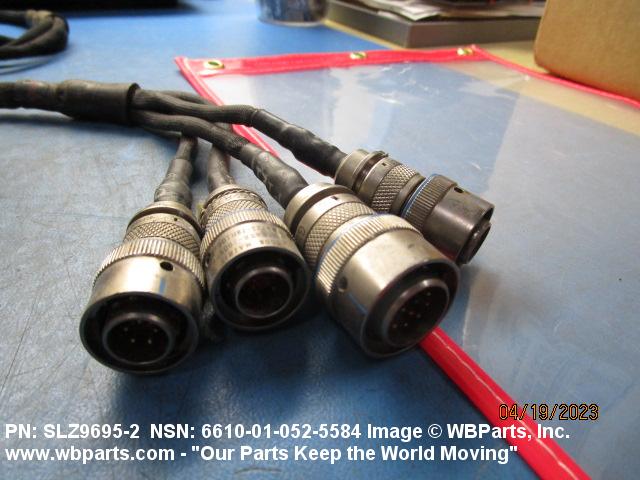

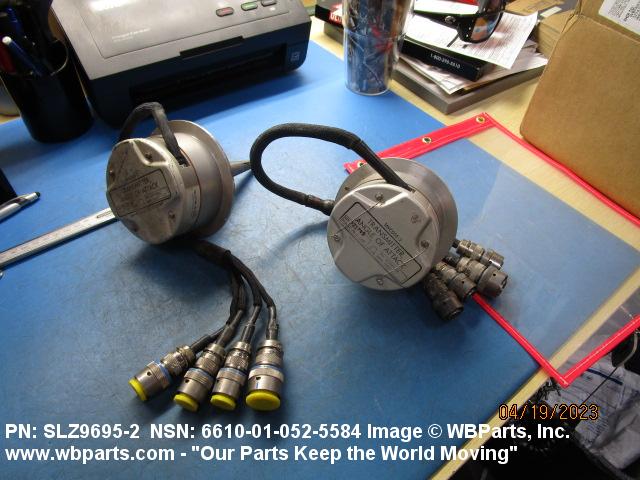

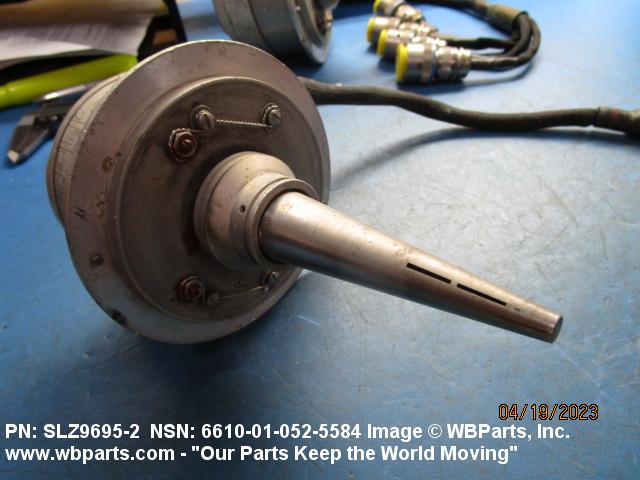

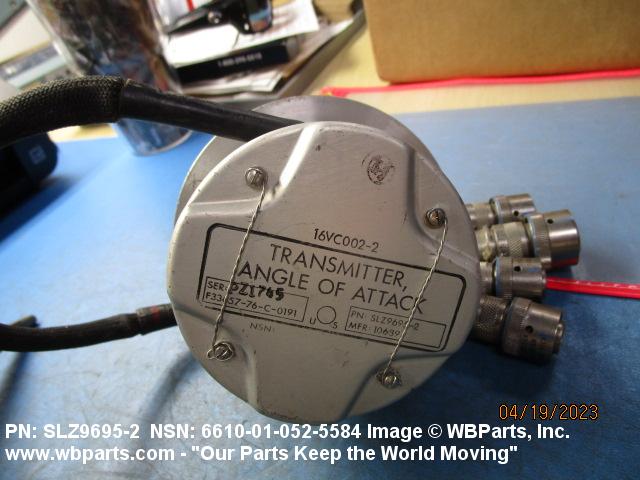

Drawings & Photos | NSN 6610-01-052-5584
Demand History | NSN 6610-01-052-5584
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SLZ96952 | 2023-12-339 | 1 | Hong Kong |
| 6610-01-052-5584 | 2023-03-87 | 2 | Hong Kong |
| 6610-01-052-5584 | 2022-12-365 | 2 | HK |
| 6610-01-052-5584 | 2022-06-161 | 2 | Hong Kong |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6610-01-052-5584
Related Products | NSN 6610-01-052-5584
Technical Data | NSN 6610-01-052-5584
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 7.125 INCHES NOMINAL |
| OVERALL DIAMETER | 4.499 INCHES NOMINAL |
| MOUNTING METHOD | FIXED FLANGE |
| ELECTRICAL CONNECTION QUANTITY | 4 |
| CONTACT QUANTITY | 4 |
| CONTACT TYPE | PIN |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 115.0 |
| PHASE | SINGLE |
| ATTACHMENT DEVICE TYPE | DOWEL PIN |
| ELECTRICAL HEATING ELEMENT | PROVIDED |
| HEATING ELEMENT CURRENT TYPE | AC |
| HEATING ELEMENT VOLTAGE IN VOLTS | 115.0 |
| HEATING ELEMENT WATTAGE IN WATTS | 115.0 |
| SENSING ELEMENT TYPE | PROBE |
| TOTAL ANGULAR ROTATION IN DEG | 90.0 |
| CASE MATERIAL | ALUMINUM |
| CASE SURFACE TREATMENT | ANODIZED,MIL-A-8625,TYPE 1,CLASS 1 |
| CABLE LENGTH | 16.000 INCHES MINIMUM AND 20.000 INCHES MAXIMUM |
| CABLE CONDUCTOR QUANTITY | 4 |
| SWITCH | NOT INCLUDED |
| OPERATING TEMP RANGE IN DEG CELSIUS | 32.22 TO 51.67 |
| MANUFACTURERS CODE | 10639 |
| DESIGN CONTROL REFERENCE | SLZ9695-2 |
Restrictions/Controls & Freight Information | NSN 6610-01-052-5584
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062820 | RADIO/TV TRANSMIT/RECEIVE SETS SUB1 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6610-01-052-5584
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | FB | FIGHTERAIRCRAFT(F-16N) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
