NSN 6620-01-468-6017 35677243002, 3567724-3002, 01-468-6017
Product Details | PRESSURE TRANSMITTER
6620-01-468-6017 An instrument that senses, measures and converts pressure of a gas or fluid into electrical signals to be displayed in Pounds per Square Inch (PSI) or the equivalent. The item contains an input pressure port, electrical output connection and may include an output pressure port. See also TRANSDUCER, MOTIONAL PICKUP for items with a linear motional input and electrical output to be displayed in other than PSI or the equivalent.20266200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: 35677243002, 3567724-3002, 6620-01-468-6017, 01-468-6017, 6620014686017, 014686017
Instruments and Laboratory Equipment | Engine Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 15 OCT 1999 | 01-468-6017 | 03375 ( TRANSMITTER, PRESSURE ) |

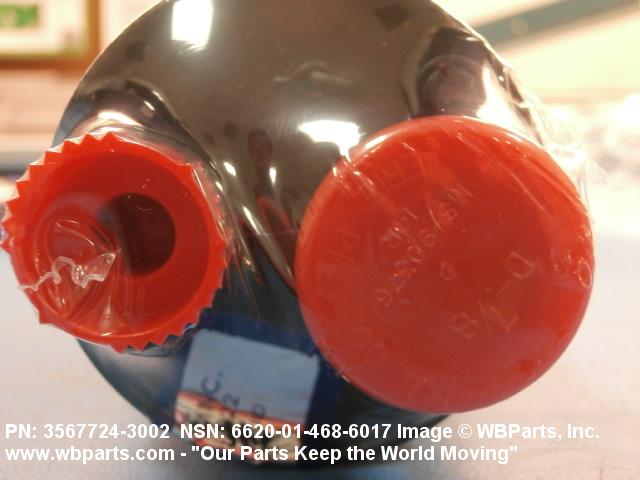

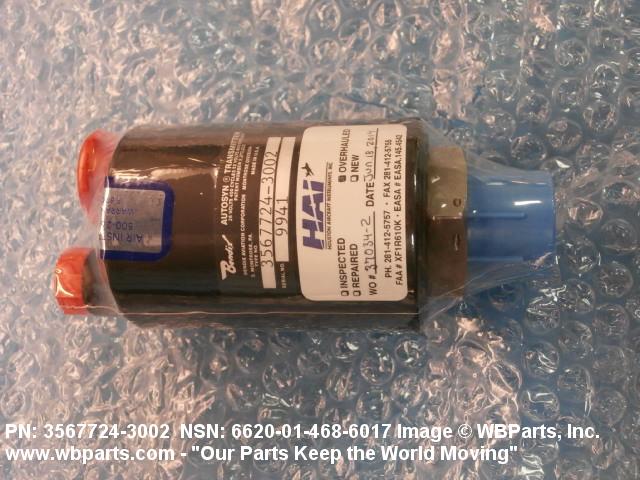

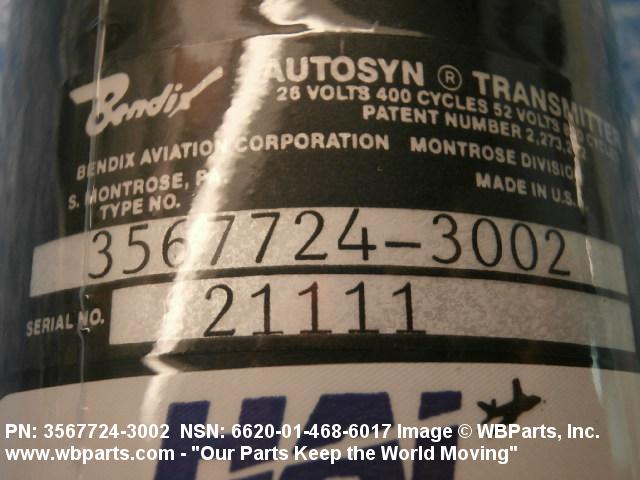

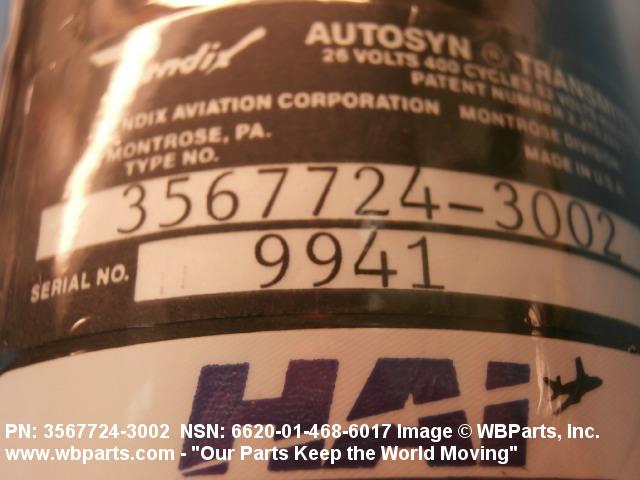

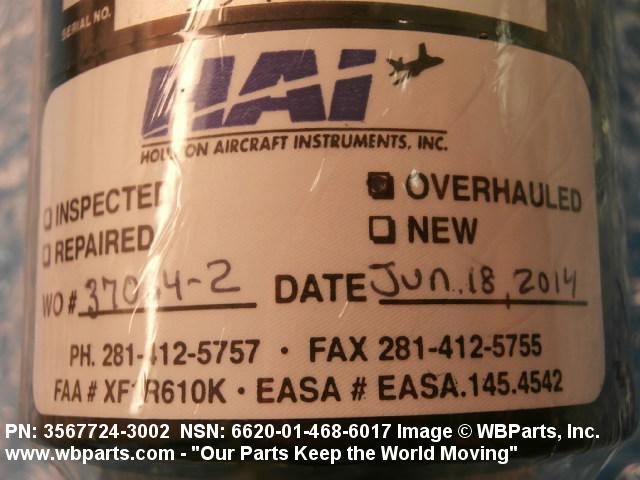

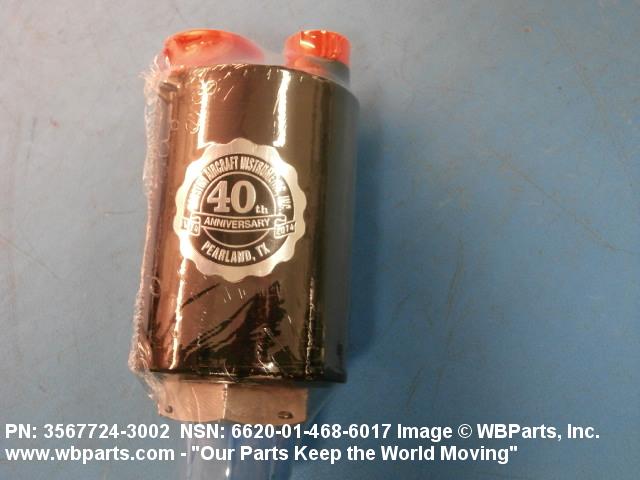

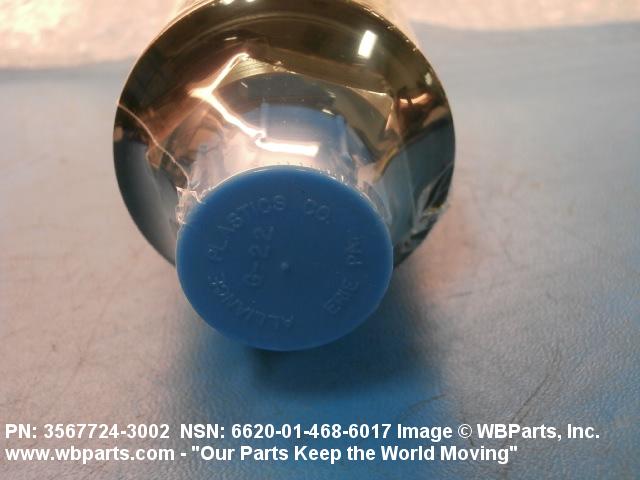

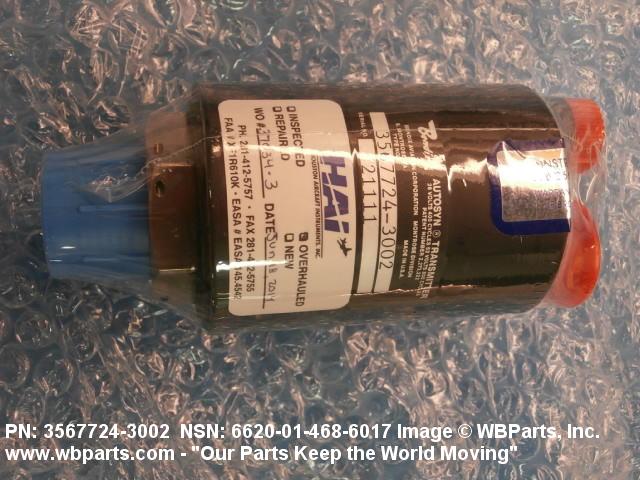

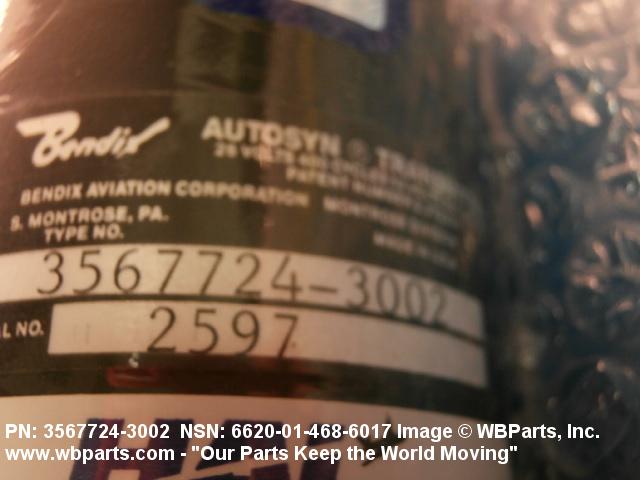

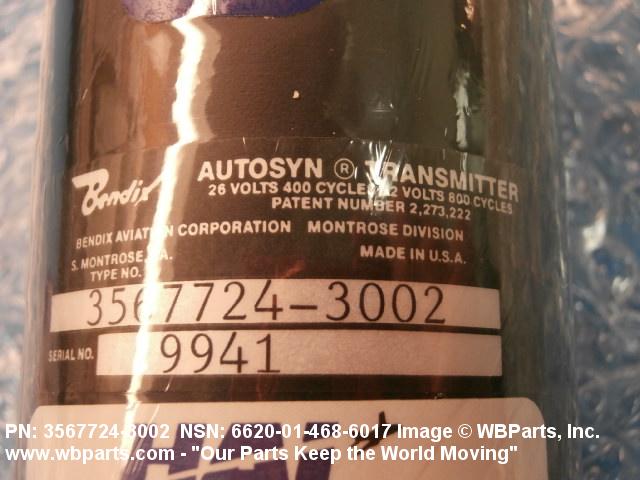

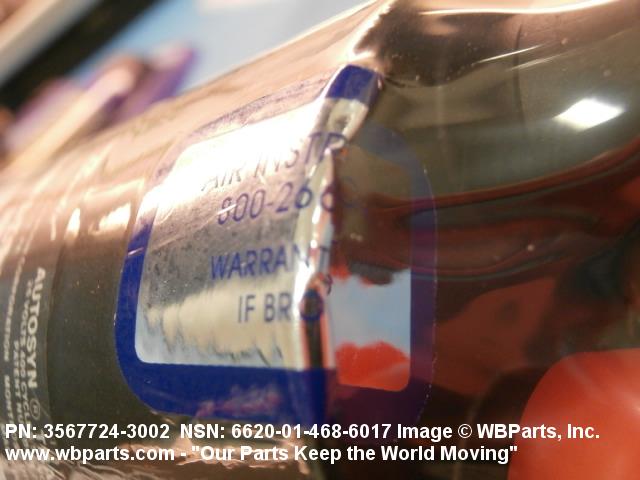

Drawings & Photos | NSN 6620-01-468-6017
Demand History | NSN 6620-01-468-6017
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6620-01-468-6017 | 2014-05-150 | 3 | Malaysia |
Cross Reference | NSN 6620-01-468-6017
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3567724-3002 | 96774 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6620-01-468-6017
Technical Data | NSN 6620-01-468-6017
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| ACTUATION METHOD | DIFFERENTIAL TRANSFORMER |
| MEASUREMENT RANGE | 0.0 TO 100.0 POUNDS PRESSURE PER SQUARE INCH |

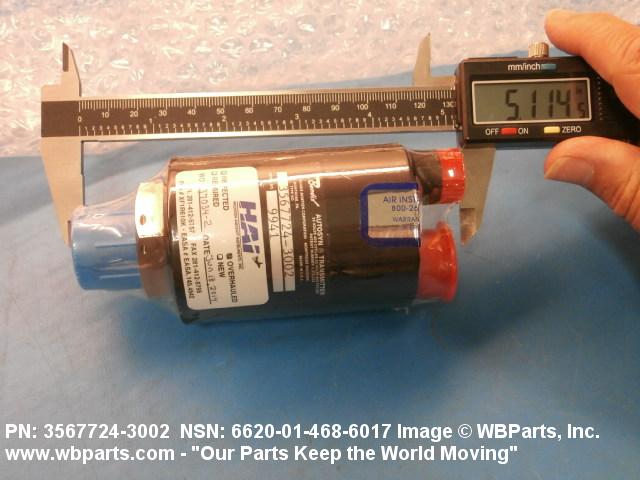

| OVERALL LENGTH | 5.125 INCHES NOMINAL |

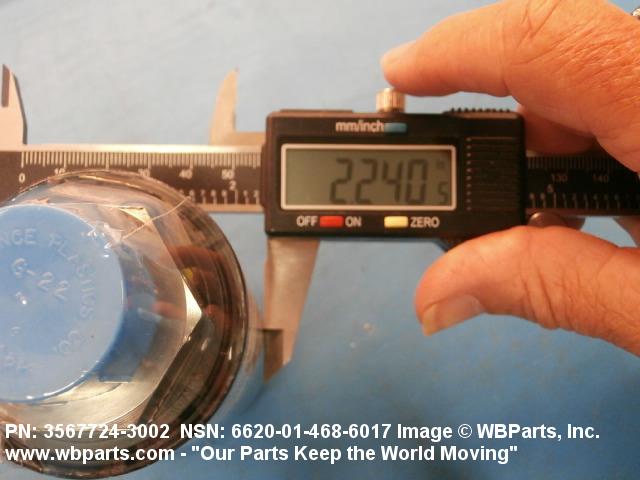

| OVERALL DIAMETER | 2.250 INCHES NOMINAL |
| MOUNTING DEVICE QUANTITY | 1 |
| SPECIAL FEATURES | DAMPED WITH SILICONE OIL TO REDUCE NOISE; 320 DEGREE SYNCHRO-OPERATED; STAINLESS STEEL HOUSING; HERMETIC SEAL; MANUFACTURER ITEM NAME: DIFFERENTIAL PRESSURE TRANSMITTER OR OIL PRESSURE TRANSMITTER |
| III END ITEM IDENTIFICATION | USED ON ROLLS ROYCE AIRCRAFT ENGINES |
Restrictions/Controls & Freight Information | NSN 6620-01-468-6017
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
