NSN 6625-00-066-6856 700X65G266, 00-066-6856, 000666856
Product Details | WATTHOUR METER
6625-00-066-6856 An instrument which indicates the power consumed in an electric circuit over a period of time, and which for normal indication is calibrated in watthours or any multiple thereof. May include a demand element.
Part Alternates: 700X65G266, 6625-00-066-6856, 00-066-6856, 6625000666856, 000666856
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-066-6856 | 00791 ( METER, WATTHOUR ) |
Drawings & Photos | NSN 6625-00-066-6856
Cross Reference | NSN 6625-00-066-6856
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 700X65G266 | 24446 | GENERAL ELECTRIC CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-066-6856
Technical Data | NSN 6625-00-066-6856
| Characteristic | Specifications |
|---|---|
| MOUNTING TYPE | PANEL |
| INDICATION TYPE | NORMAL |
| VOLTAGE RATING | 120.0 VOLTS NOMINAL |
| CURRENT RATING IN AMPS | 2.5 |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | THREE |
| WIRE QUANTITY | 3 |
| ELEMENT QUANTITY | 2 |

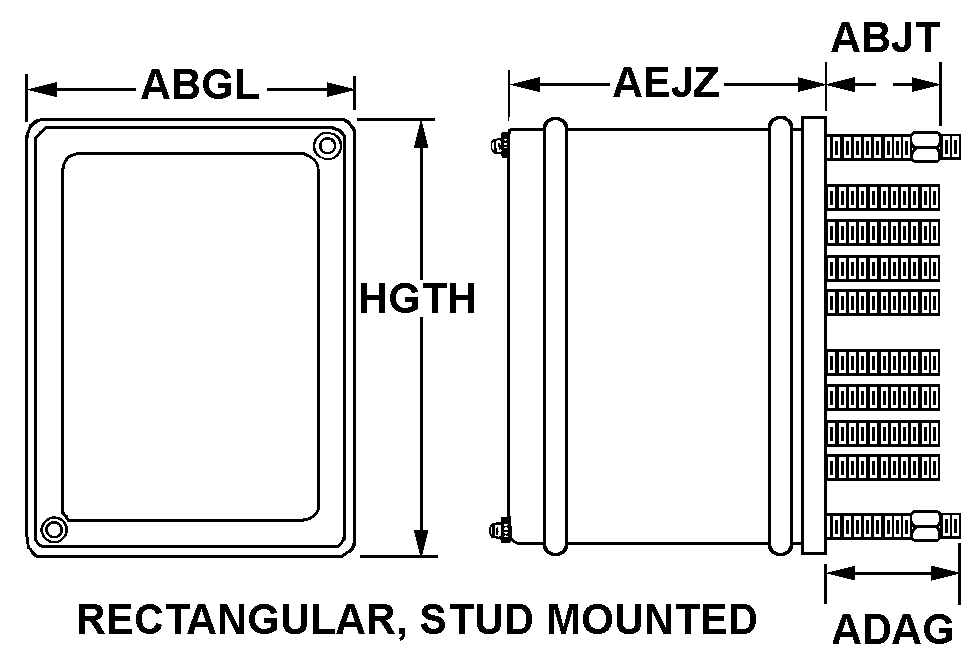

| CASE STYLE | A5 RECTANGULAR, STUD MOUNTED |
| WIDTH | 6.625 INCHES NOMINAL |
| TERMINAL LENGTH | 0.750 INCHES NOMINAL |
| MOUNTING STUD LENGTH | ANY ACCEPTABLE |
| DEPTH | 5.687 INCHES NOMINAL |
| HEIGHT | 9.125 INCHES NOMINAL |
| CASE COVER SHAPE | FLAT |
| CASE COVER MATERIAL | GLASS |
| TERMINAL QUANTITY | 13 |
| TERMINAL TYPE | SCREW |
| TERMINAL LOCATION | CASE BACK |
| TRANSFORMER TYPE AND QUANTITY | 2 CURRENT |
| TRANSFORMER | NOT INCLUDED |
| MOUNTING CONFIGURATION | 4 MTG HOLES,1/4 IN. DIA ON 4-3/8 IN. BY 6-1/8 IN. MTG CENTERS |
| REGISTER MAXIMUM MEASUREMENT | 10.0 KILOWATT-HOUR |
Restrictions/Controls & Freight Information | NSN 6625-00-066-6856
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
