NSN 6625-00-081-5840 13205E4791, 254014, 30011
Product Details | AMMETER
6625-00-081-5840 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: 13205E4791, 254014, 30011, 300-11, 35.7004, 357004, 63716751, 637-16751, 69598, 69-598, 6625-00-081-5840, 00-081-5840, 6625000815840, 000815840
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 24 DEC 1967 | 00-081-5840 | 16450 ( AMMETER ) |

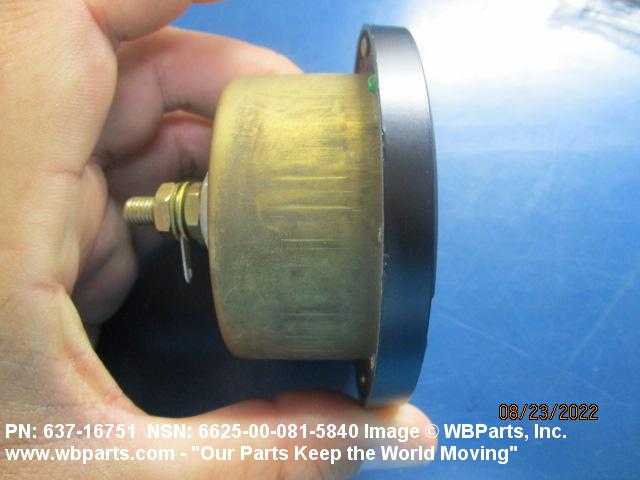

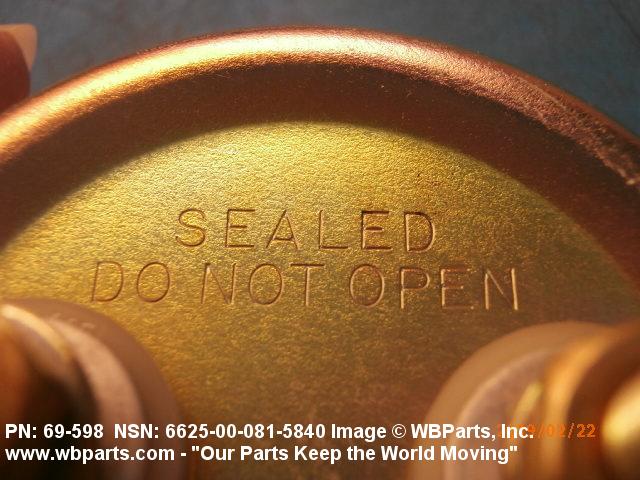

Drawings & Photos | NSN 6625-00-081-5840
Demand History | NSN 6625-00-081-5840
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 300-11 | 2025-11-321 | 34 | DIBBS |
| 35.7004 | 2025-11-321 | 34 | DIBBS |
| 637-16751 | 2025-11-321 | 34 | DIBBS |
| 300-11 | 2025-11-310 | 34 | DIBBS |
| 35.7004 | 2025-11-310 | 34 | DIBBS |
| 637-16751 | 2025-11-310 | 34 | DIBBS |
| 300-11 | 2024-01-11 | 46 | DIBBS |
| 35.7004 | 2024-01-11 | 46 | DIBBS |
| 637-16751 | 2024-01-11 | 46 | DIBBS |
| 300-11 | 2023-02-33 | 54 | DIBBS |
| 35.7004 | 2023-02-33 | 54 | DIBBS |
| 637-16751 | 2023-02-33 | 54 | DIBBS |
| 6625-00-081-5840 | 2022-10-296 | 7 | Taiwan |
| 6625-00-081-5840 | 2022-08-213 | 2 | Taiwan |
| 6625-00-081-5840 | 2022-07-194 | 4 | United States |
| 300-11 | 2021-11-308 | 45 | DIBBS |
| 35.7004 | 2021-11-308 | 45 | DIBBS |
| 637-16751 | 2021-11-308 | 45 | DIBBS |
| 300-11 | 2020-10-294 | 87 | DIBBS |
| 35.7004 | 2020-10-294 | 87 | DIBBS |
| 637-16751 | 2020-10-294 | 87 | DIBBS |
| 300-11 | 2020-10-279 | 129 | DIBBS |
| 35.7004 | 2020-10-279 | 129 | DIBBS |
| 637-16751 | 2020-10-279 | 129 | DIBBS |
| 300-11 | 2020-09-261 | 24 | DIBBS |
| 35.7004 | 2020-09-261 | 24 | DIBBS |
| 637-16751 | 2020-09-261 | 24 | DIBBS |
| 300-11 | 2020-06-163 | 78 | DIBBS |
| 35.7004 | 2020-06-163 | 78 | DIBBS |
| 637-16751 | 2020-06-163 | 78 | DIBBS |
| 300-11 | 2019-10-276 | 51 | DIBBS |
| 35.7004 | 2019-10-276 | 51 | DIBBS |
| 637-16751 | 2019-10-276 | 51 | DIBBS |
| 30011 | 2019-02-44 | 1 | US |
| 30011 | 2019-02-44 | 100 | US |
| 6625-00-081-5840 | 2018-12-361 | 1 | Kuwait |
| 6625-00-081-5840 | 2018-11-334 | 1 | Kuwait |
| 6625-00-081-5840 | 2018-11-333 | 1 | United Kingdom |
| 6625-00-081-5840 | 2018-11-332 | 1 | Kuwait |
| 6625-00-081-5840 | 2018-07-205 | 1 | AE |
| 357004 | 2018-07-200 | 2 | US |
| 63716751 | 2018-07-200 | 1 | US |
| 6625-00-081-5840 | 2018-03-88 | 109 | DIBBS |
| 6625-00-081-5840 | 2017-02-33 | 102 | DIBBS |
| 6625-00-081-5840 | 2017-01-22 | 102 | DIBBS |
| 6625-00-081-5840 | 2015-12-348 | 133 | DIBBS |
| 6625-00-081-5840 | 2014-11-314 | 130 | DIBBS |
| 6625-00-081-5840 | 2014-10-303 | 130 | DIBBS |
| 6625-00-081-5840 | 2013-01-31 | 62 | DIBBS |
| 6625-00-081-5840 | 2012-09-248 | 69 | DIBBS |
| 6625-00-081-5840 | 2010-05-132 | 57 | DIBBS |
| 6625-00-081-5840 | 2007-08-226 | 533 | DIBBS |
| 6625-00-081-5840 | 2007-06-157 | 88 | DIBBS |
| 6625-00-081-5840 | 2007-03-79 | 120 | DIBBS |
| 6625-00-081-5840 | 2007-02-36 | 106 | DIBBS |
Cross Reference | NSN 6625-00-081-5840
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13205E4791 | 97403 | CECOM LR CENTER |
| 254014 | 65092 | SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV |
| 300-11 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| 35.7004 | 11707 | IDEAL PRECISION METER CO |

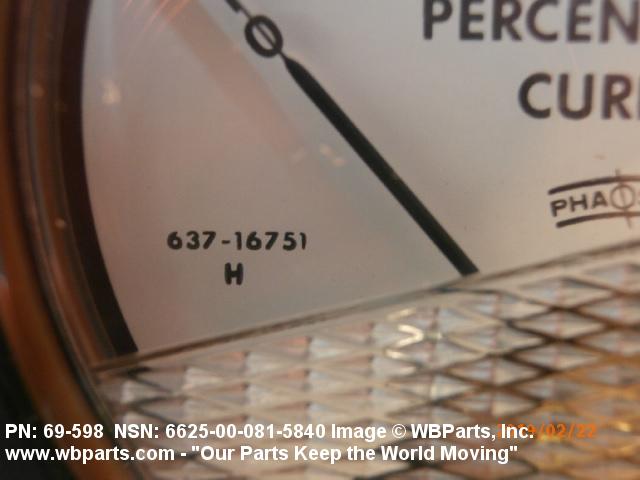

| 637-16751 | 77221 | PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY |
| 69-598 | 30554 | DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-081-5840
Related Products | NSN 6625-00-081-5840
Technical Data | NSN 6625-00-081-5840
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 1.0 AMPERES, AC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | NONLINEAR SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING IRON VANE |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |

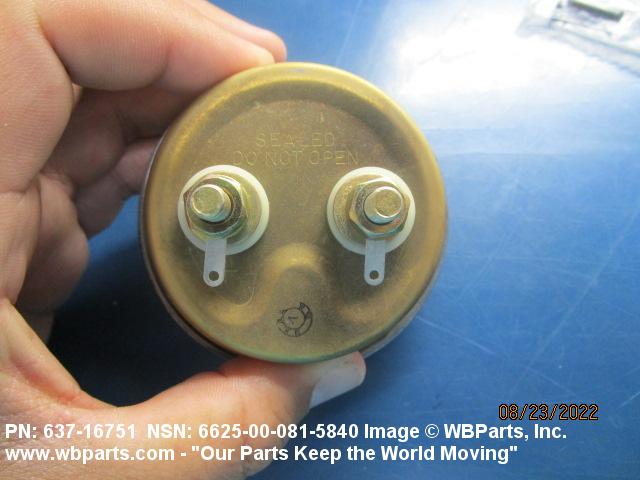

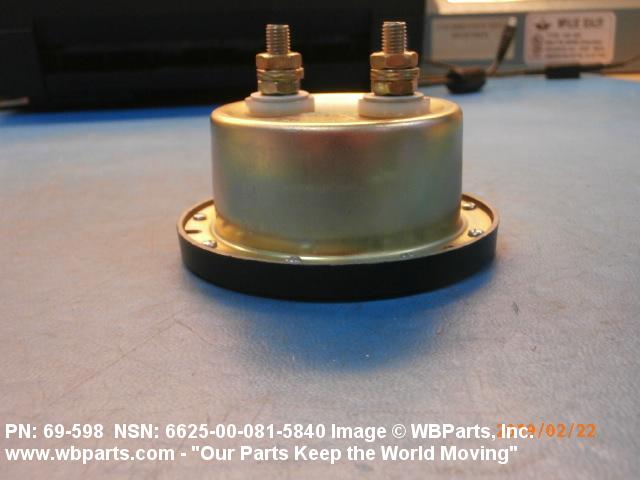

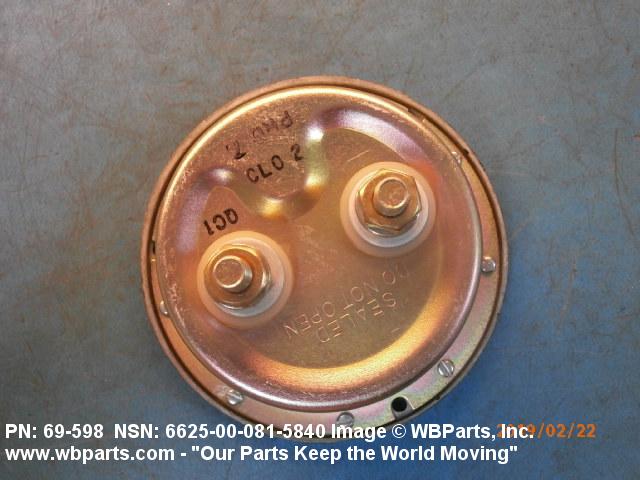

| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 THREADED STUD |
| SCALE SELECTION METHOD | TERMINAL |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| STYLE DESIGNATOR | C1 ROUND FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.800 INCHES NOMINAL |

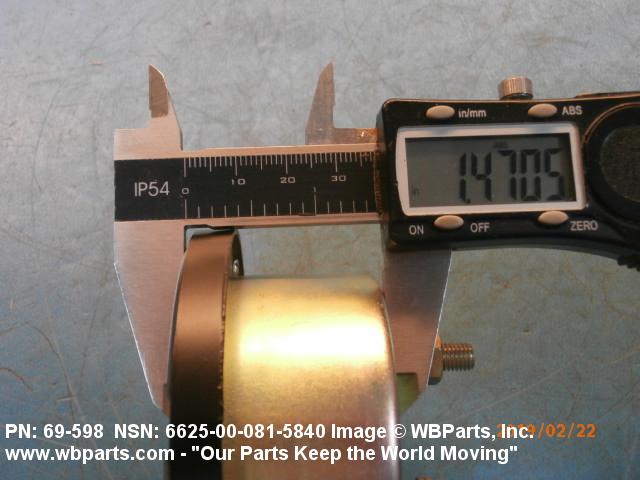

| METER DEPTH BEHIND MOUNTING FLANGE | 1.660 INCHES NOMINAL |

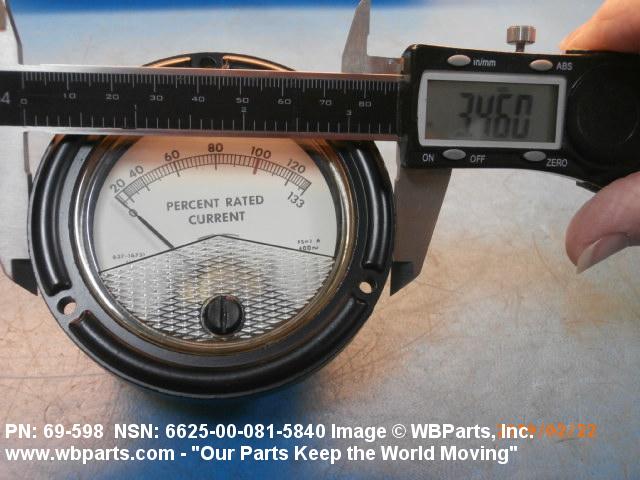

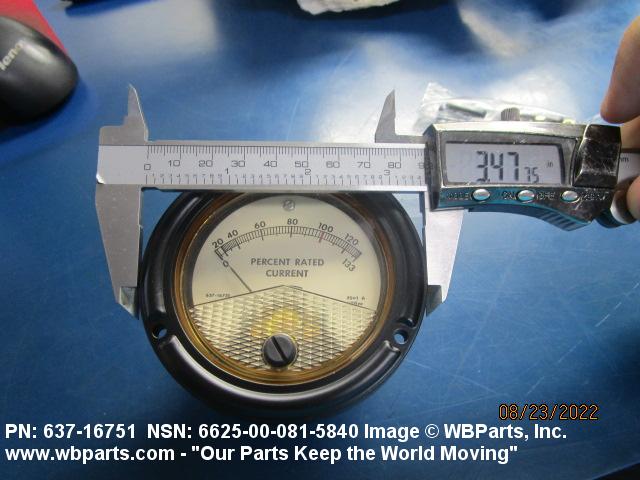

| OVERALL DIAMETER | 3.510 INCHES NOMINAL |

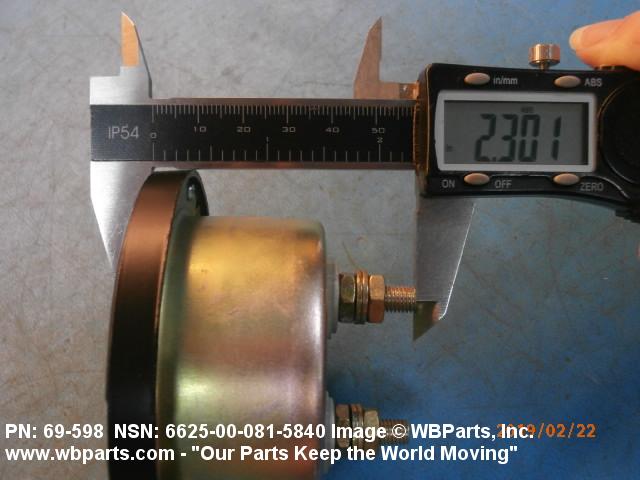

| OVERALL LENGTH | 2.060 INCHES NOMINAL |

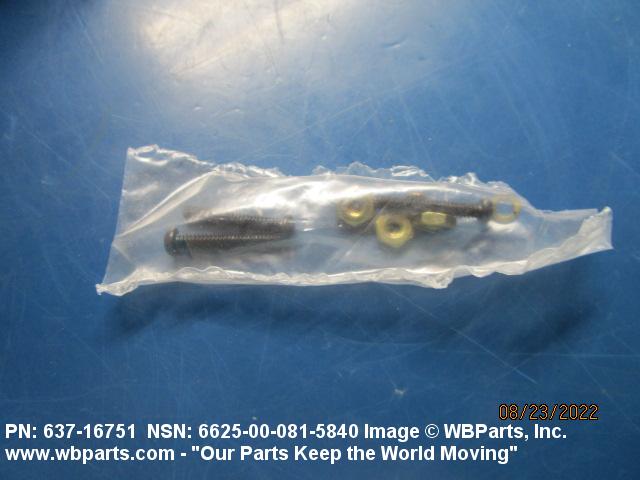

| MOUNTING FACILITY TYPE AND QUANTITY | 3 SCREW AND 3 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.150 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E5 THREE HOLE/STUD BOLT CIRCLE |

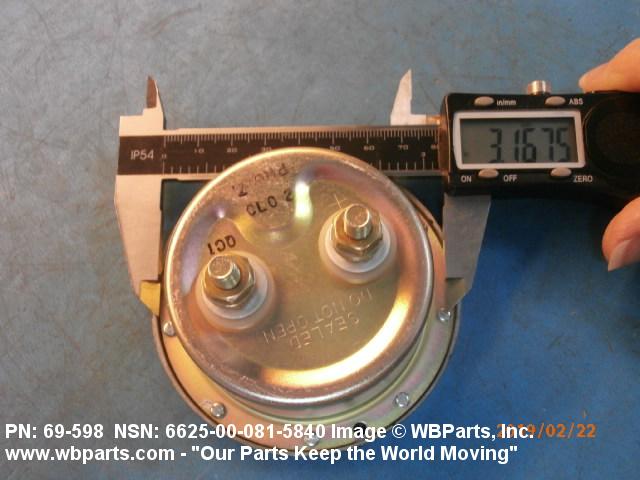

| MOUNTING BOLT CIRCLE DIAMETER | 3.160 INCHES NOMINAL |
| MATERIAL | STEEL |

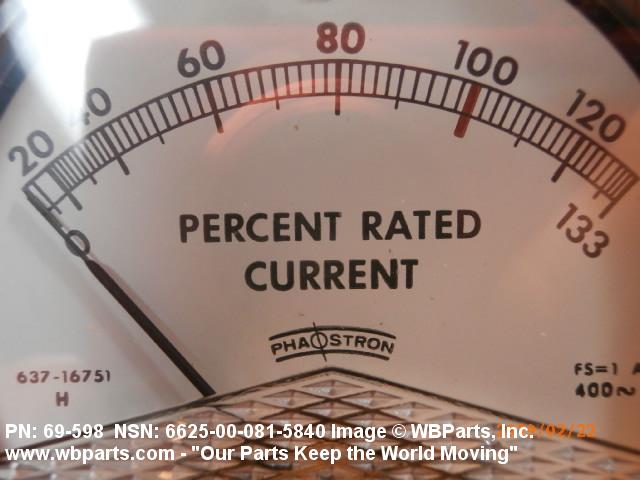

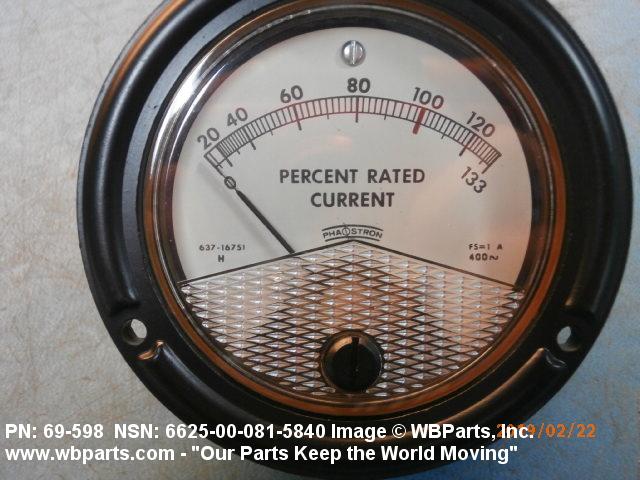

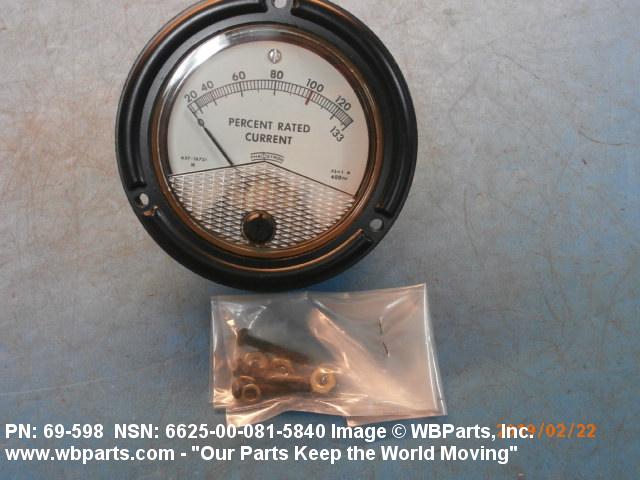

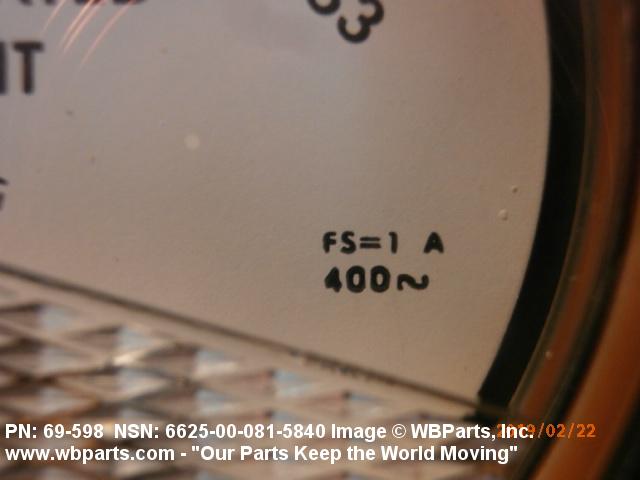

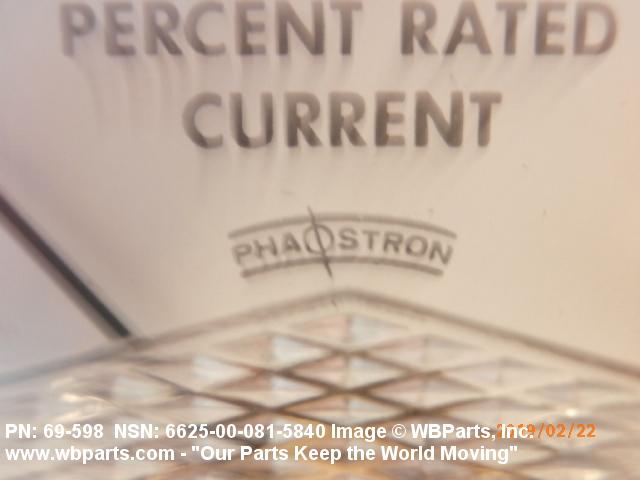

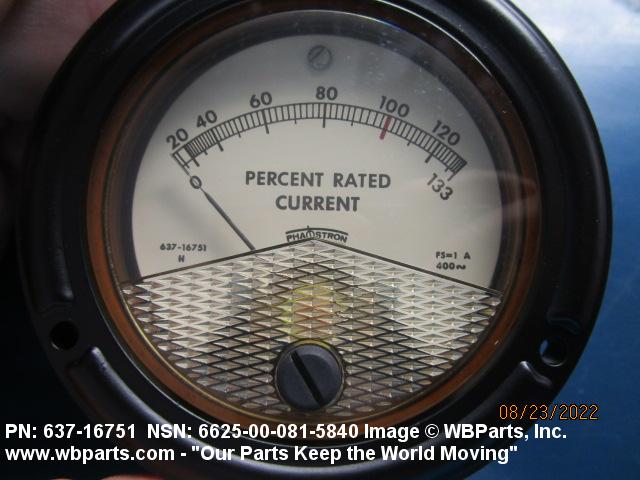

| SPECIAL MARKINGS | DOUBLE WIDTH RED LINE AT 100 PERCENT MARK. MARKED PERCENT RATED CURRENT,FULL SCALE 1 AMP |
| FEATURES PROVIDED | MAGNETIC SHIELD AND ZERO ADJUSTER |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
| III END ITEM IDENTIFICATION | AIRCRAFT STRATOFORTRESS B-52,B-1B |
Restrictions/Controls & Freight Information | NSN 6625-00-081-5840
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
