NSN 6625-00-137-6871 MX4527U, 091671, 839057
Product Details | TEST PROBE-LEAD ASSEMBLY
6625-00-137-6871 A definite length of wire or cable with a CLIP, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; JACK, TELEPHONE; JACK, TIP; PLUG, TIP; or the like on one or both ends and PROBE, TEST on either end but not on both ends. Electronic components, such as capacitors, electron tube, resistors, semiconductor devices, and the like are mounted into and included with the item for attenuation or amplification purposes. May or may not include accessories such as CLIP, ELECTRICAL; PROBE, TEST; TEST PROBE ATTACHMENT. For items without electronic components see, LEAD, TEST. For items designed for direct attachment to a PROBE-LEAD ASSEMBLY, TEST see PROBE, TEST. For items designed for indirect attachment to a PROBE-LEAD ASSEMBLY, TEST see TEST PROBE ATTACHMENT.
Part Alternates: MX4527U, 091671, 839057, 9112F, 9112F2, 91-12F-2, 913A, 91-3A, 913B, 91-3B, 994000, 6625-00-137-6871, 00-137-6871, 6625001376871, 6625009732297, 001376871
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 19 JUL 1971 | 00-137-6871 | 39884 ( PROBE-LEAD ASSEMBLY, TEST ) |

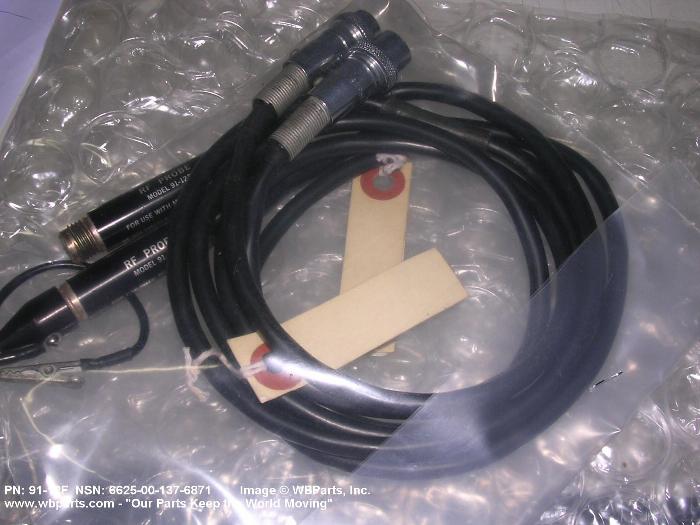

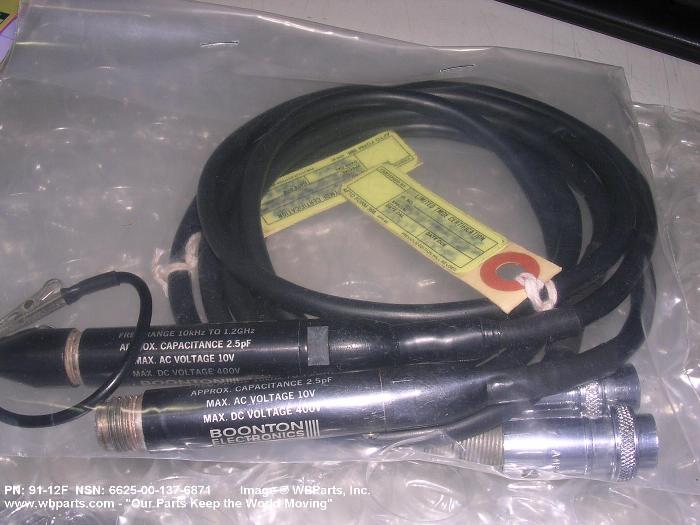

Drawings & Photos | NSN 6625-00-137-6871
Demand History | NSN 6625-00-137-6871
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-137-6871 | 2022-02-54 | 1 | KR |
| 6625-00-137-6871 | 2022-02-54 | 3 | United States |
| 6625-00-137-6871 | 2022-02-35 | 3 | United States |
| 6625-00-137-6871 | 2007-11-333 | 2 | United States |
Cross Reference | NSN 6625-00-137-6871
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 091671 | 04901 | BOONTON ELECTRONICS CORPORATION DIV BOONTON ELECTRONICS |
| 6625009732297 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 839057 | 04901 | BOONTON ELECTRONICS CORPORATION DIV BOONTON ELECTRONICS |
| 839057 | C1834 | KONTRON AG |
| 91-12F-2 | 04901 | BOONTON ELECTRONICS CORPORATION DIV BOONTON ELECTRONICS |
| 91-3A | 04901 | BOONTON ELECTRONICS CORPORATION DIV BOONTON ELECTRONICS |
| 91-3B | 04901 | BOONTON ELECTRONICS CORPORATION DIV BOONTON ELECTRONICS |
| 9112F | 04901 | BOONTON ELECTRONICS CORPORATION DIV BOONTON ELECTRONICS |
| 913B | 04901 | BOONTON ELECTRONICS CORPORATION DIV BOONTON ELECTRONICS |
| 994000 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| MX4527U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-137-6871
Related Products | NSN 6625-00-137-6871
Technical Data | NSN 6625-00-137-6871
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | 2 COPPER CONDUCTORS,NO. 22 AWG,19 STRANDS; INSULATION MATERIALS FROM BARE CONDUCTOR OUT,PLASTIC; COLOR CODED; 1 CLEAR,2 BLACK; 1000 V MAX WORKING; RAYON BRAID TINNED COPPER BRAND SHIELD PLASTIC JACKET; 36 IN. LG O/A; TEST PROBE ON ONE END; TERMINAL FITTING ON THE OTHER END; DETACHABLE FROM ELECTRONIC VOLTMETER |
| SPECIAL TEST FEATURES | MUST BE USED WITH THE SPECIFIC METER WHICH THIS LEAD HAS BEEN CALIBRATED FOR |
| III END ITEM IDENTIFICATION | 6625-01-129-1886 VOLTMETER |
Restrictions/Controls & Freight Information | NSN 6625-00-137-6871
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 6625-00-137-6871
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
