NSN 6625-00-193-0636 MR36W150ACVVR, MIL-M-10304/13, MILM1030413

Product Details | VOLTMETER

6625-00-193-0636 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.

Part Alternates: MR36W150ACVVR, MIL-M-10304/13, MILM1030413, MILM10304C113BMR36W, MILM10304C1-13BMR36W, MIL-PRF-10304/13, MILPRF1030413, 7669114, 1159010, 1164378, 117057, 117-057, 190843, 1908-43, 25341101002, 2534-1101002, 3F815031, 3F8150-31, 409C677A20, 431172, 431-172, 4622500107, 46225-001-07, 476150VAC, 476-150VAC, 6625-00-193-0636, 00-193-0636, 6625001930636, 001930636

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	01 JAN 1963	00-193-0636	16449 ( VOLTMETER )

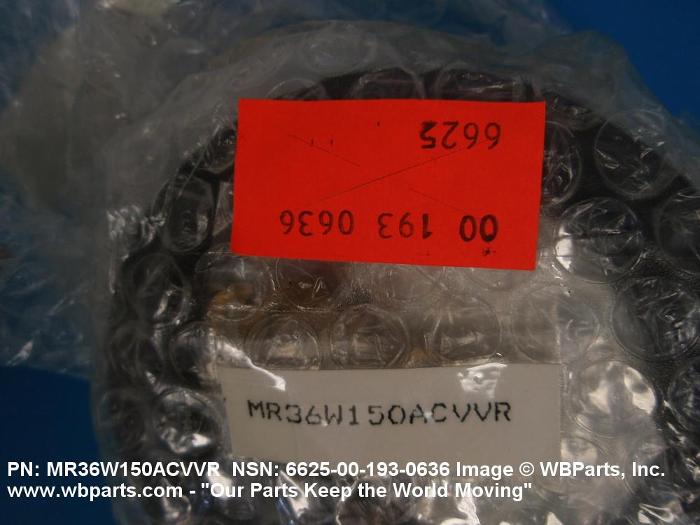

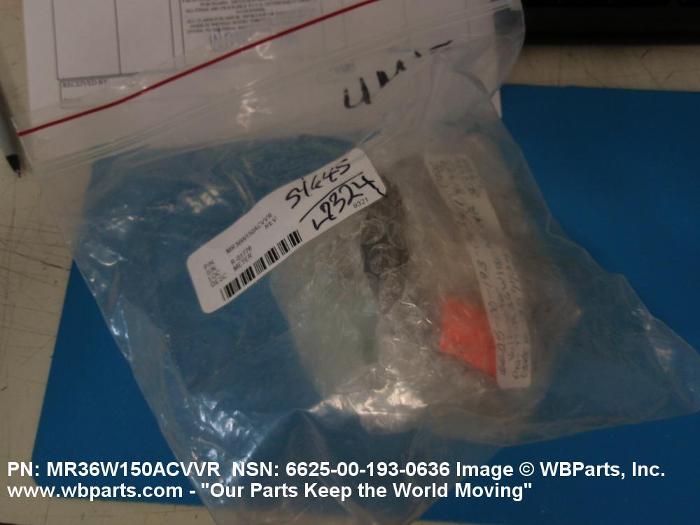

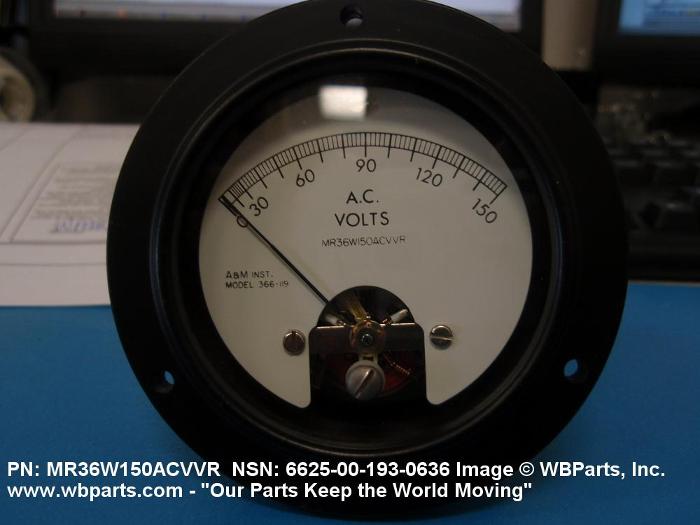

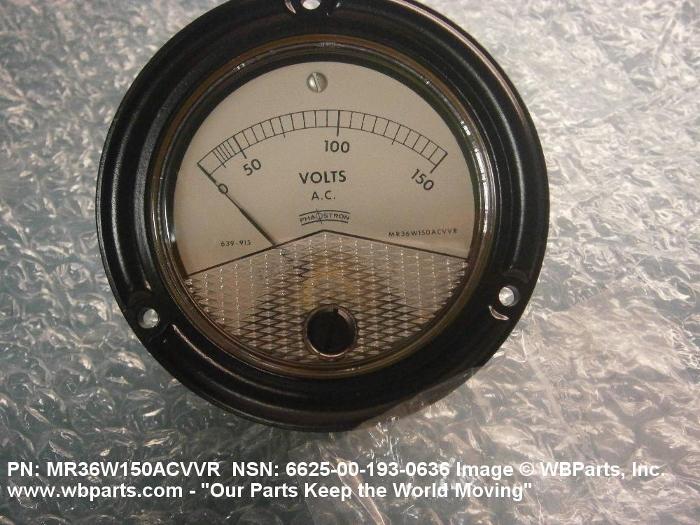

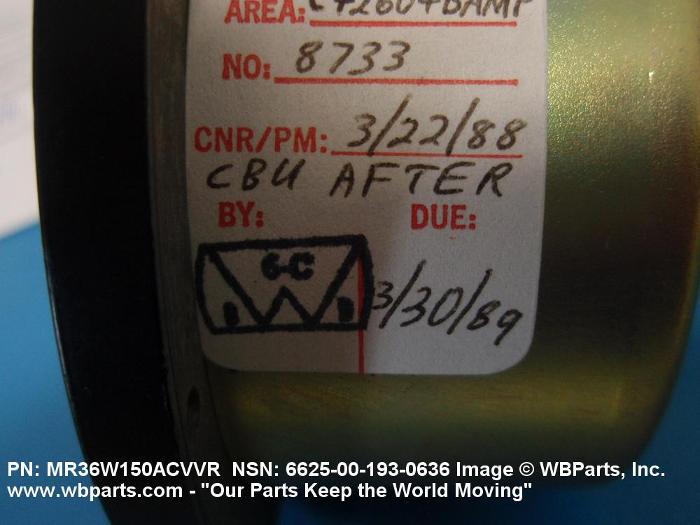

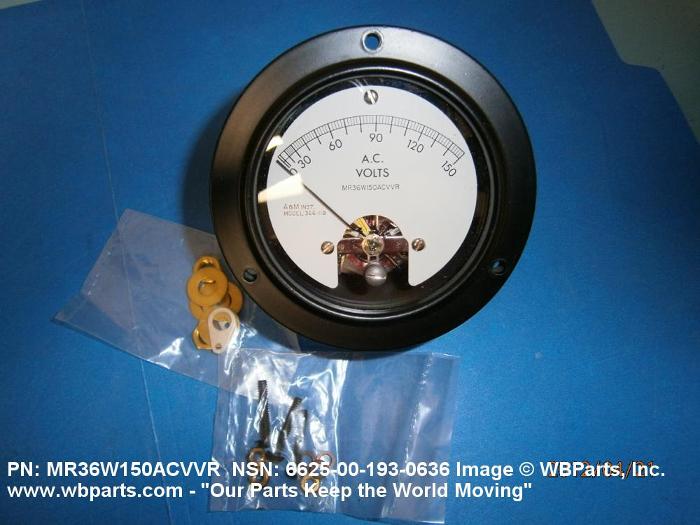

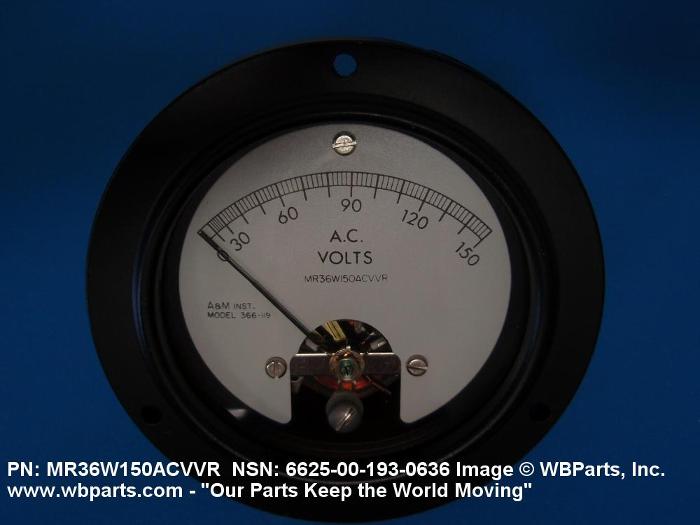

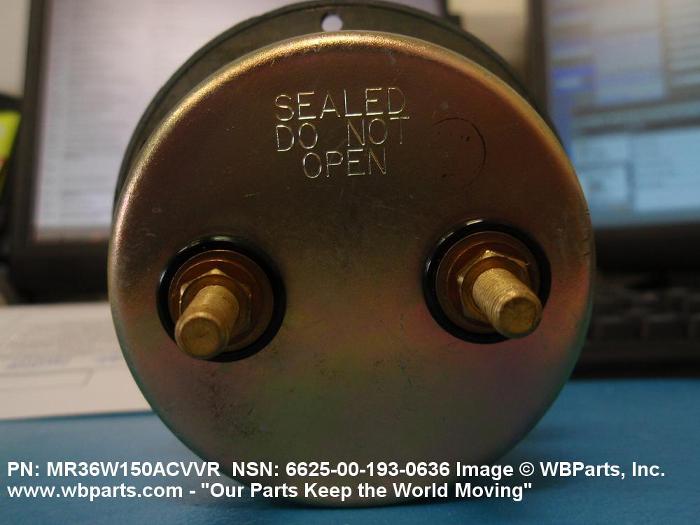

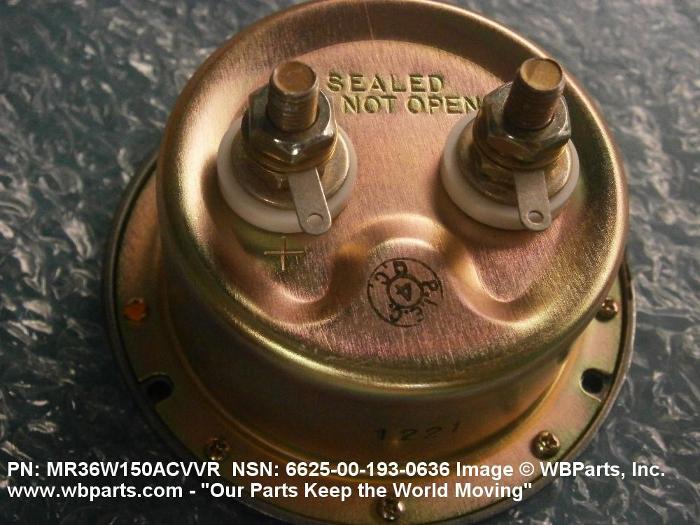

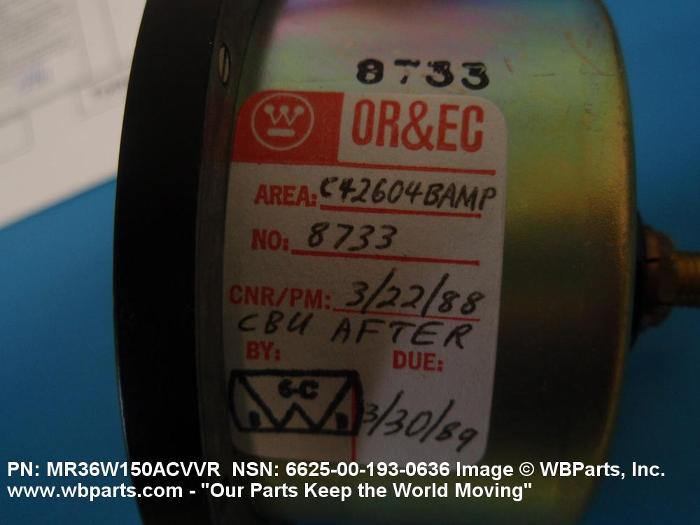

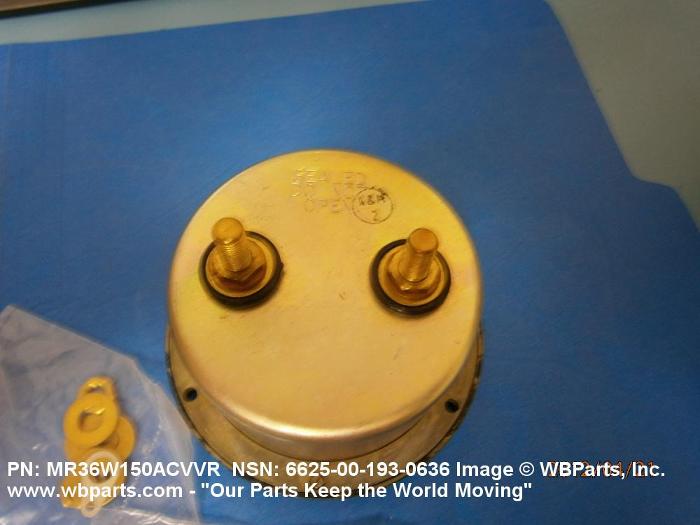

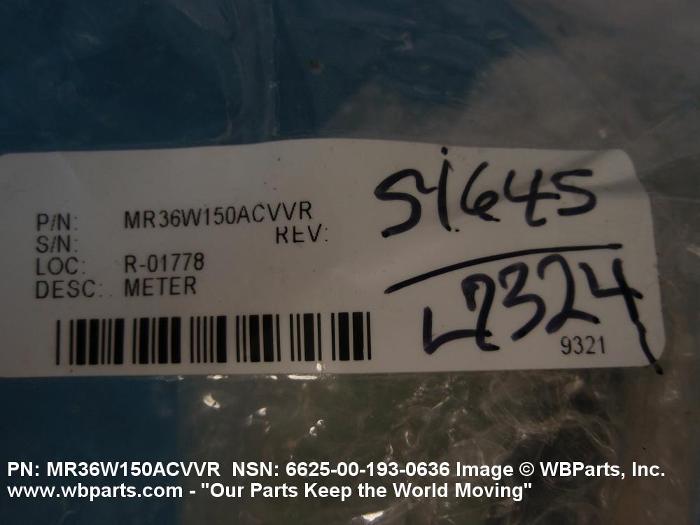

Drawings & Photos | NSN 6625-00-193-0636

Part Number	Request Date	QTY	Origin
6625-00-193-0636	2023-03-83	8	United States
6625-00-193-0636	2022-09-257	8	US
MR36W150ACVVR	2017-08-226	1	United States
MR36W150ACVVR	2013-04-120	1	United States
6625-00-193-0636	2013-04-120	1	United States
6625-00-193-0636	2012-09-263	1	United States
6625-00-193-0636	2012-04-107	2	United States
6625-00-193-0636	2012-04-102	2	United States
6625-00-193-0636	2012-02-57	3	United States
6625-00-193-0636	2012-02-37	3	United States
MR36W150ACVVR	2011-03-62	1	United States
MR36W150ACVVR	2011-03-61	1	United States
MR36W150ACVVR	2011-01-07	5	United States
MR36W150ACVVR	2009-10-300	10	US
MR36W150ACVVR	2009-08-239	10	US
6625-00-193-0636	2007-10-276	1000	DIBBS
6625-00-193-0636	2007-08-228	280	DIBBS
6625-00-193-0636	2007-05-135	299	DIBBS
6625-00-193-0636	2007-04-99	453	DIBBS
6625-00-193-0636	2007-03-64	585	DIBBS
6625-00-193-0636	2007-01-30	69	DIBBS
6625-00-193-0636	2006-11-320	6	Taiwan

Cross Reference | NSN 6625-00-193-0636

Part Number	Cage Code	Manufacturer
1159010	50870	ARNOLD A. SEMLER, INC. DBA ASSOCIATED INDUSTRIES
1159010	79500	WESTINGHOUSE ELECTRIC CORP
1164378	79500	WESTINGHOUSE ELECTRIC CORP
117-057	93568	HARSCO CORP BMY-COMBAT SYSTEMS DIV
1908-43	15309	JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR
2534-1101002	65092	SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV
3F8150-31	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
409C677A20	79500	WESTINGHOUSE ELECTRIC CORP
431-172	088A2	C SYSTEMS LLC DBA CRAIG SYSTEMS
46225-001-07	31245	TEREX USA, LLC DBA CEDARAPIDS
476-150VAC	65092	SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV
7669114	19200	US ARMY ARDEC RDECOM
MIL-M-10304/13	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-10304/13	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILM10304C1-13BMR36W	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MR36W150ACVVR	77211	MACHINE PARTS CORPORATION
MR36W150ACVVR	77221	PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY
MR36W150ACVVR	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6625-00-193-0636

Compare

Related Products | NSN 6625-00-193-0636

6625-00-193-0663, 6625-00-193-0668, 6625-00-193-0676, 6625-00-193-0689, 6625-00-193-0694

Technical Data | NSN 6625-00-193-0636

Characteristic	Specifications
INSTALLATION DESIGN	PANEL
INDICATOR TYPE	DIAL W/POINTER

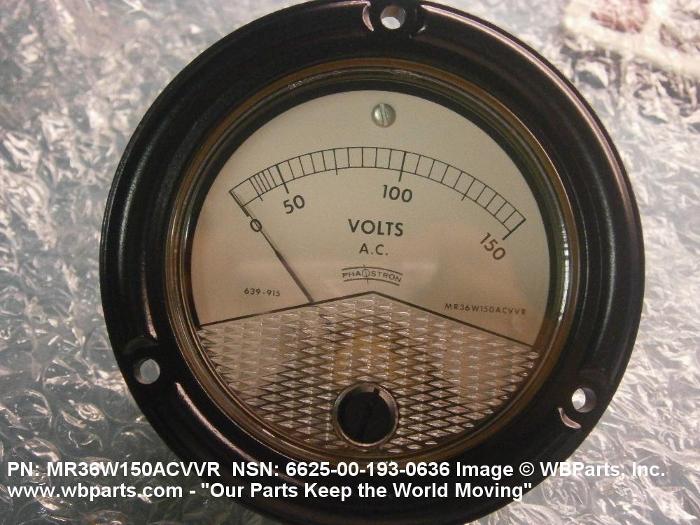

MEASUREMENT RANGE	0.0 TO 150.0 VOLTS, AC SINGLE INDICATOR SINGLE RANGE
ACCURACY IN PERCENT	-2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE
SCALE GRADUATION TYPE	LINEAR SINGLE INDICATOR SINGLE RANGE
SCALE DIVISION QUANTITY	75 SINGLE INDICATOR SINGLE RANGE
POINTER COLOR	BLACK SINGLE INDICATOR SINGLE RANGE
DIAL SCALE MARKING COLOR	BLACK SINGLE INDICATOR SINGLE RANGE
BACKGROUND COLOR	WHITE SINGLE INDICATOR SINGLE RANGE
MOVEMENT TYPE	MOVING COIL, PERMANENT MAGNET
MOVEMENT SUSPENSION METHOD	JEWEL PIVOT BASE
FREQUENCY RESPONSE RANGE	25.000 TO 125.000 HERTZ
CIRCUIT ATTACHMENT METHOD AND QUANTITY	2 THREADED STUD
POWER SOURCE	EXTERNAL
CIRCUIT CURRENT FOR WHICH DESIGNED	AC
STYLE DESIGNATOR	C1 ROUND FLUSH MTG
METER BODY DIAMETER BEHIND MOUNTING FLANGE	2.800 INCHES MAXIMUM
METER DEPTH BEHIND MOUNTING FLANGE	1.660 INCHES MAXIMUM
OVERALL DIAMETER	3.510 INCHES MAXIMUM
OVERALL LENGTH	2.850 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	3 UNTHREADED HOLE
MOUNTING HOLE DIAMETER	0.187 INCHES NOMINAL
MOUNTING ARRANGEMENT STYLE	E5 THREE HOLE/STUD BOLT CIRCLE
MOUNTING BOLT CIRCLE DIAMETER	3.156 INCHES NOMINAL
MATERIAL	PLASTIC AND STEEL
ENVIRONMENTAL PROTECTION	AIRTIGHT AND DUST RESISTANT AND FUNGUS RESISTANT AND HEAT RESISTANT AND HUMIDITY RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT AND WATER RESISTANT

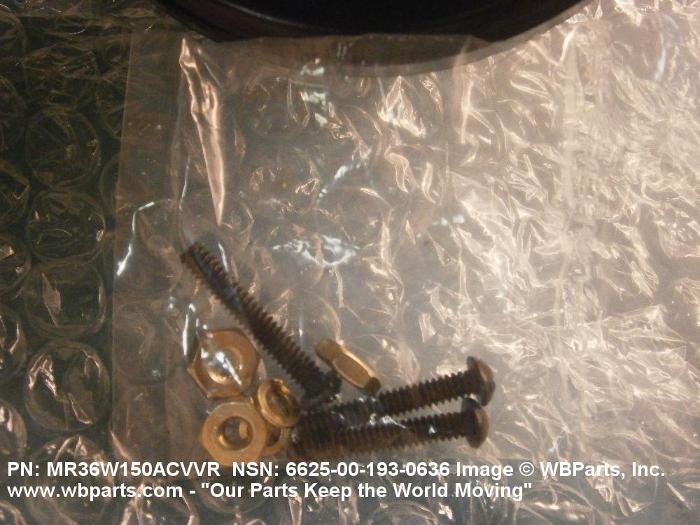

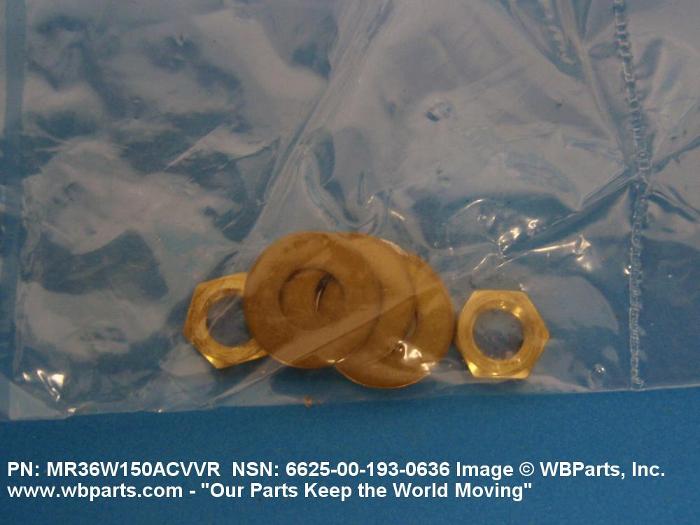

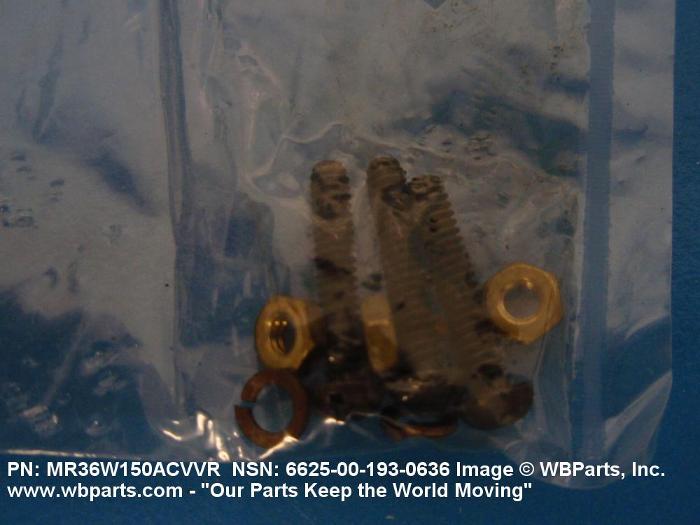

FURNISHED ITEMS AND QUANTITY	N0.6 SCREWS 0.500 IN. L 3
SPECIAL FEATURES	RUGGEDIZED
TEST DATA DOCUMENT	81349-MIL-M-10304 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-M-10304/13 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-10304/13
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MR36W150ACVVR

Restrictions/Controls & Freight Information | NSN 6625-00-193-0636

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	136740	METERS ELEC/PARTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	657	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6625-00-193-0636

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	S	Surveillance Target Acquisition and Night Observation (STANO)
Weapons Systems/End Item or Homogeneous Group	SG	Infra-Red
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	TG	TG:AF SICA RESIDUAL MMAC-WR-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
