NSN 6625-00-322-5154 45087AND33316, 00-322-5154, 003225154
Product Details | ELECTRICAL METER HOUSING
6625-00-322-5154 The outer component of an electrical meter designed to inclose, support and/or protect the meter mechanism. May include a window and/or provisions for adjusting the meter pointer. For items which inclose the complete functioning meter, see CASE, METER.
Part Alternates: 45087AND33316, 6625-00-322-5154, 00-322-5154, 6625003225154, 003225154
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 00-322-5154 | 13601 ( HOUSING, ELECTRICAL METER ) |
Drawings & Photos | NSN 6625-00-322-5154
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-322-5154
Technical Data | NSN 6625-00-322-5154
| Characteristic | Specifications |
|---|---|
| ADJUSTABLE POINTER | NOT PROVIDED |
| MATERIAL | METAL |
| SURFACE TREATMENT | ZINC PLATED |

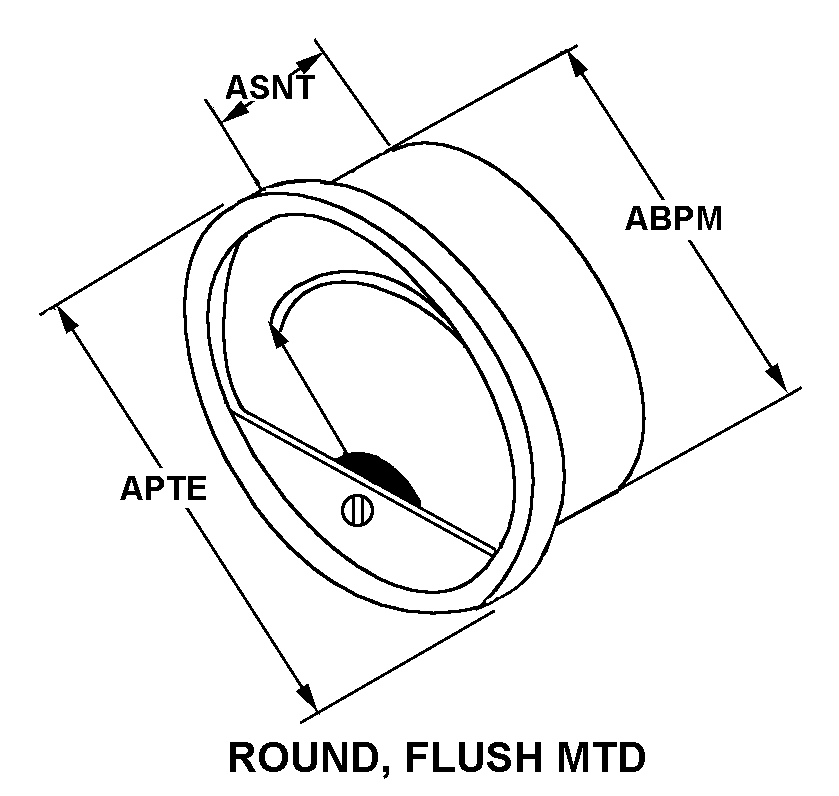

| STYLE DESIGNATOR | B14 ROUND, FLUSH MTD |
| BODY DIAMETER | 2.812 INCHES NOMINAL |
| MOUNTING FLANGE DIAMETER | 3.500 INCHES NOMINAL |
| DEPTH TO MOUNTING FLANGE | 3.437 INCHES NOMINAL |
| MOUNTING CONFIGURATION | SIZ 0.203 IN. DIA MTG HOLES EQUALLY SPACED ON A 1.580 IN. RADIUS |
| INSULATING RING | NOT PROVIDED |
| RETAINING RING | NOT PROVIDED |
| AUXILIARY ILLUMINATION WINDOW | NOT PROVIDED |
| MANUFACTURERS CODE | 32242 |
| DESIGN CONTROL REFERENCE | 45087AND33316 |
Restrictions/Controls & Freight Information | NSN 6625-00-322-5154
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
