NSN 6625-00-404-5761 627X27, 00-404-5761, 004045761
Product Details | WATTHOUR METER
6625-00-404-5761 An instrument which indicates the power consumed in an electric circuit over a period of time, and which for normal indication is calibrated in watthours or any multiple thereof. May include a demand element.
Part Alternates: 627X27, 6625-00-404-5761, 00-404-5761, 6625004045761, 004045761
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 06 AUG 1969 | 00-404-5761 | 00791 ( METER, WATTHOUR ) |
Drawings & Photos | NSN 6625-00-404-5761
Cross Reference | NSN 6625-00-404-5761
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 627X27 | 03516 | GENERAL ELECTRIC CO METER BUSINESS DEPT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-404-5761
Technical Data | NSN 6625-00-404-5761
| Characteristic | Specifications |
|---|---|
| MOUNTING TYPE | WALL |
| INDICATION TYPE | NORMAL |
| VOLTAGE RATING | 120.0 VOLTS NOMINAL |
| CURRENT RATING IN AMPS | 15.0 |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE |
| WIRE QUANTITY | 2 |
| ELEMENT QUANTITY | 1 |

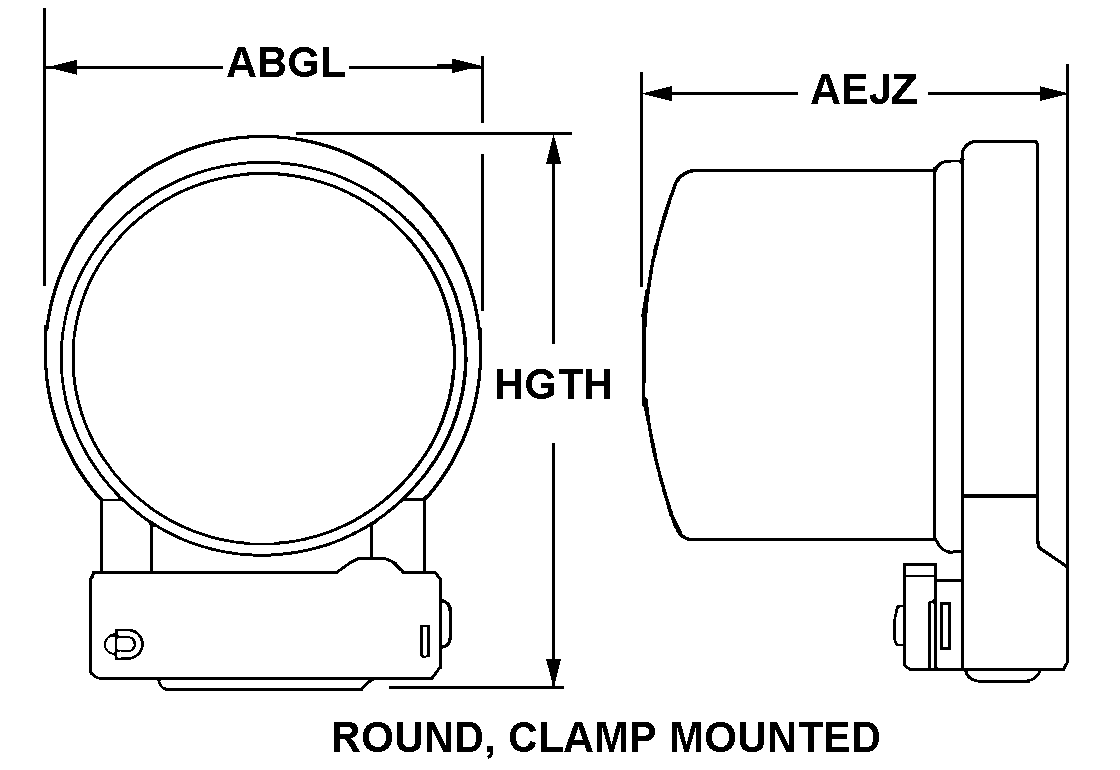

| CASE STYLE | A2 ROUND, CLAMP MOUNTED |
| WIDTH | 6.375 INCHES NOMINAL |
| DEPTH | 4.609 INCHES NOMINAL |
| HEIGHT | 8.188 INCHES NOMINAL |
| CASE COVER SHAPE | CONVEX |
| CASE COVER MATERIAL | GLASS |
| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | SCREW |
| TERMINAL LOCATION | IN SIDE BOTTOM OF CASE |
| MOUNTING CONFIGURATION | BY HANGER BRACKETS |
| REGISTER MAXIMUM MEASUREMENT | 9.999 KILOWATT-HOUR |
| BEARING TYPE | JEWEL |
Restrictions/Controls & Freight Information | NSN 6625-00-404-5761
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
