NSN 6625-00-538-9047 MK777288, MK777-288, JBTA23FHXX
Product Details | ELECTRICAL FREQUENCY METER
6625-00-538-9047 An instrument which measures the rate of regularly recurring variations in an electric current or voltage and is usually calibrated in Hertz (cycles per second or CPS). The value may be expressed by means of a pointer and calibrated dial vibrating reed or a digital read out display. For instruments which measure radio frequencies, see CALIBRATOR, FREQUENCY; and WAVEMENTER. Excludes: COUNTER ELECTRONIC DIGITAL.
Part Alternates: MK777288, MK777-288, JBTA23FHXX, JBTA23-FHXX, 9072865, 9192628, 23FHXX, 6625-00-538-9047, 00-538-9047, 6625005389047, 005389047
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-538-9047 | 16454 ( METER, ELECTRICAL FREQUENCY ) |

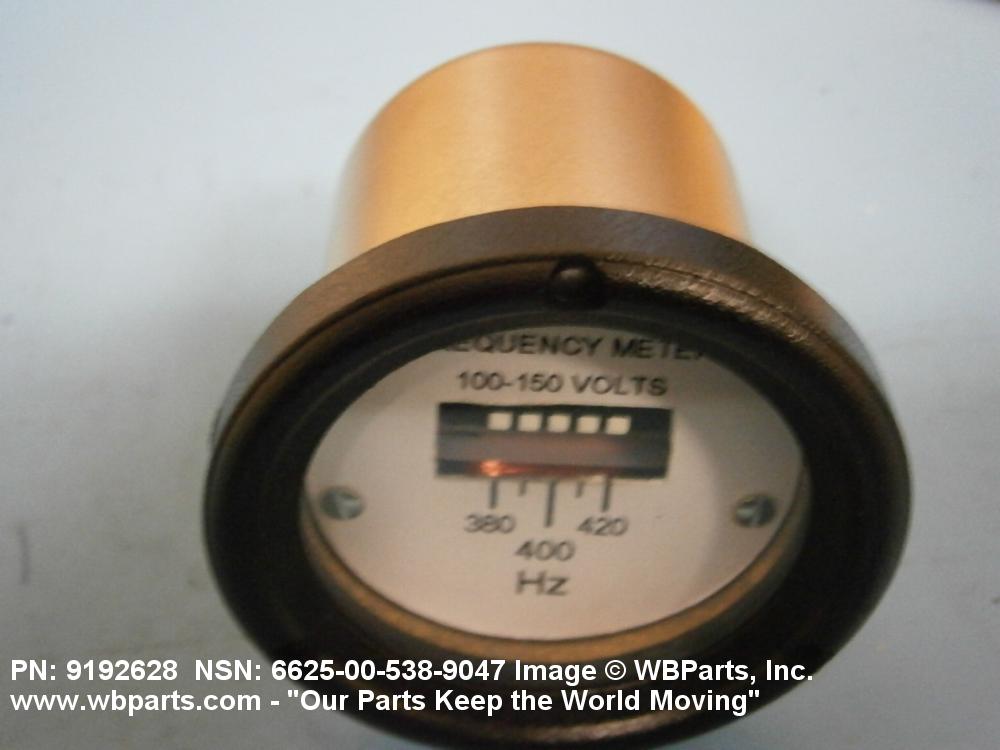

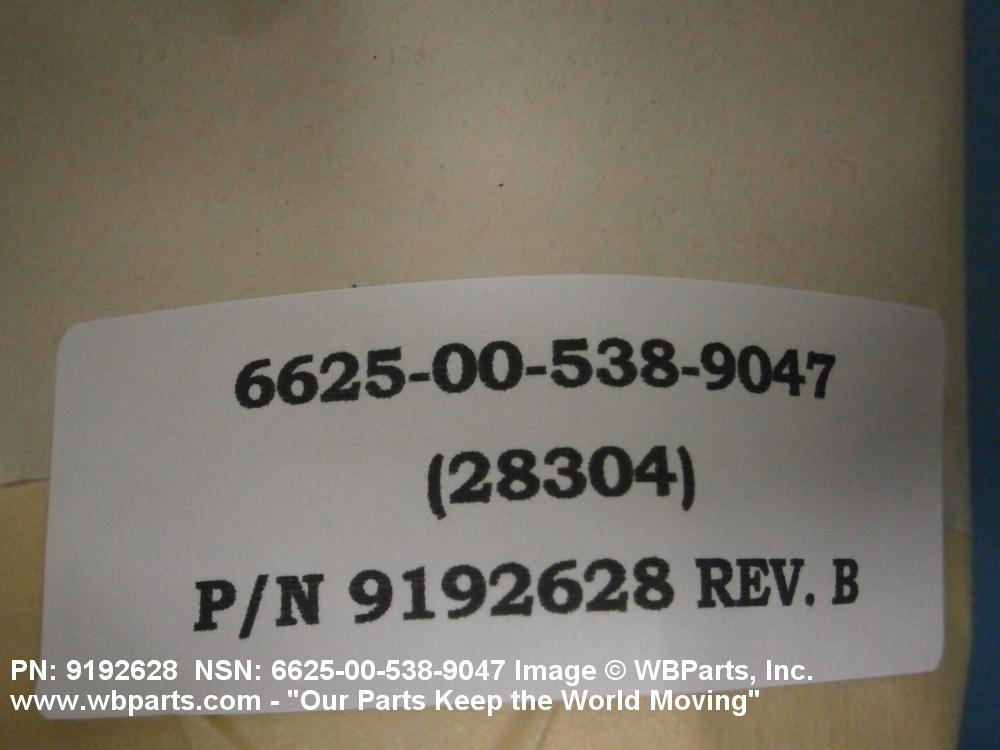

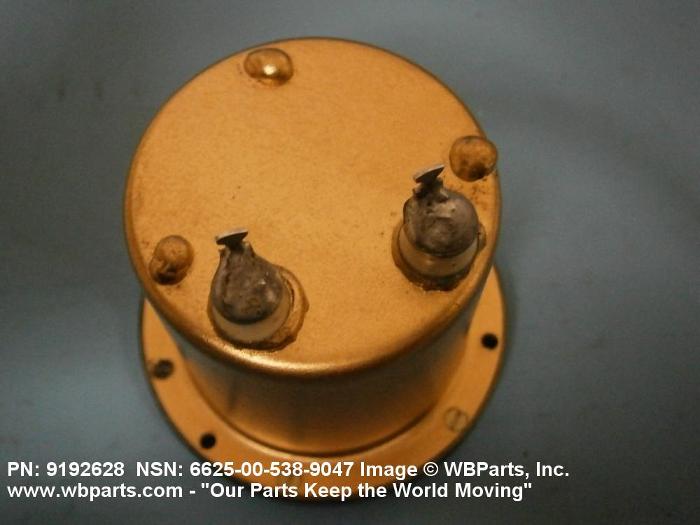

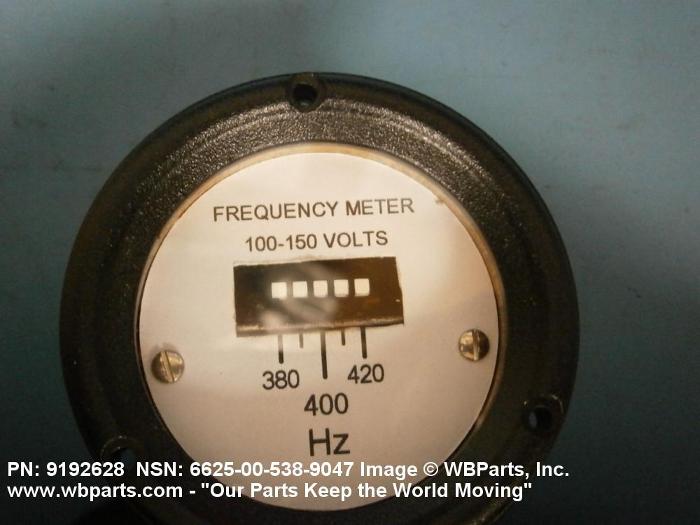

Drawings & Photos | NSN 6625-00-538-9047
Demand History | NSN 6625-00-538-9047
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-538-9047 | 2016-02-32 | 5 | DIBBS |
| 6625-00-538-9047 | 2016-01-19 | 5 | DIBBS |
| 6625-00-538-9047 | 2015-12-348 | 1 | DIBBS |
| 6625-00-538-9047 | 2015-03-69 | 2 | DIBBS |
| 6625-00-538-9047 | 2014-03-64 | 2 | DIBBS |
| 6625-00-538-9047 | 2014-02-49 | 2 | DIBBS |
| MK777288 | 2011-11-334 | 3 | United States |
| 9192628 | 2011-06-173 | 3 | United States |
| 6625-00-538-9047 | 2007-07-209 | 2 | DIBBS |
| 6625-00-538-9047 | 2007-02-55 | 2 | DIBBS |
| 6625-00-538-9047 | 2006-05-145 | 5 | DIBBS |
Cross Reference | NSN 6625-00-538-9047
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-538-9047
Related Products | NSN 6625-00-538-9047
Technical Data | NSN 6625-00-538-9047
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC OR NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | VIBRATING REED |
| MEASUREMENT RANGE | 380.0 TO 420.0 HERTZ SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -0.3 TO 0.3 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | VIBRATING REED |
| REGISTER QUANTITY | 1 |
| RESONANT REED QUANTITY | 5 |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 THREADED STUD |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 1000.0 |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| STYLE DESIGNATOR | C1 ROUND FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.125 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.844 INCHES NOMINAL |
| OVERALL DIAMETER | 2.688 INCHES NOMINAL |
| OVERALL LENGTH | 2.625 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E5 THREE HOLE/STUD BOLT CIRCLE |
| MOUNTING BOLT CIRCLE DIAMETER | 2.440 INCHES NOMINAL |
| MATERIAL | PLASTIC PHENOL-FORMALDEHYDE |
| SURFACE TREATMENT | ENAMEL |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | WATERPROOF |

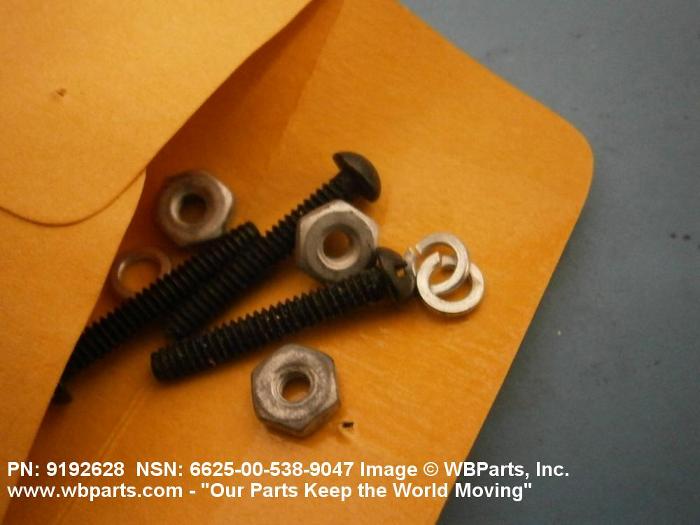

| FURNISHED ITEMS AND QUANTITY | MTG HDW 3; TERM. HDW 2 |
| SPECIAL FEATURES | REEDS HAVE HIGH Q CHARACTERISTICS; HERMETICALLY SEALED; 100 TO 130 OPERATING VOLTAGE |
| III SUPPLEMENTARY FEATURES | TEMPERATURE COMPENSATIONS NOT REQUIRED |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
Restrictions/Controls & Freight Information | NSN 6625-00-538-9047
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
