NSN 6625-00-720-2854 MS915875, MS91587-5, MSB401
Product Details | INSTRUMENT SHUNT
6625-00-720-2854 A fixed precision resistor consisting of a bar or bars of metal specifically designed for use in parallel with a basic direct current instrument to permit determination of current values exceeding the actual range of the instrument itself.
Part Alternates: MS915875, MS91587-5, MSB401, MLB40050, MLB400-50, A-A-55524/2, AA55524/2-005, AA555242, AA555242005, L01541, MILS61, MIL-S-61, 6625-00-720-2854, 00-720-2854, 6625007202854, 007202854, 136403108
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-720-2854 | 00122 ( SHUNT, INSTRUMENT ) |

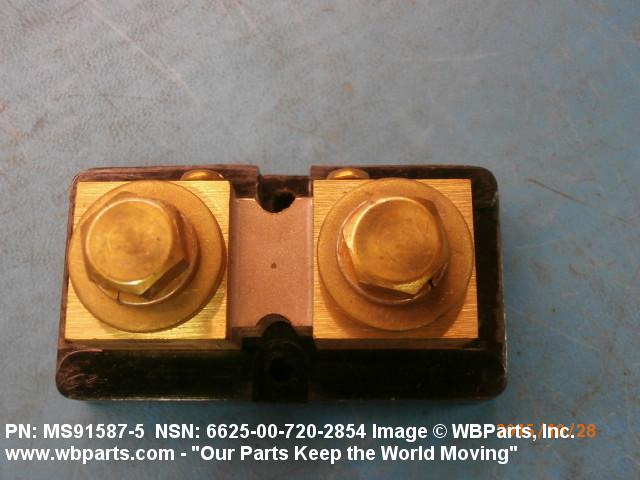

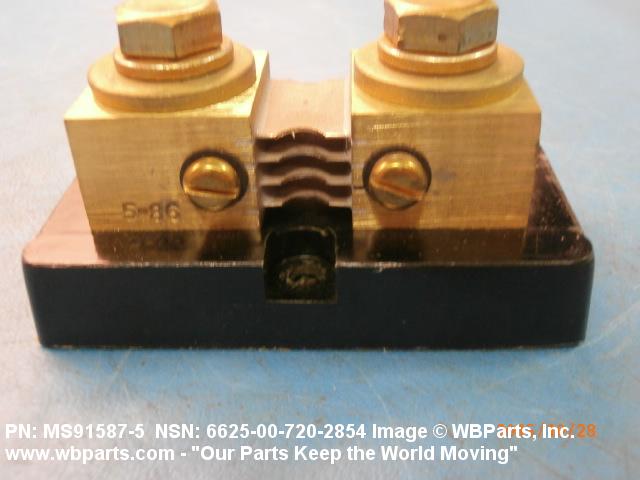

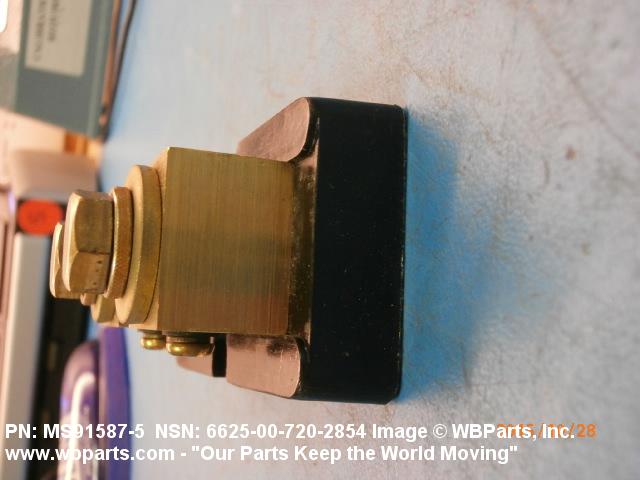

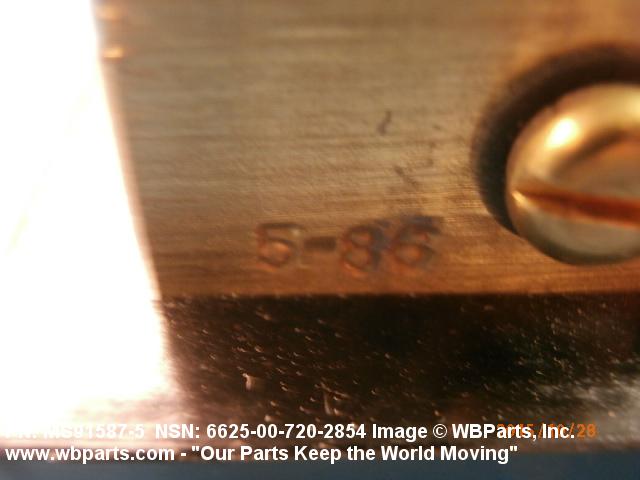

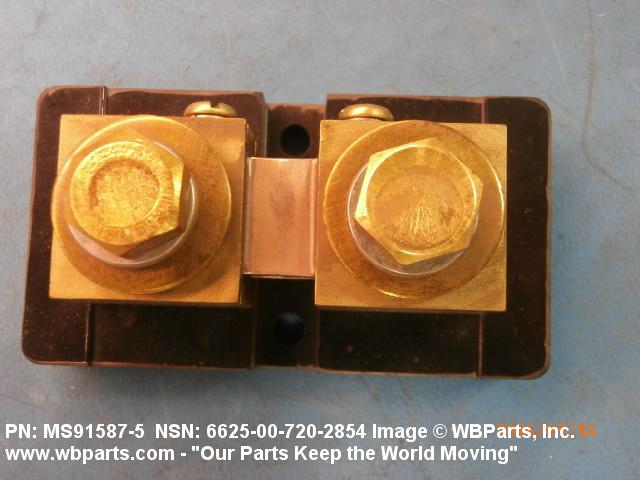

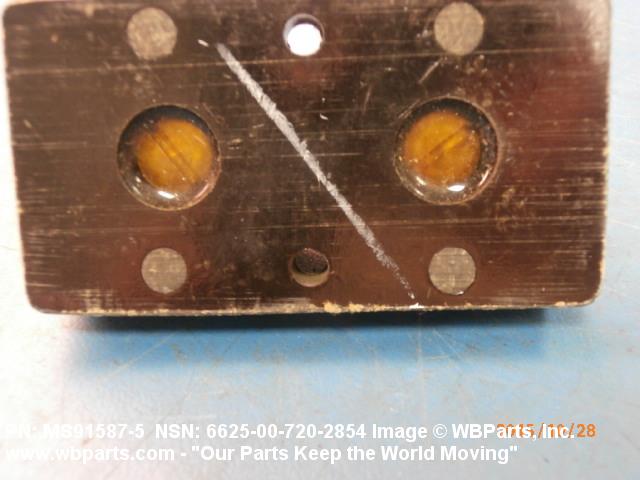

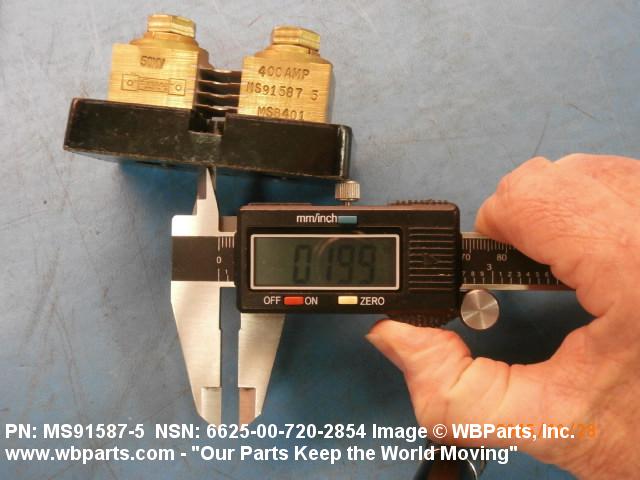

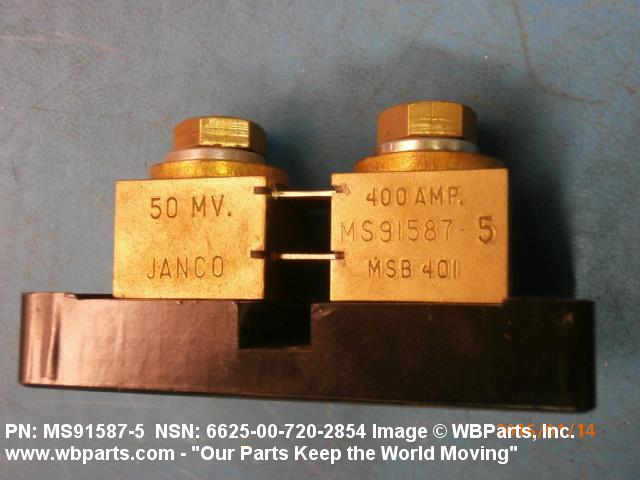

Drawings & Photos | NSN 6625-00-720-2854
Demand History | NSN 6625-00-720-2854
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AA555242005 | 2025-11-314 | 2 | United States |
| 6625-00-720-2854 | 2024-11-311 | 6 | CA |
| 6625-00-720-2854 | 2024-04-100 | 3 | us |
| 6625-00-720-2854 | 2022-08-217 | 1 | TW |
| MS915875 | 2016-04-105 | 8 | United States |
| MS915875 | 2016-01-11 | 2 | United States |
| 6625-00-720-2854 | 2015-10-296 | 2 | United States |
| MS915875 | 2015-10-293 | 2 | United States |
| 6625-00-720-2854 | 2010-10-288 | 34 | DIBBS |
| MLB40050 | 2006-07-187 | 0 | US |
| MS915875 | 2006-07-187 | 2 | US |
| MSB401 | 2006-07-187 | 3 | US |
Cross Reference | NSN 6625-00-720-2854
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 136403108 | 31795 | EATON CORPORATION |
| A-A-55524/2 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA55524/2-005 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| L01541 | 16236 | DLA LAND AND MARITIME |
| MIL-S-61 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MLB400-50 | 03030 | EMPRO MANUFACTURING CO INC DIV EMPRO MANUFACTURING CO., INC. |
| MS91587-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MSB401 | 80049 | DEPARTMENT OF THE AIR FORCE |
| MSB401 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MSB401 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-720-2854
Related Products | NSN 6625-00-720-2854
Technical Data | NSN 6625-00-720-2854
| Characteristic | Specifications |
|---|---|
| VOLTAGE DROP IN MILLIVOLTS | 50.0 NOMINAL |
| CURRENT RATING AND TYPE | 400.0 AMPERES NOMINAL DC |
| USAGE DESIGN | EXTERNAL |
| ELEMENT MATERIAL | COPPER-MANGANESE-NICKEL ALLOY |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| TERMINAL LOCATION | BOTH SIDES |
| ACCURACY IN PERCENT | -0.5 TO 0.5 AT FULL SCALE |

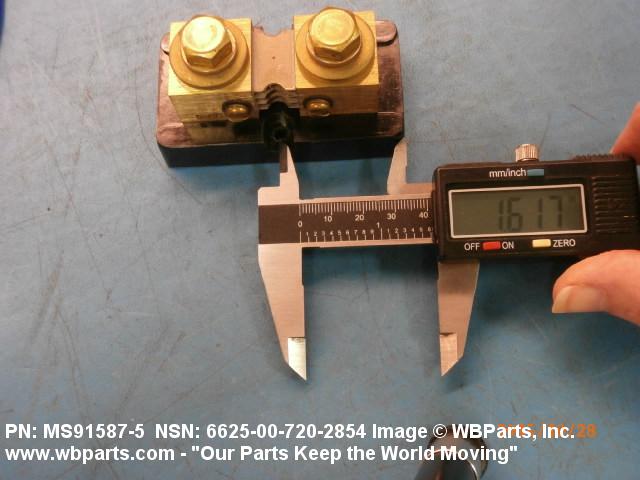

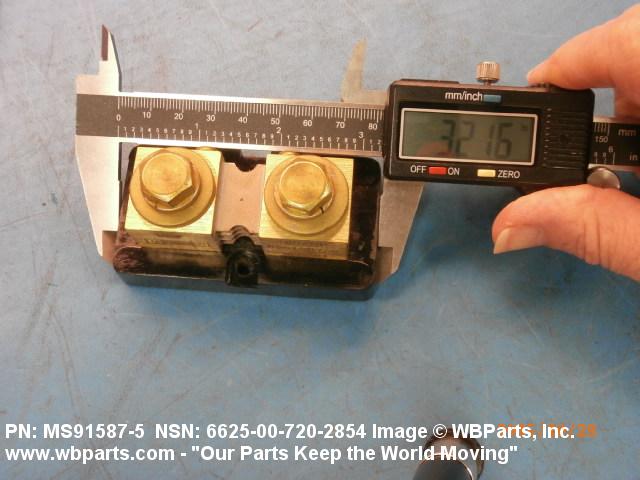

| OVERALL LENGTH | 3.250 INCHES NOMINAL |

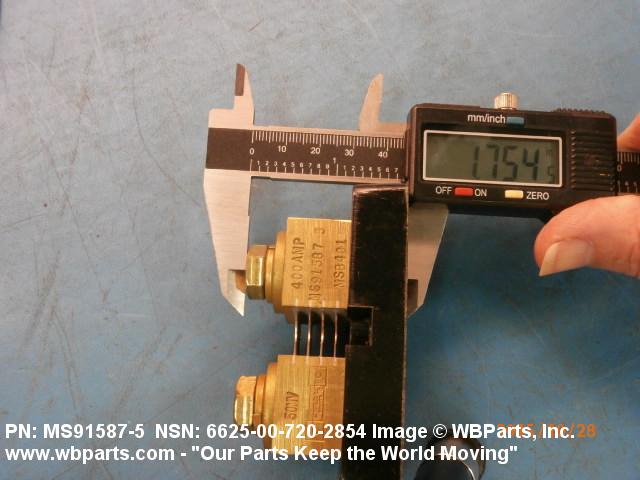

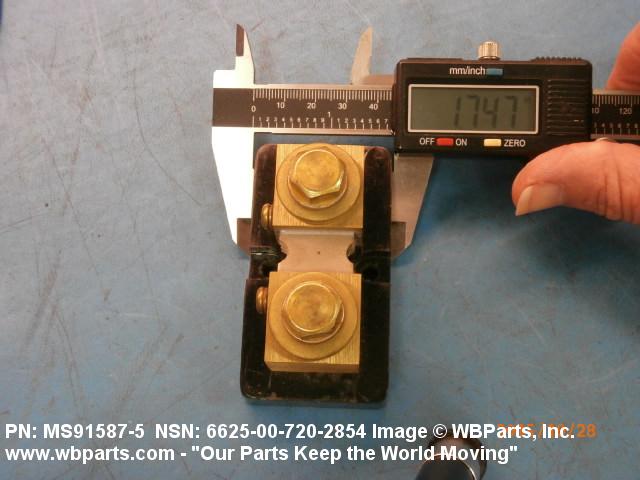

| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.750 INCHES NOMINAL |

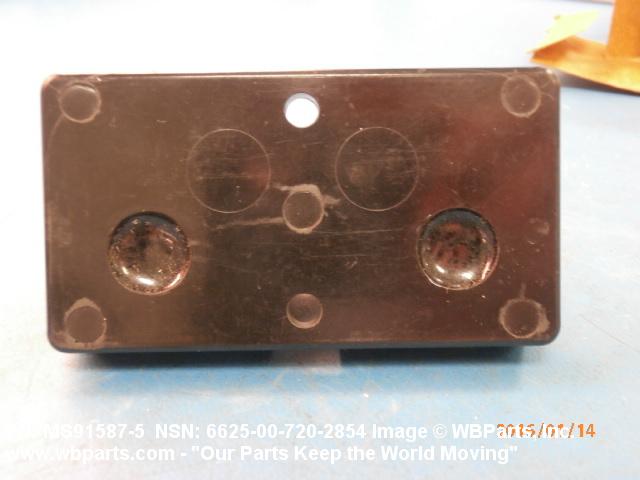

| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING PROVISION QUANTITY | 2 |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.205 INCHES NOMINAL |

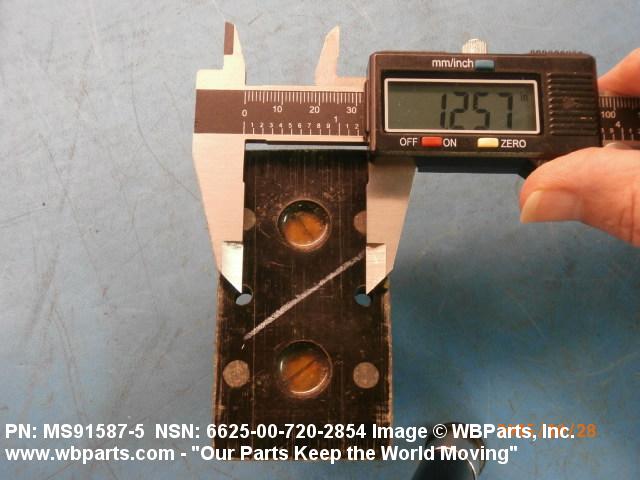

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.250 INCHES NOMINAL |
| FURNISHED ITEMS AND QUANTITY | PLAIN WASHER 4; BRASS WASHER 2 |

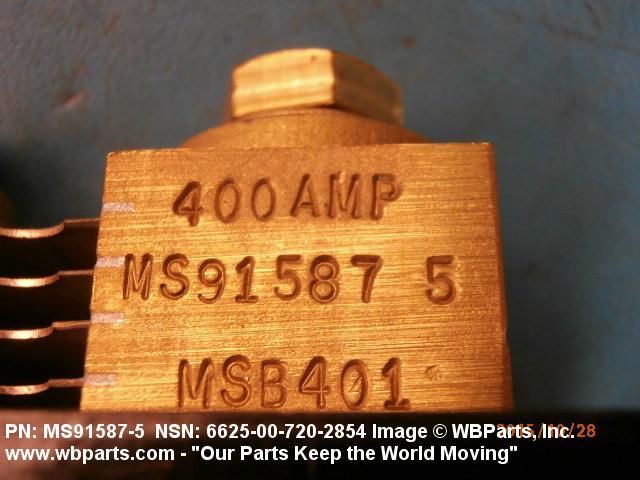

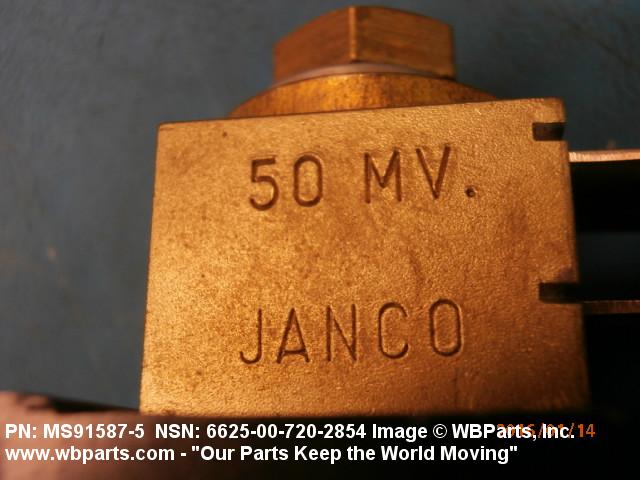

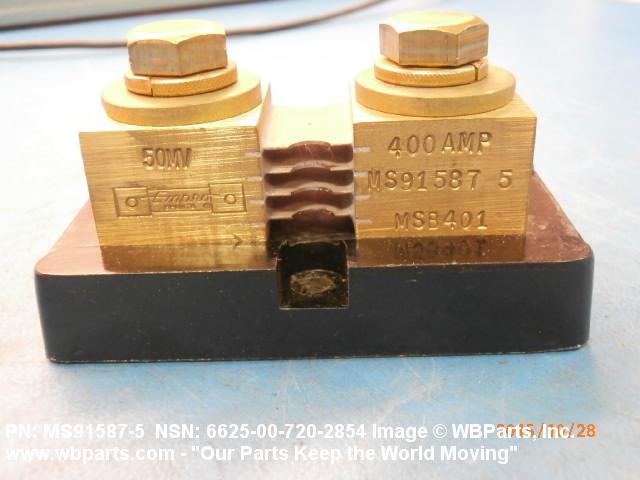

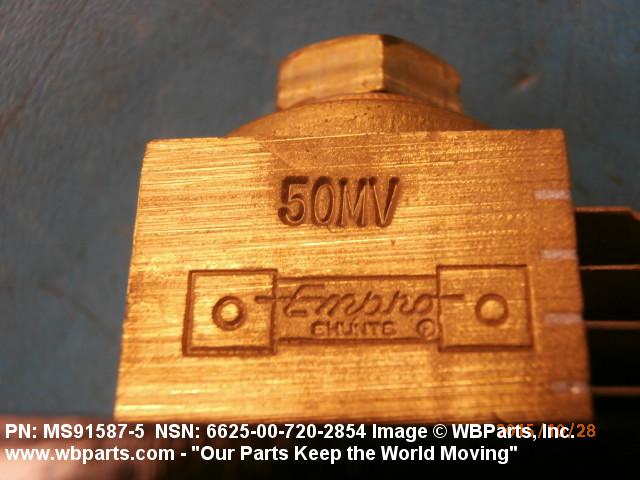

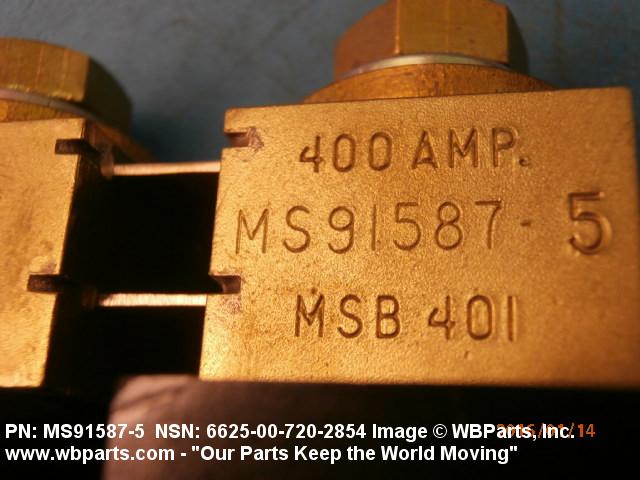

| SPECIAL MARKINGS | 50 MV,400 AMP |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| TEST DATA DOCUMENT | 58536-A-A-55524 SPECIFICATION |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIFICATION/STANDARD DATA | 58536-A-A-55524/2 GOVERNMENT SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III CUBIC MEASURE | 9.953 CUBIC INCHES |
| III FSC APPLICATION DATA | ELECTRICAL,ELECTRONIC PROPERTIES MEASURING AND TEST INSTRUMENTS |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-55524/2 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA55524/2-005 |
Restrictions/Controls & Freight Information | NSN 6625-00-720-2854
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-00-720-2854
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | G | Communications and Electronics Equipment, Electronics Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | T | Other Electronics Equipment |
| Weapons Systems/End Item or Homogeneous Group | TD | Test Equip |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | N | RESTRICTED REQUISITIONING-DISPOSAL (Service/Agency use only.) # Discontinued items no longer authorized for issue except on the specific approval of the Service inventory manager. Requisitions may be submitted in accordance with Service requisitioning procedures in instances where valid requirements exist and replacing item data has not been furnished. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
