NSN 6625-00-725-8455 310BS2, 00-725-8455, 007258455
Product Details | VOLTMETER
6625-00-725-8455 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: 310BS2, 6625-00-725-8455, 00-725-8455, 6625007258455, 007258455
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1961 | 00-725-8455 | 16449 ( VOLTMETER ) |
Drawings & Photos | NSN 6625-00-725-8455
Cross Reference | NSN 6625-00-725-8455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 310BS2 | 50423 | BALLANTINE LABORATORIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-725-8455
Technical Data | NSN 6625-00-725-8455
| Characteristic | Specifications |
|---|---|
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR ALL RANGES |
| SCALE DIVISION QUANTITY | 6 SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING IRON VANE |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| SENSITIVITY RATING | 600.0 MICROAMPERES |
| SCALE SELECTION METHOD | SWITCH |
| POWER SOURCE | EXTERNAL |
| OPERATING VOLTAGE RATING IN VOLTS | 105.0 AC MINIMUM AND 125.0 AC MAXIMUM |
| FREQUENCY RATING | 50.000 HERTZ MINIMUM AND 400.000 HERTZ MAXIMUM |
| PHASE | SINGLE |
| STYLE DESIGNATOR | D1 RECTANGULAR OR SQUARE |
| OVERALL HEIGHT | 7.000 INCHES NOMINAL |
| OVERALL LENGTH | 19.000 INCHES NOMINAL |
| OVERALL WIDTH | 8.500 INCHES NOMINAL |

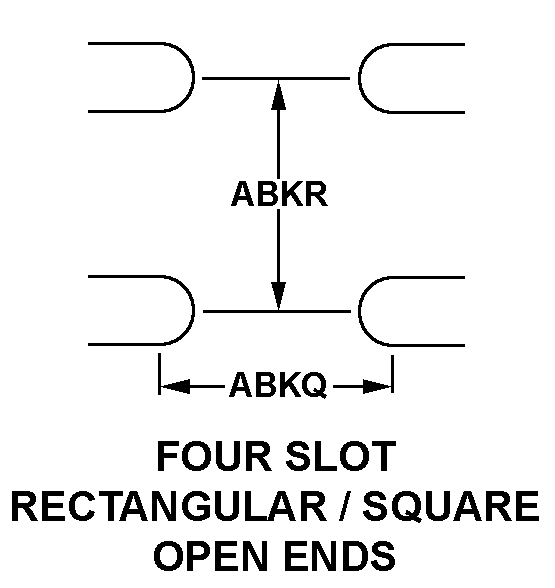

| MOUNTING ARRANGEMENT STYLE | E8 FOUR SLOT RECTANGULAR/SQUARE OPEN ENDS |
| SURFACE TREATMENT | ENAMEL |
| FEATURES PROVIDED | ZERO ADJUSTER |
| MANUFACTURERS CODE | 50423 |
| DESIGN CONTROL REFERENCE | 310BS2 |
Restrictions/Controls & Freight Information | NSN 6625-00-725-8455
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
