NSN 6625-00-753-2156 MX3412URM85, SMC389888, 00-753-2156
Product Details | INTERFERENCE MEASURING MAGNETIC FIELD PROBE
6625-00-753-2156 An item which is specifically designed for use as a search probe in conducting radio interference measurements by determining the existence and extent of an interfering magnetic field.
Part Alternates: MX3412URM85, SMC389888, 6625-00-753-2156, 00-753-2156, 6625007532156, 007532156
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-753-2156 | 20969 ( PROBE, MAGNETIC FIELD, INTERFERENCE MEASURING ) |

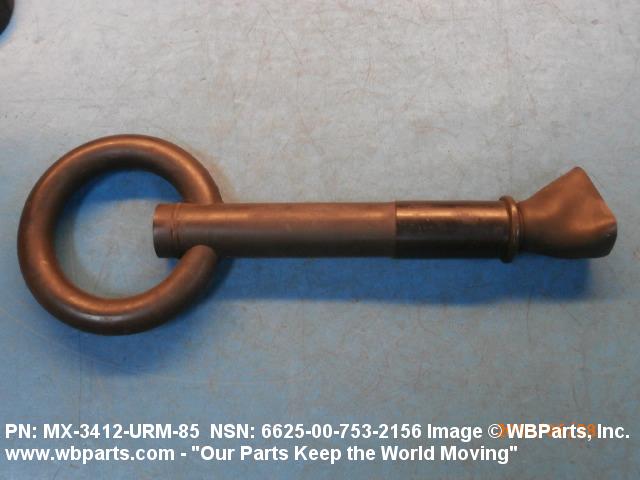

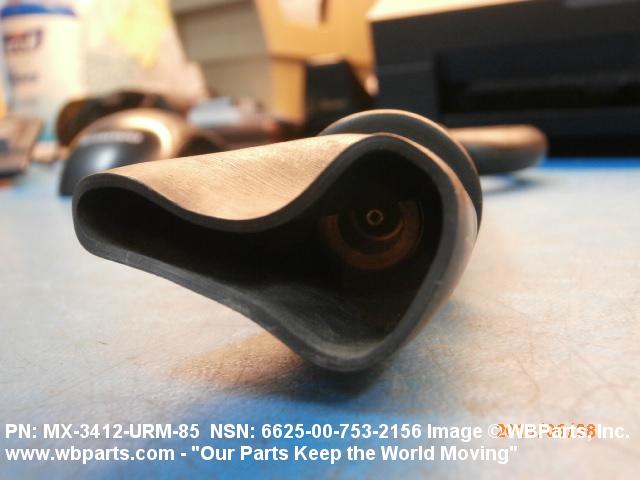

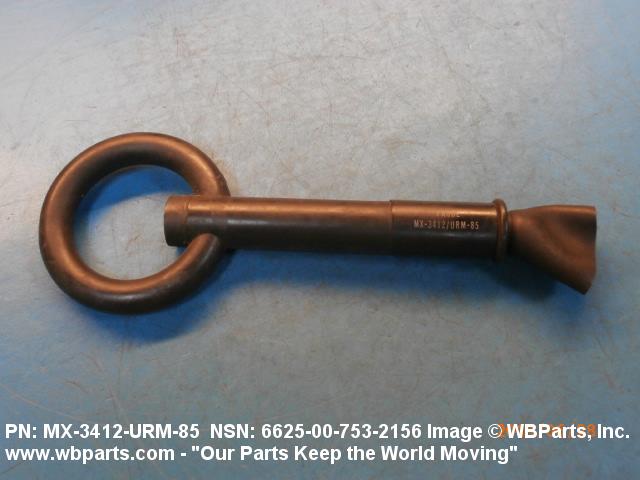

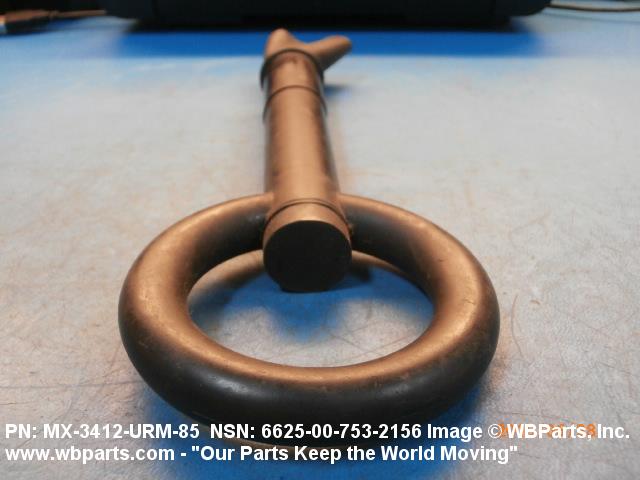

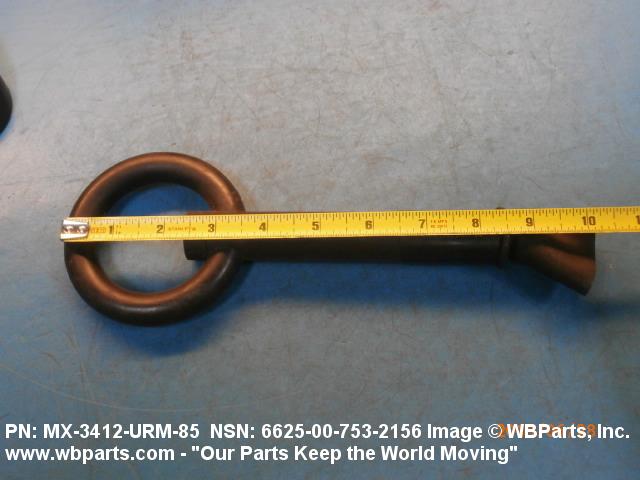

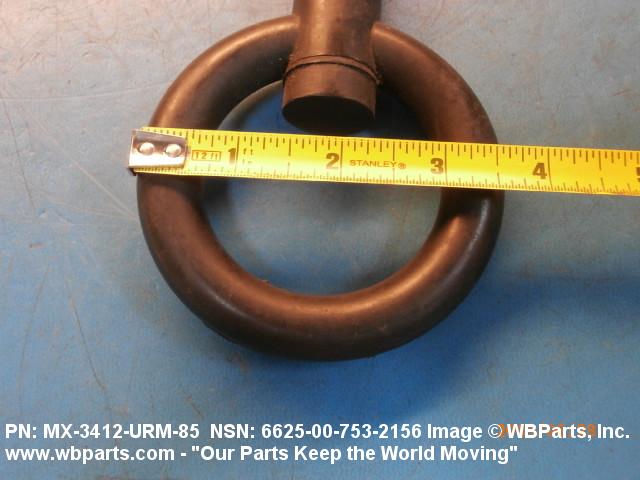

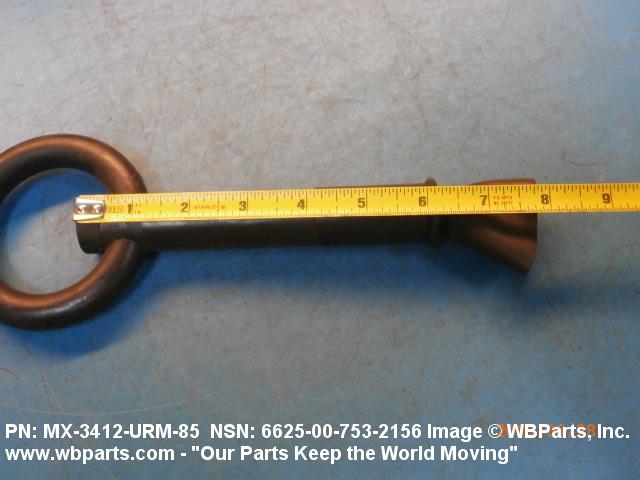

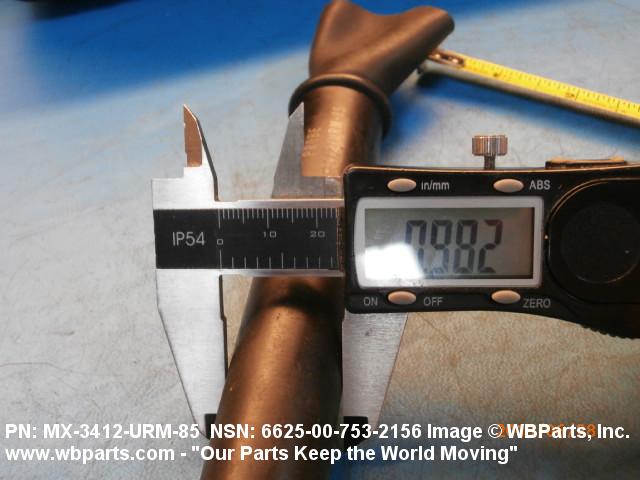

Drawings & Photos | NSN 6625-00-753-2156
Demand History | NSN 6625-00-753-2156
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-753-2156 | 2019-06-167 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-753-2156
Technical Data | NSN 6625-00-753-2156
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 20.0 MEGAHERTZ MINIMUM AND 1000.0 MEGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 50.0 NOMINAL |
| TERMINAL QUANTITY | 1 |
| TERMINAL TYPE | CONNECTOR, PLUG |
| OVERALL LENGTH | 9.000 INCHES MAXIMUM |
| OVERALL DIAMETER | 3.375 INCHES MAXIMUM |
| BODY MATERIAL | BRASS |
| SPECIAL FEATURES | BODY W/VINYL RUBBER JACKET COVER;JETDS ID MAGNETIC FIELD INTERFERENCE MEAS PROBE TYPE MX-3412/URM-85 |
Restrictions/Controls & Freight Information | NSN 6625-00-753-2156
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
| Less than car load rating | F | 150 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
