NSN 6625-00-835-6597 V00420001, V00420-001, 810001-114

Product Details | RADIO FREQUENCY DETECTOR

6625-00-835-6597 An electronic device which demodulates radio frequency energy and may also provide a direct current control potential.20512850045Fire Control Radar Equipment, except Airborne14300037Guided Missile Remote Control Systems58950037Miscellaneous Communication Equipment59630018Electronic Modules66250070Electrical and Electronic Properties Measuring and Testing Instruments

Part Alternates: V00420001, V00420-001, 810001-114, 10011401, 1001-1401, 1001WITH1401L0AD, 423A002, 423A-002, 423A0PT10N02, 6625-00-835-6597, 00-835-6597, 6625008356597, 008356597, 810001114

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	30 NOV 1966	00-835-6597	05474 ( DETECTOR, RADIO FREQUENCY )

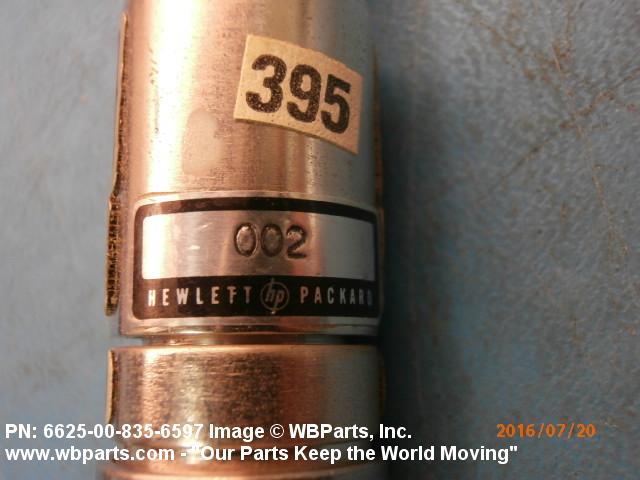

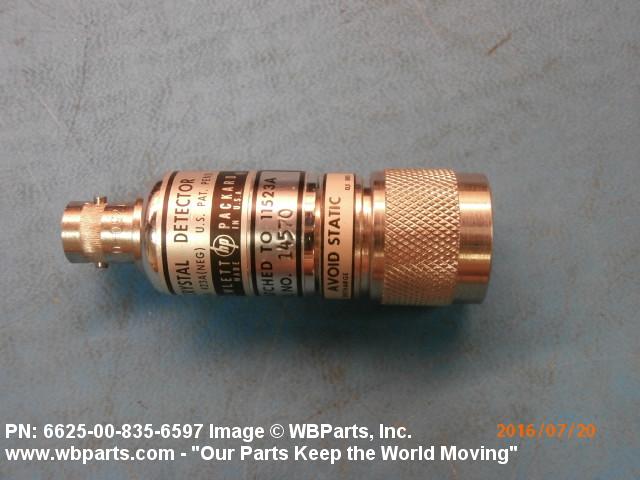

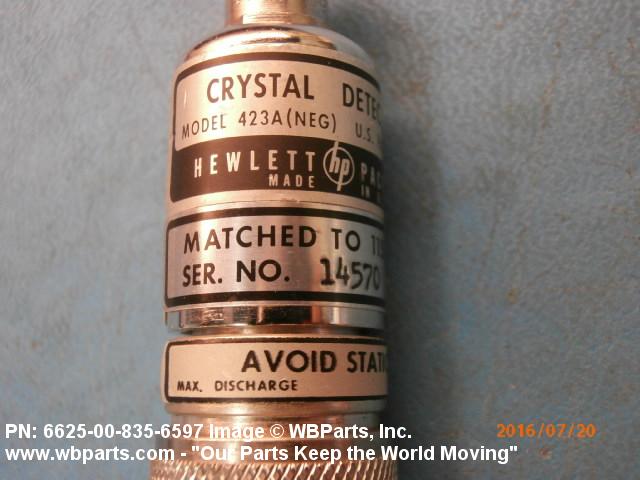

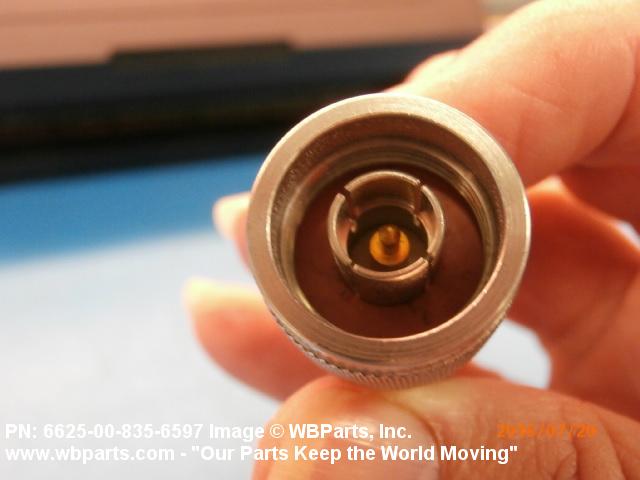

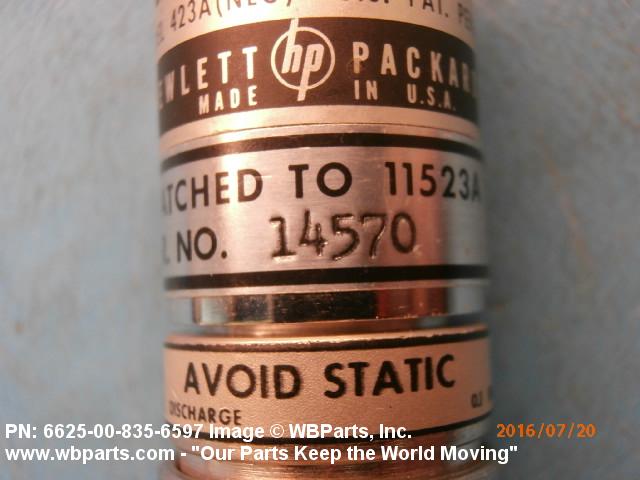

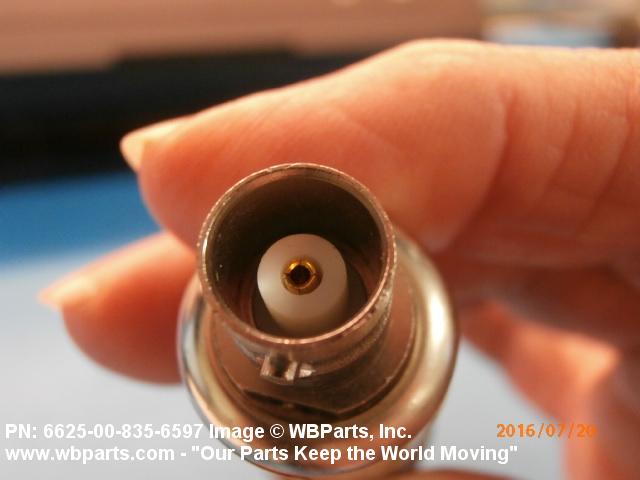

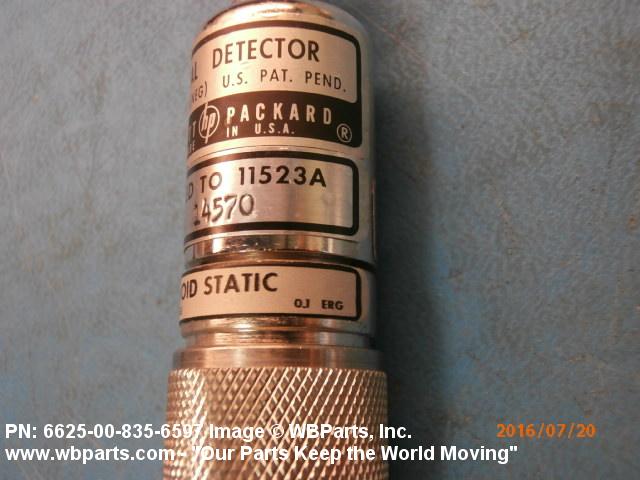

Drawings & Photos | NSN 6625-00-835-6597

Part Number	Request Date	QTY	Origin
6625-00-835-6597	2016-08-215	1	United Kingdom
6625-00-835-6597	2016-07-188	2	United Kingdom
6625-00-835-6597	2016-06-180	2	United Kingdom

Cross Reference | NSN 6625-00-835-6597

Part Number	Cage Code	Manufacturer
1001-1401	88869	EATON CORP ELECTRONIC INSTRUMENTATION DIV
1001WITH1401L0AD	88869	EATON CORP ELECTRONIC INSTRUMENTATION DIV
423A-002	1LQK8	KEYSIGHT TECHNOLOGIES, INC.
423A0PT10N02	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
810001-114	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.
V00420-001	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6625-00-835-6597

Compare

Related Products | NSN 6625-00-835-6597

6625-00-835-6612, 6625-00-835-6622, 6625-00-835-6623, 6625-00-835-6625, 6625-00-835-6626

Technical Data | NSN 6625-00-835-6597

Characteristic	Specifications
CIRCUIT CONSTRUCTION TYPE	SOLID STATE
FREQUENCY PER CHANNEL	12.4 GIGAHERTZ NOMINAL OPERATING CHANNEL
SIGNAL VOLTAGE RATING PER CHANNEL	0.400 MILLIVOLTS NOMINAL INPUT
OPERATING CONTROL METHOD	AUTOMATIC
CONTROL TYPE	LOCAL
AVERAGE LIFE MEASUREMENT	NOT RATED
INCLOSURE TYPE	ENCASED
INSTALLATION DESIGN	MECHANICAL
BASIC SHAPE STYLE	2 CYLINDRICAL

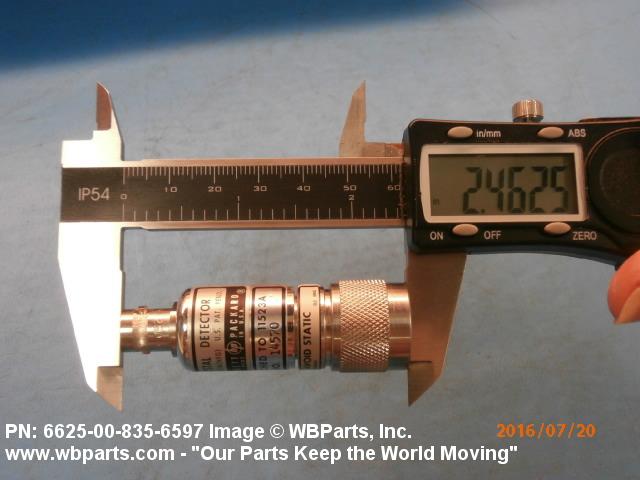

OVERALL LENGTH	2.468 INCHES NOMINAL

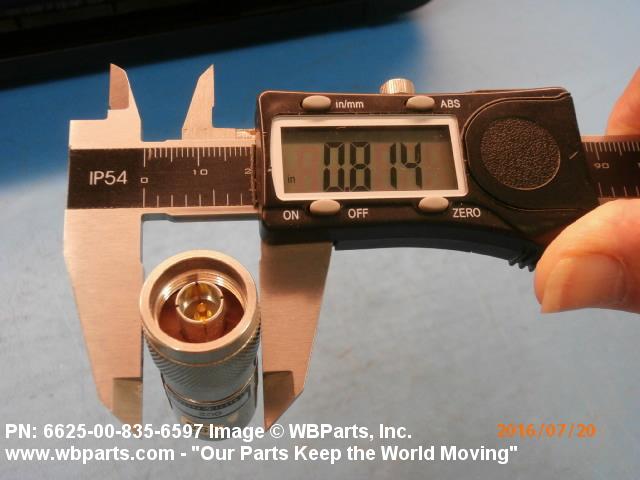

OVERALL DIAMETER	1.000 INCHES NOMINAL
MANUFACTURERS CODE	1LQK8
DESIGN CONTROL REFERENCE	423A-002

Restrictions/Controls & Freight Information | NSN 6625-00-835-6597

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061700	ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating	J	100.2
Less than truck load rating	J	100.2
Water commodity Code	738	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Q	Extremely fragile items including delicate instruments.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	3	Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices).

Management | NSN 6625-00-835-6597

Air Force

Category	Code	Description
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Materiel Management Aggregation Code	RH	TG:AUTO TEST EQUIPMENT/AUTO TEST SYSTEMS (ATE/ATS) (FSC RESIDUAL MMAC)
Budget Code	Y	variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly.
Source of Supply	FLZ	Warner Robins Air Logistics Center Robins AFB, GA 31098-5609
Agency	DF	Department of the Air Force
Service Organization	L	Lead Service - 22 (Repairable)
Reparability	U	AF Equipment Management System (AFEMS)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
