Product Details | VOLTMETER
6625-00-853-0241 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: B1, 6625-00-853-0241, 00-853-0241, 6625008530241, 008530241
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-853-0241 | 16449 ( VOLTMETER ) |
Drawings & Photos | NSN 6625-00-853-0241
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 6625-00-853-0241
6625-00-853-0522, 6625-00-853-0742, 6625-00-853-1145, 6625-00-853-1498, 6625-00-853-2588
Technical Data | NSN 6625-00-853-0241
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| MEASUREMENT RANGE | 0.0 TO 1.0 VOLTS, AC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR ALL RANGES |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| POWER SOURCE | EXTERNAL |
| OPERATING VOLTAGE RATING IN VOLTS | 6.3 AC NOMINAL |
| FREQUENCY RATING | 60.000 HERTZ NOMINAL |
| PHASE | SINGLE |

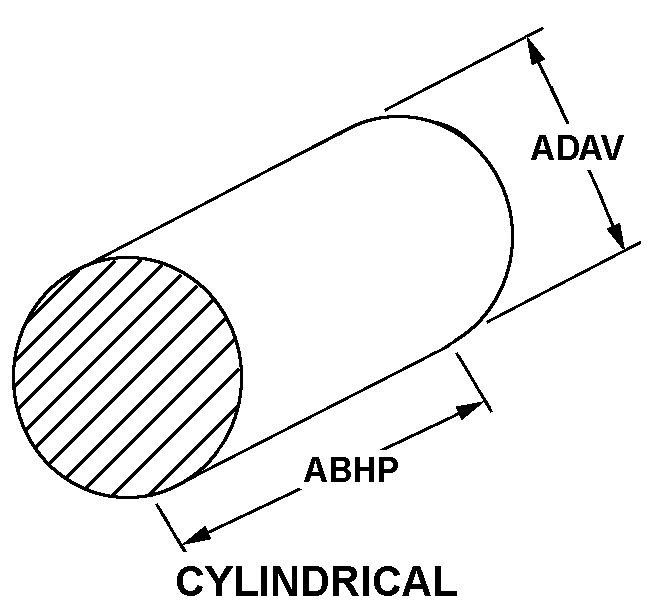

| STYLE DESIGNATOR | D2 CYLINDRICAL |
| OVERALL DIAMETER | 3.510 INCHES NOMINAL |
| OVERALL LENGTH | 4.875 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E5 THREE HOLE/STUD BOLT CIRCLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.156 INCHES NOMINAL |
| SURFACE TREATMENT | ENAMEL |
| MANUFACTURERS CODE | 27197 |
| DESIGN CONTROL REFERENCE | B1 |
