NSN 6625-00-901-1303 244938-901, 00-901-1303, 244938901
Product Details | ELECTRICAL METER HOUSING
6625-00-901-1303 The outer component of an electrical meter designed to inclose, support and/or protect the meter mechanism. May include a window and/or provisions for adjusting the meter pointer. For items which inclose the complete functioning meter, see CASE, METER.
Part Alternates: 244938-901, 6625-00-901-1303, 00-901-1303, 6625009011303, 244938901, 009011303
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-901-1303 | 13601 ( HOUSING, ELECTRICAL METER ) |
Drawings & Photos | NSN 6625-00-901-1303
Cross Reference | NSN 6625-00-901-1303
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 244938-901 | 65092 | SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-901-1303
Technical Data | NSN 6625-00-901-1303
| Characteristic | Specifications |
|---|---|
| WINDOW MATERIAL | GLASS |
| ADJUSTABLE POINTER | NOT PROVIDED |
| MATERIAL | METAL |
| SURFACE TREATMENT | ENAMELED |

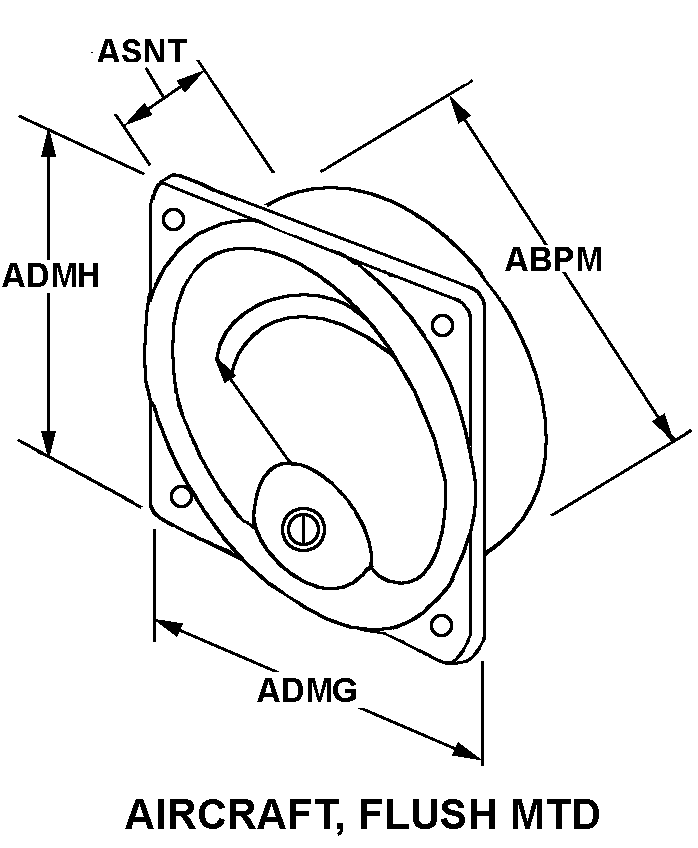

| STYLE DESIGNATOR | B17 AIRCRAFT, FLUSH MTD |
| BODY DIAMETER | 3.130 INCHES NOMINAL |
| FLANGE MOUNTING LENGTH | 3.265 INCHES NOMINAL |
| MOUNTING FLANGE WIDTH | 3.265 INCHES NOMINAL |
| DEPTH TO MOUNTING FLANGE | 2.002 INCHES NOMINAL |
| MOUNTING CONFIGURATION | FOUR 0.172 IN. DIA MTG HOLES LOCATED ON 2.474 IN. BY 2.474 IN. MTG CENTERS |
| INSULATING RING | NOT PROVIDED |
| RETAINING RING | NOT PROVIDED |
| AUXILIARY ILLUMINATION WINDOW | NOT PROVIDED |
| III FSC APPLICATION DATA | HOISTING MECHANISM,SONAR |
| MANUFACTURERS CODE | 65092 |
| DESIGN CONTROL REFERENCE | 244938-901 |
Restrictions/Controls & Freight Information | NSN 6625-00-901-1303
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-00-901-1303
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
