NSN 6625-00-942-5718 AEXT300351, AEXT30035-1, 35R
Product Details | VOLTMETER
6625-00-942-5718 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: AEXT300351, AEXT30035-1, 35R, 35RTP2, 3630009, 363-0009, 363009, 363-009, 368009, 368-009, 6798233-17, 67992158, 6799215-8, 90780, 907-80, 6625-00-942-5718, 00-942-5718, 6625009425718, 009425718, 679823317
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 23 DEC 1965 | 00-942-5718 | 16449 ( VOLTMETER ) |

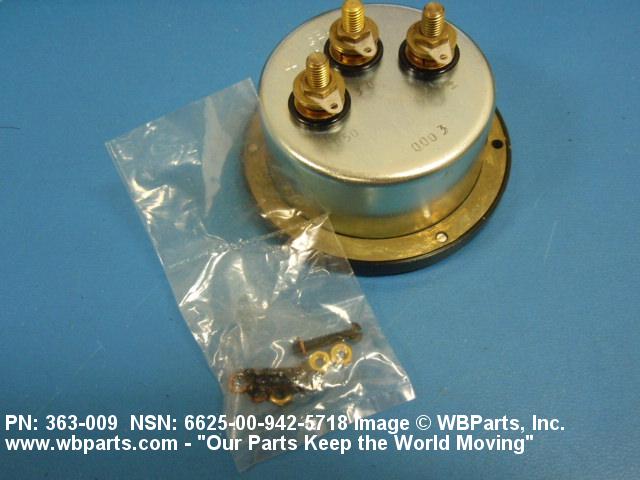

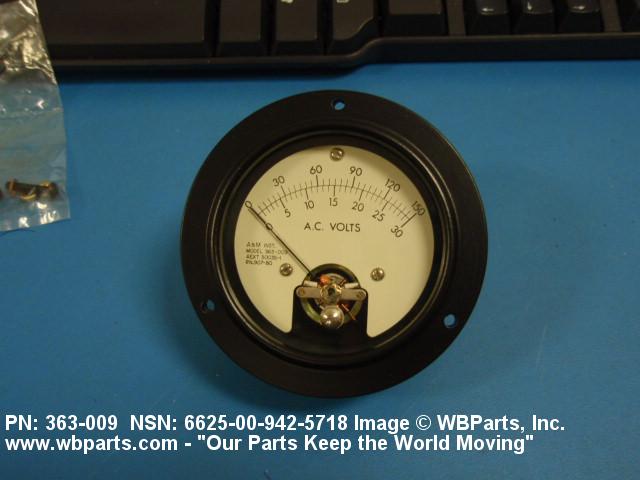

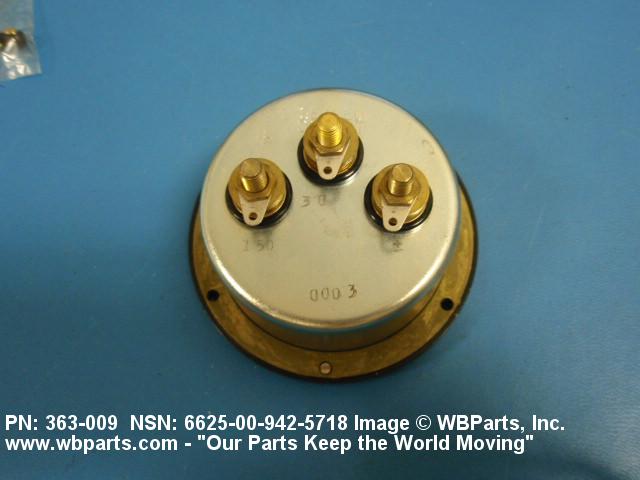

Drawings & Photos | NSN 6625-00-942-5718
Demand History | NSN 6625-00-942-5718
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 363-009 | 2025-05-125 | 9 | DIBBS |
| 6798233-17 | 2025-05-125 | 9 | DIBBS |
| 363-009 | 2025-04-114 | 9 | DIBBS |
| 6798233-17 | 2025-04-114 | 9 | DIBBS |
| 363-009 | 2021-09-271 | 8 | DIBBS |
| 6798233-17 | 2021-09-271 | 8 | DIBBS |
| 6625-00-942-5718 | 2018-05-135 | 1 | United States |
| 679823317 | 2018-04-113 | 20 | US |
| 6625-00-942-5718 | 2018-04-109 | 20 | DIBBS |
| 6625-00-942-5718 | 2017-08-215 | 17 | DIBBS |
| 6625-00-942-5718 | 2016-12-362 | 14 | DIBBS |
| 6625-00-942-5718 | 2016-12-350 | 14 | DIBBS |
| 6625-00-942-5718 | 2013-05-128 | 1 | SG |
| 679823317 | 2010-09-260 | 1 | US |
| 6625-00-942-5718 | 2009-08-224 | 1 | United States |
Cross Reference | NSN 6625-00-942-5718
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 35R | 27627 | ELECTRICAL INSTRUMENT LABORATORY |
| 35RTP2 | 27627 | ELECTRICAL INSTRUMENT LABORATORY |
| 363-0009 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| 363-009 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| 368-009 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| 6798233-17 | 73342 | ALLISON TRANSMISSION, INC. |
| 6799215-8 | 73342 | ALLISON TRANSMISSION, INC. |
| 907-80 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| AEXT30035-1 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-942-5718
Related Products | NSN 6625-00-942-5718
Technical Data | NSN 6625-00-942-5718
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| ACCURACY IN PERCENT | -5.0 TO 5.0 AT FULL SCALE SINGLE INDICATOR ALL RANGES |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING IRON VANE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 3 THREADED STUD |
| SENSITIVITY RATING | 1000.0 OHMS PER VOLT |
| SCALE SELECTION METHOD | SWITCH |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| STYLE DESIGNATOR | C1 ROUND FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.750 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.281 INCHES NOMINAL |
| OVERALL DIAMETER | 3.500 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.150 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E5 THREE HOLE/STUD BOLT CIRCLE |
| MOUNTING BOLT CIRCLE DIAMETER | 3.160 INCHES NOMINAL |
| MATERIAL | PLASTIC |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | 4920-00-870-0583; ELECTRONIC SYSTEMS TEST SET |
| MANUFACTURERS CODE | 73342 |
| MFR SOURCE CONTROLLING REFERENCE | 6799215-8 |
Restrictions/Controls & Freight Information | NSN 6625-00-942-5718
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | SN | Air Force Logistics Command Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-00-942-5718
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | JX | TG:AIRCRAFT MAINTENANCE EQUIPMENT |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
