NSN 6625-00-987-5595 MODEL254, EF091, 23330
Product Details | ELECTRICAL FREQUENCY METER
6625-00-987-5595 An instrument which measures the rate of regularly recurring variations in an electric current or voltage and is usually calibrated in Hertz (cycles per second or CPS). The value may be expressed by means of a pointer and calibrated dial vibrating reed or a digital read out display. For instruments which measure radio frequencies, see CALIBRATOR, FREQUENCY; and WAVEMENTER. Excludes: COUNTER ELECTRONIC DIGITAL.
Part Alternates: MODEL254, EF091, 23330, 233-30, 4016, 4-016, 6625-00-987-5595, 00-987-5595, 6625009875595, 009875595
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 28 OCT 1966 | 00-987-5595 | 16454 ( METER, ELECTRICAL FREQUENCY ) |

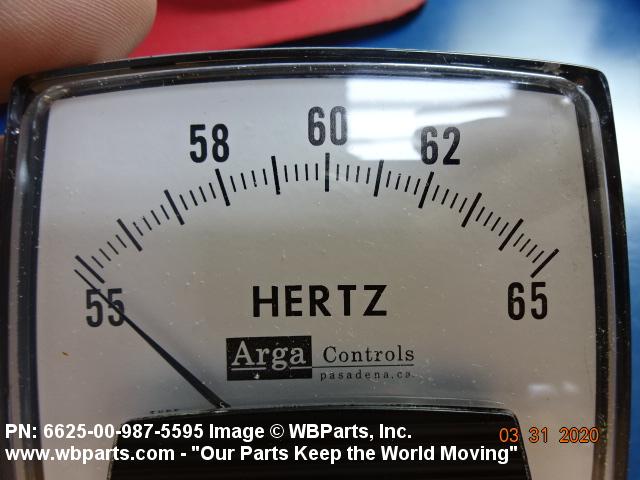

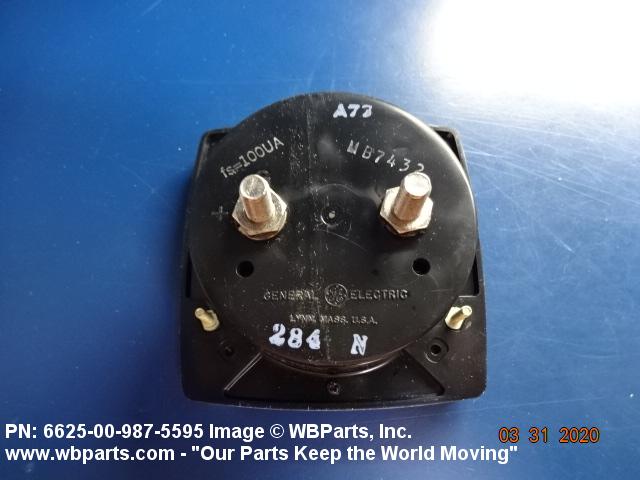

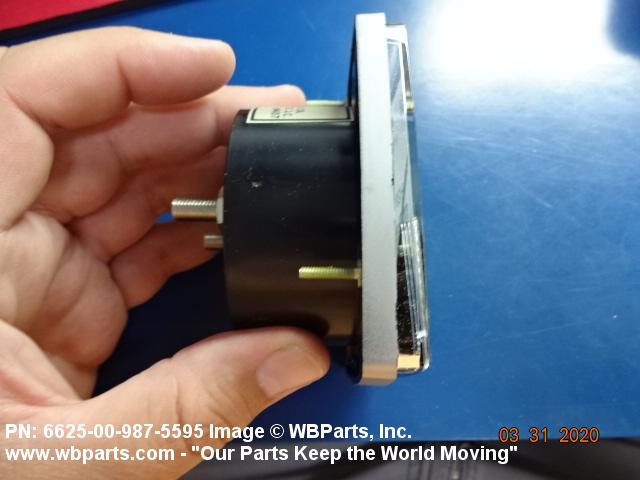

Drawings & Photos | NSN 6625-00-987-5595
Demand History | NSN 6625-00-987-5595
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-987-5595 | 2020-03-79 | 4 | United States |
| 6625-00-987-5595 | 2020-01-30 | 4 | KR |
| 6625-00-987-5595 | 2020-01-28 | 4 | KR |
Cross Reference | NSN 6625-00-987-5595
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-987-5595
Technical Data | NSN 6625-00-987-5595
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 360.0 TO 440.0 HERTZ SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 80 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| FREQUENCY RESPONSE RANGE | 360.000 TO 440.000 HERTZ |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 THREADED STUD |
| SENSITIVITY RATING | 40.0 DECIBELS |
| SCALE SELECTION METHOD | TERMINAL |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 3000.0 |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL |
| STYLE DESIGNATOR | C2 RECTANGULAR FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.060 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.375 INCHES NOMINAL |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| OVERALL LENGTH | 2.625 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SCREW AND 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.170 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E3 FOUR HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.856 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.856 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | CHROMATE |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | AIRTIGHT AND DUST RESISTANT AND FUNGUS RESISTANT AND HEAT RESISTANT AND HUMIDITY RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT AND WATER RESISTANT |
| FURNISHED ITEMS AND QUANTITY | NUT 8; LOCKWASHER 6; SEAL 1 |
| SPECIAL MARKINGS | ON BACK,SEALED DO NOT OPEN |
Restrictions/Controls & Freight Information | NSN 6625-00-987-5595
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
