NSN 6625-01-038-6829 35.7001, 357001, 366043

Product Details | AMMETER

6625-01-038-6829 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.

Part Alternates: 35.7001, 357001, 366043, 366-043, 55RS10585, 63718050, 637-18050, 63918050, 639-18050, 7250071, 72-5007-1, 6625-01-038-6829, 01-038-6829, 6625010386829, 010386829

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	10 APR 1977	01-038-6829	16450 ( AMMETER )

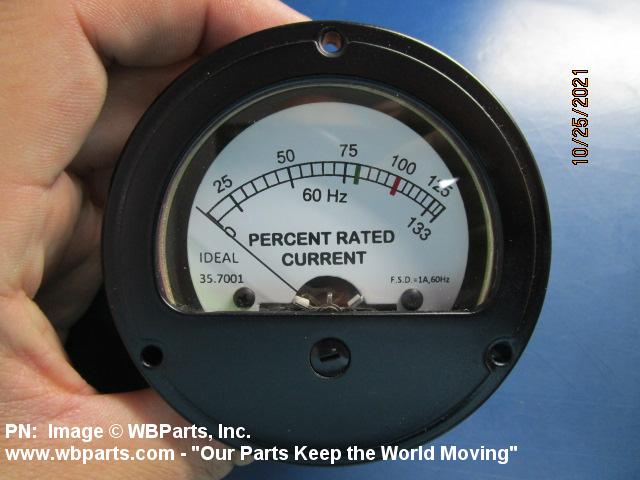

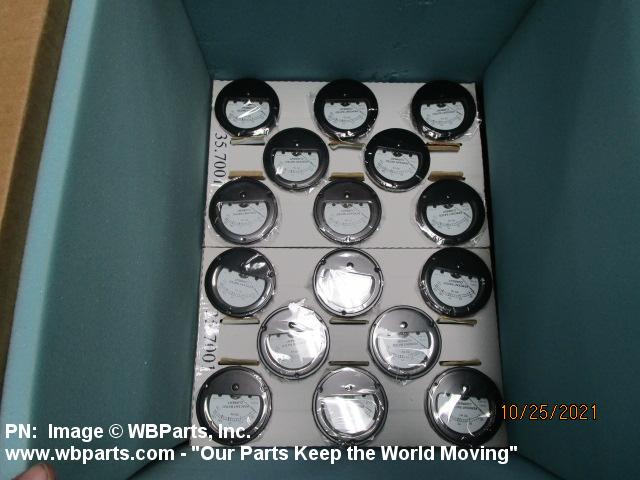

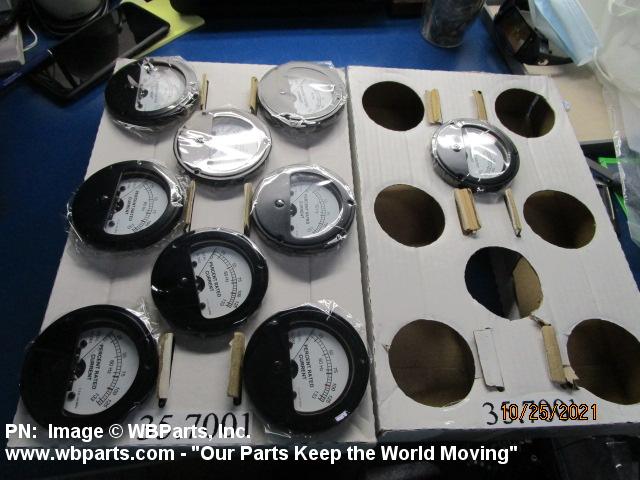

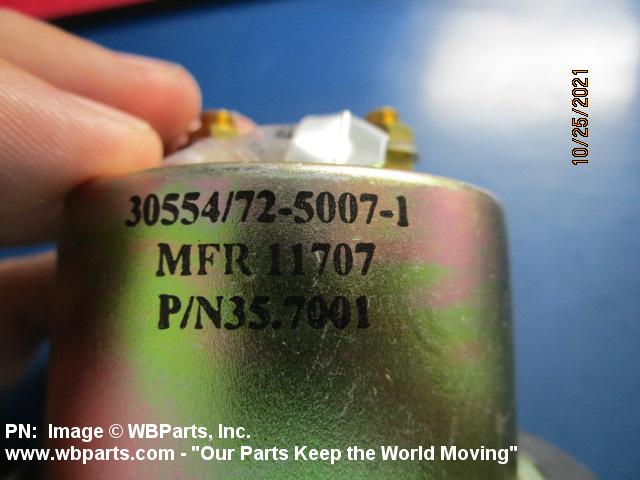

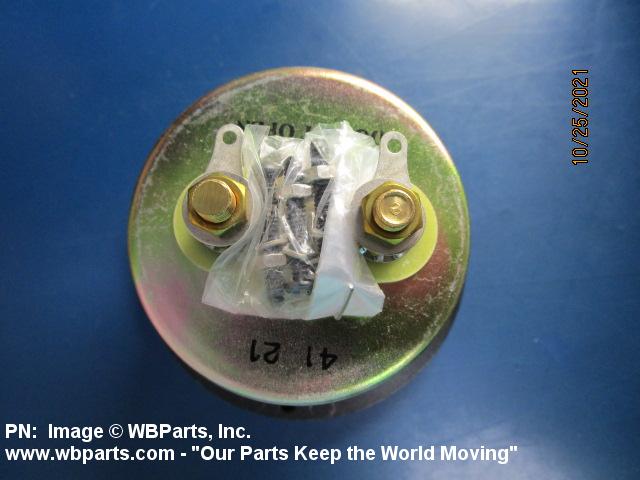

Drawings & Photos | NSN 6625-01-038-6829

Part Number	Request Date	QTY	Origin
35.7001	2025-10-289	98	DIBBS
366-043	2025-10-289	98	DIBBS
55RS10585	2025-10-289	98	DIBBS
637-18050	2025-10-289	98	DIBBS
639-18050	2025-10-289	98	DIBBS
35.7001	2025-10-278	98	DIBBS
366-043	2025-10-278	98	DIBBS
55RS10585	2025-10-278	98	DIBBS
637-18050	2025-10-278	98	DIBBS
639-18050	2025-10-278	98	DIBBS
6625-01-038-6829	2025-07-188	1	US
6625-01-038-6829	2025-04-101	1	United States
6625-01-038-6829	2025-01-14	1	US
6625-01-038-6829	2024-04-116	1	US
6625-01-038-6829	2024-03-80	1	US
6625-01-038-6829	2024-03-80	1	US
6625-01-038-6829	2023-06-166	1	US
6625-01-038-6829	2023-05-137	2	US
6625-01-038-6829	2023-04-100	1	US
6625-01-038-6829	2022-05-130	1	AE
6625-01-038-6829	2021-09-273	25	United States
6625-01-038-6829	2021-09-251	25	United States
6625-01-038-6829	2021-08-229	3	United States
6625-01-038-6829	2021-08-229	3	United States
6625-01-038-6829	2021-08-225	1	CA
35.7001	2020-11-332	253	DIBBS
366-043	2020-11-332	253	DIBBS
55RS10585	2020-11-332	253	DIBBS
637-18050	2020-11-332	253	DIBBS
639-18050	2020-11-332	253	DIBBS
35.7001	2020-11-321	253	DIBBS
366-043	2020-11-321	253	DIBBS
55RS10585	2020-11-321	253	DIBBS
637-18050	2020-11-321	253	DIBBS
639-18050	2020-11-321	253	DIBBS
6625-01-038-6829	2019-11-326	1	United States
6625-01-038-6829	2019-10-295	2	US
35.7001	2019-10-288	219	DIBBS
366-043	2019-10-288	219	DIBBS
55RS10585	2019-10-288	219	DIBBS
637-18050	2019-10-288	219	DIBBS
639-18050	2019-10-288	219	DIBBS
35.7001	2019-10-276	219	DIBBS
366-043	2019-10-276	219	DIBBS
55RS10585	2019-10-276	219	DIBBS
637-18050	2019-10-276	219	DIBBS
639-18050	2019-10-276	219	DIBBS
6625-01-038-6829	2019-07-190	5	United States
35.7001	2019-04-113	186	DIBBS
366-043	2019-04-113	186	DIBBS
55RS10585	2019-04-113	186	DIBBS
637-18050	2019-04-113	186	DIBBS
639-18050	2019-04-113	186	DIBBS
6625-01-038-6829	2018-12-345	10	United States
7250071	2018-12-338	10	us
6625-01-038-6829	2018-07-201	162	DIBBS
6625-01-038-6829	2018-07-190	162	DIBBS
6625-01-038-6829	2018-06-179	162	DIBBS
6625-01-038-6829	2018-03-77	10	US
010386829	2017-11-310	1	US
6625-01-038-6829	2017-10-283	1	us
6625-01-038-6829	2017-10-283	1	us
6625-01-038-6829	2017-09-271	423	DIBBS
6625-01-038-6829	2017-05-149	1	US
6625-01-038-6829	2015-11-311	1	US
6625-01-038-6829	2014-09-256	3	US
6625-01-038-6829	2014-02-37	262	DIBBS
6625-01-038-6829	2014-01-22	262	DIBBS
6625-01-038-6829	2013-04-101	2	MANUAL
6625-01-038-6829	2012-10-297	1	us
357001	2011-06-166	1	US
6625-01-038-6829	2011-02-55	512	DIBBS
6625-01-038-6829	2010-06-179	513	DIBBS
6625-01-038-6829	2010-04-118	654	DIBBS
6625-01-038-6829	2010-03-71	367	DIBBS
6625-01-038-6829	2007-05-128	1478	DIBBS
6625-01-038-6829	2007-05-127	1478	DIBBS
6625-01-038-6829	2007-04-117	1478	DIBBS
6625-01-038-6829	2007-03-80	724	DIBBS
6625-01-038-6829	2007-02-39	740	DIBBS

Cross Reference | NSN 6625-01-038-6829

Part Number	Cage Code	Manufacturer
35.7001	11707	IDEAL PRECISION METER CO
366-043	15309	JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR
55RS10585	55026	SIMPSON ELECTRIC COMPANY DBA (SUB OF LAC DU FLAMBEAU BAND OF
637-18050	77221	PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY
639-18050	77221	PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY
72-5007-1	30554	DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6625-01-038-6829

Compare

Related Products | NSN 6625-01-038-6829

6625-01-038-6830, 6625-01-038-6832, 6625-01-038-6833, 6625-01-038-6834, 6625-01-038-6835

Technical Data | NSN 6625-01-038-6829

Characteristic	Specifications
INSTALLATION DESIGN	PANEL
(NON-CORE DATA) PANEL FOR WHICH DESIGNED	NONMAGNETIC
(NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE	NONELECTRONIC
INDICATOR TYPE	DIAL W/POINTER
MEASUREMENT RANGE	0.0 TO 125.0 AMPERES, AC SINGLE INDICATOR SINGLE RANGE
ACCURACY IN PERCENT	-2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE
SCALE GRADUATION TYPE	LINEAR SINGLE INDICATOR SINGLE RANGE
SCALE DIVISION QUANTITY	5 SINGLE INDICATOR SINGLE RANGE
POINTER COLOR	BLACK SINGLE INDICATOR SINGLE RANGE
DIAL SCALE MARKING COLOR	BLACK SINGLE INDICATOR SINGLE RANGE
BACKGROUND COLOR	WHITE SINGLE INDICATOR SINGLE RANGE
MOVEMENT TYPE	MOVING COIL, PERMANENT MAGNET
MOVEMENT SUSPENSION METHOD	TAUT BAND
CIRCUIT ATTACHMENT METHOD AND QUANTITY	2 THREADED STUD
POWER SOURCE	EXTERNAL
CIRCUIT CURRENT FOR WHICH DESIGNED	AC
OPERATING VOLTAGE RATING IN VOLTS	115.0 AC NOMINAL
FREQUENCY RATING	60.0 HERTZ NOMINAL
STYLE DESIGNATOR	C1 ROUND FLUSH MTG
METER BODY DIAMETER BEHIND MOUNTING FLANGE	2.800 INCHES NOMINAL
METER DEPTH BEHIND MOUNTING FLANGE	2.450 INCHES NOMINAL
OVERALL DIAMETER	3.510 INCHES NOMINAL
OVERALL LENGTH	2.770 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY	3 UNTHREADED HOLE
MOUNTING HOLE DIAMETER	0.145 INCHES NOMINAL
MOUNTING ARRANGEMENT STYLE	E5 THREE HOLE/STUD BOLT CIRCLE
MOUNTING BOLT CIRCLE DIAMETER	3.160 INCHES NOMINAL
MATERIAL	STEEL
SURFACE TREATMENT	ENAMEL LUSTERLESS
NUCLEAR HARDNESS CRITICAL FEATURE	NONHARDENED
ENVIRONMENTAL PROTECTION	DUSTPROOF
FURNISHED ITEMS AND QUANTITY	MOUNTING HARDWARE 3
SPECIAL MARKINGS	DOUBLE WIDTH RED LINE AT 75 AMPS; DOUBLE WIDTH GREEN LINE AT 80 AMPS
FEATURES PROVIDED	ZERO ADJUSTER
III FSC APPLICATION DATA	TEST SET,ELECT. EQUIP.
MANUFACTURERS CODE	30554
MFR SOURCE CONTROLLING REFERENCE	72-5007-1

Restrictions/Controls & Freight Information | NSN 6625-01-038-6829

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	136740	METERS ELEC/PARTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	657	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6625-01-038-6829

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	TG	TG:AF SICA RESIDUAL MMAC-WR-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
