NSN 6625-01-043-3139 10178305, 01-043-3139, 010433139

Product Details | ARBITRARY SCALE METER

6625-01-043-3139 An electrically operated instrument which has a marked scale or digital readout display, but the unit of measurement is not given. May indicate electrical or nonelectrical effects but is primarily not a current detecting device; therefore, excludes GALVANOMETER. For instruments whose unit of measurement is not covered by a more specific item, see METER, SPECIAL SCALE.

Part Alternates: 10178305, 6625-01-043-3139, 01-043-3139, 6625010433139, 010433139

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	23 JUN 1977	01-043-3139	16476 ( METER, ARBITRARY SCALE )

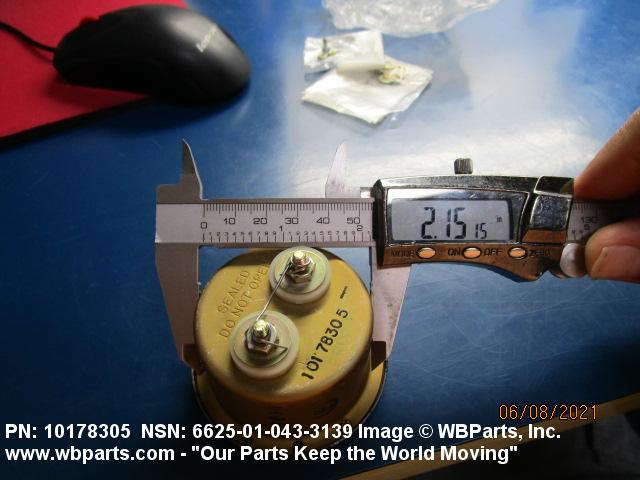

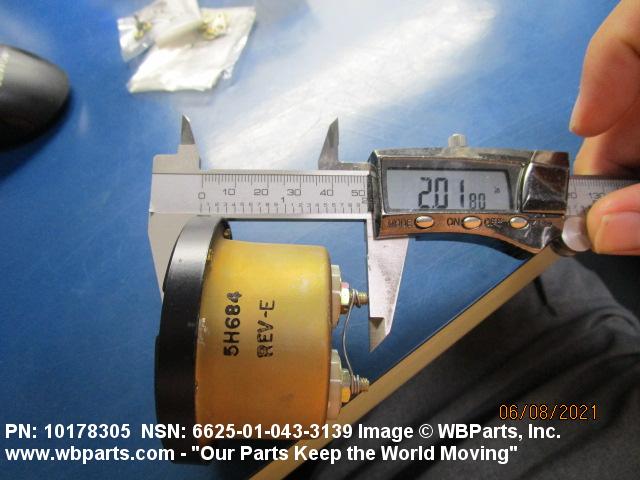

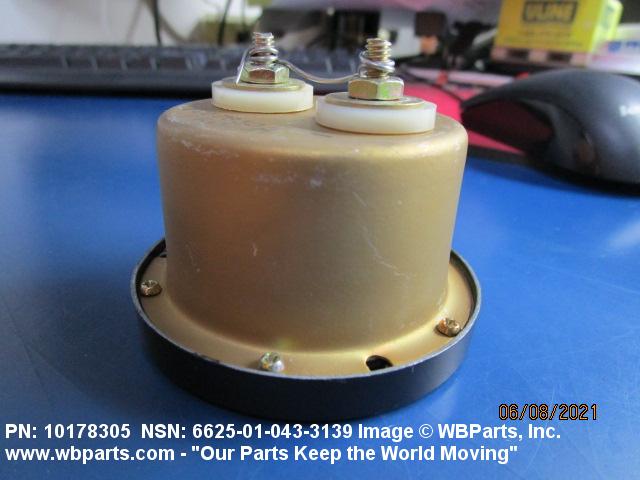

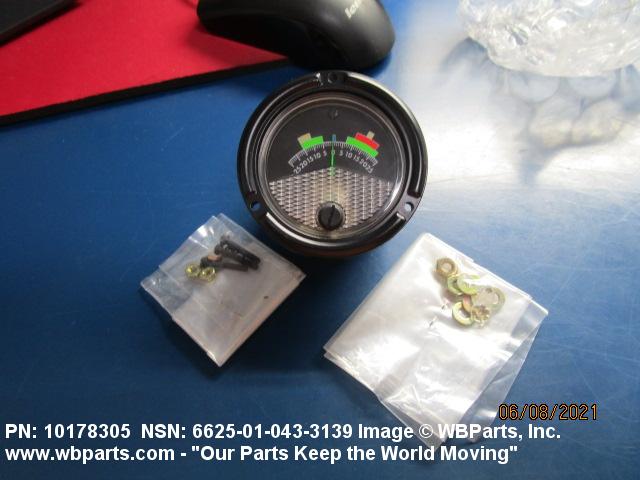

Drawings & Photos | NSN 6625-01-043-3139

Part Number	Request Date	QTY	Origin
6625-01-043-3139	2021-04-119	2	us
6625-01-043-3139	2021-04-119	5	us
6625-01-043-3139	2019-04-120	5	DIBBS
6625-01-043-3139	2017-08-233	3	DIBBS
6625-01-043-3139	2015-05-132	1	DIBBS
6625-01-043-3139	2015-04-118	1	DIBBS
6625-01-043-3139	2014-08-238	3	DIBBS
6625-01-043-3139	2014-03-76	2	DIBBS
6625-01-043-3139	2014-02-49	27	DIBBS
6625-01-043-3139	2013-10-274	3	DIBBS
6625-01-043-3139	2013-08-240	2	DIBBS
6625-01-043-3139	2013-06-155	3	DIBBS
6625-01-043-3139	2013-05-149	3	DIBBS
6625-01-043-3139	2013-02-34	4	DIBBS
6625-01-043-3139	2012-12-364	3	DIBBS
6625-01-043-3139	2012-08-237	1	DIBBS
6625-01-043-3139	2012-07-210	3	DIBBS
6625-01-043-3139	2012-06-177	2	DIBBS
6625-01-043-3139	2011-07-204	3	DIBBS
6625-01-043-3139	2011-03-70	3	DIBBS
6625-01-043-3139	2010-03-86	2	DIBBS
6625-01-043-3139	2010-01-17	5	DIBBS
6625-01-043-3139	2009-11-314	3	DIBBS
6625-01-043-3139	2009-06-170	18	DIBBS
6625-01-043-3139	2007-05-128	18	DIBBS
6625-01-043-3139	2007-03-68	20	DIBBS
6625-01-043-3139	2007-01-24	3	DIBBS

Cross Reference | NSN 6625-01-043-3139

Part Number	Cage Code	Manufacturer
10178305	15309	JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR
10178305	18876	U S ARMY AVIATION AND MISSILE COMMAND
10178305	77221	PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6625-01-043-3139

Compare

Related Products | NSN 6625-01-043-3139

6625-01-043-3737, 6625-01-043-3888, 6625-01-043-3891, 6625-01-043-3892, 6625-01-043-3945

Technical Data | NSN 6625-01-043-3139

Characteristic	Specifications
INSTALLATION DESIGN	PANEL
(NON-CORE DATA) PANEL FOR WHICH DESIGNED	MAGNETIC OR NONMAGNETIC
INDICATOR TYPE	DIAL W/POINTER

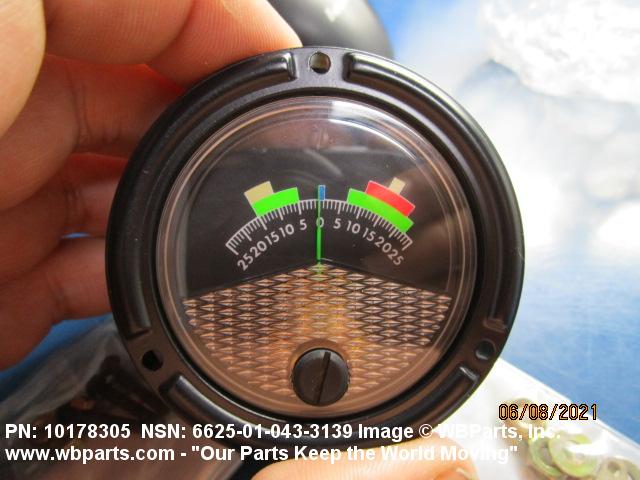

SCALE MARKING	25,20,15,10,5,0,5,10,15,20,25
ACCURACY IN PERCENT	-2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE
SCALE GRADUATION TYPE	LINEAR SINGLE INDICATOR SINGLE RANGE
SCALE DIVISION QUANTITY	50 SINGLE INDICATOR SINGLE RANGE
POINTER COLOR	WHITE SINGLE INDICATOR SINGLE RANGE
DIAL SCALE MARKING COLOR	BLACK AND BLUE AND GREEN AND RED AND YELLOW SINGLE INDICATOR SINGLE RANGE
BACKGROUND COLOR	BLACK SINGLE INDICATOR SINGLE RANGE
MOVEMENT TYPE	MOVING COIL, PERMANENT MAGNET
MOVEMENT SUSPENSION METHOD	JEWEL PIVOT BASE

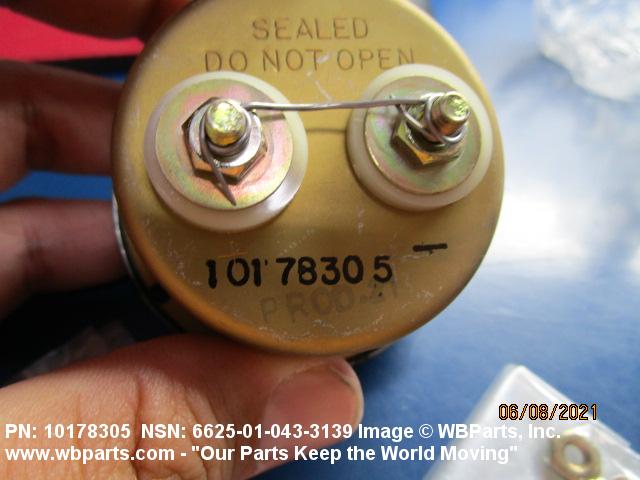

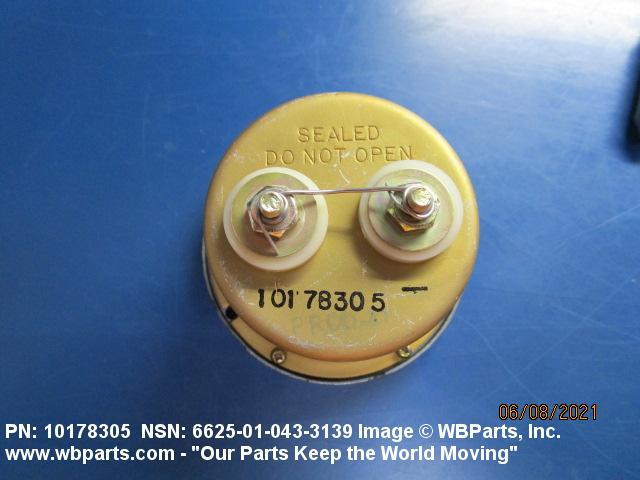

CIRCUIT ATTACHMENT METHOD AND QUANTITY	2 THREADED STUD
CIRCUIT CURRENT FOR WHICH DESIGNED	DC
STYLE DESIGNATOR	C2 RECTANGULAR FLUSH MTG
METER BODY DIAMETER BEHIND MOUNTING FLANGE	2.210 INCHES MAXIMUM
METER DEPTH BEHIND MOUNTING FLANGE	1.405 INCHES MAXIMUM
OVERALL DIAMETER	2.695 INCHES MAXIMUM
OVERALL LENGTH	2.590 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	3 UNTHREADED HOLE
MOUNTING HOLE DIAMETER	0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM
MOUNTING ARRANGEMENT STYLE	E3 FOUR HOLE/STUD RECTANGULAR/SQUARE
MOUNTING BOLT CIRCLE DIAMETER	2.440 INCHES NOMINAL
MATERIAL	STEEL CORROSION RESISTING
SURFACE TREATMENT	ENAMEL SEMIGLOSS
NUCLEAR HARDNESS CRITICAL FEATURE	NONHARDENED
ENVIRONMENTAL PROTECTION	COLD RESISTANT AND HEAT RESISTANT AND SHOCK RESISTANT AND SUBMERSIBLE AND VIBRATION RESISTANT AND WATERTIGHT

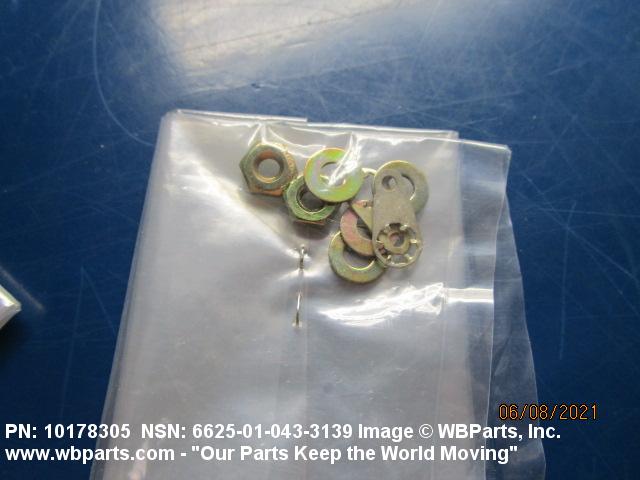

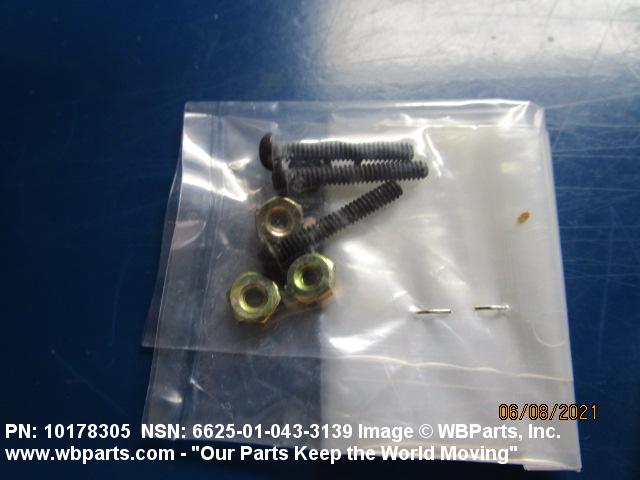

FURNISHED ITEMS AND QUANTITY	NUT 5; WASHER 5
FEATURES PROVIDED	LUMINOUS SCALE MARKING AND MAGNETIC SHIELD AND ZERO ADJUSTER
SPECIAL FEATURES	RUGGEDIZED
SPECIAL TEST FEATURES	CONFORMS TO MIL-M-10304/5
III FSC APPLICATION DATA	TEST SET,ELECT. EQUIP.

Restrictions/Controls & Freight Information | NSN 6625-01-043-3139

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	136740	METERS ELEC/PARTS
Less than car load rating	J	100.2
Less than truck load rating	W	Rating Variable
Water commodity Code	657	unknown
Originating Activity Code	BD	U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6625-01-043-3139

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
