Product Details | VOLTMETER
6625-01-110-9909 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: V23651, V-2365-1, V3324, V-3324, 3020748001, 3020748-001, 6625-01-110-9909, 01-110-9909, 6625011109909, 011109909
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 08 APR 1981 | 01-110-9909 | 16449 ( VOLTMETER ) |
Drawings & Photos | NSN 6625-01-110-9909
Demand History | NSN 6625-01-110-9909
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-110-9909 | 2023-02-37 | 1 | United States |
| 6625-01-110-9909 | 2023-01-25 | 1 | United States |
| 6625-01-110-9909 | 2023-01-12 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-110-9909
Related Products | NSN 6625-01-110-9909
Technical Data | NSN 6625-01-110-9909
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | ELECTRONIC, SOLID STATE |
| INDICATOR TYPE | DIGITAL DISPLAY |
| DISPLAY TYPE | LIGHT EMITTING DIODE |
| DISPLAY DIGIT QUANTITY | 4-1/2 |
| MEASUREMENT RANGE | -199.99 TO 199.99 MILLIVOLTS SINGLE INDICATOR SINGLE RANGE |
| ACCURACY RATING | PORM 0.05 PCT OF READING PORM 0.01 PCT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| DISPLAY COLOR | RED SINGLE INDICATOR SINGLE RANGE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 1 PRINTED CIRCUIT |
| SENSITIVITY RATING | 4.0 MEGOHM PER VOLT |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 500.0 |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| OPERATING VOLTAGE RATING IN VOLTS | 4.8 DC MINIMUM AND 6.0 DC MAXIMUM |
| STYLE DESIGNATOR | C5 RECTANGULAR FLUSH MTG |

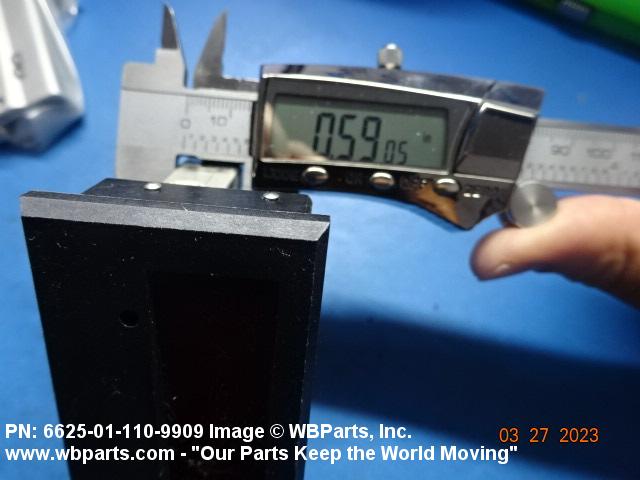

| METER BODY HEIGHT BEHIND MOUNTING FLANGE | 1.230 INCHES NOMINAL |
| METER BODY WIDTH BEHIND MOUNTING FLANGE | 2.760 INCHES NOMINAL |

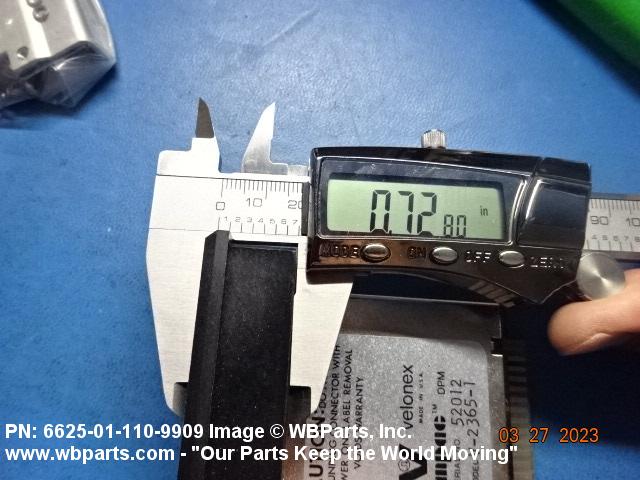

| METER DEPTH BEHIND MOUNTING FLANGE | 2.710 INCHES NOMINAL |

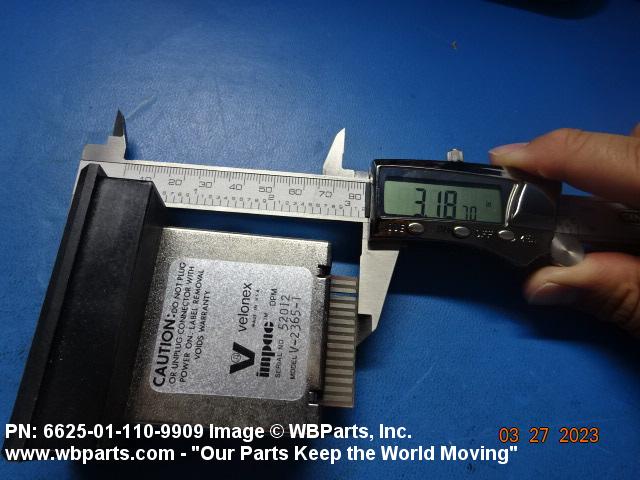

| OVERALL HEIGHT | 1.520 INCHES NOMINAL |

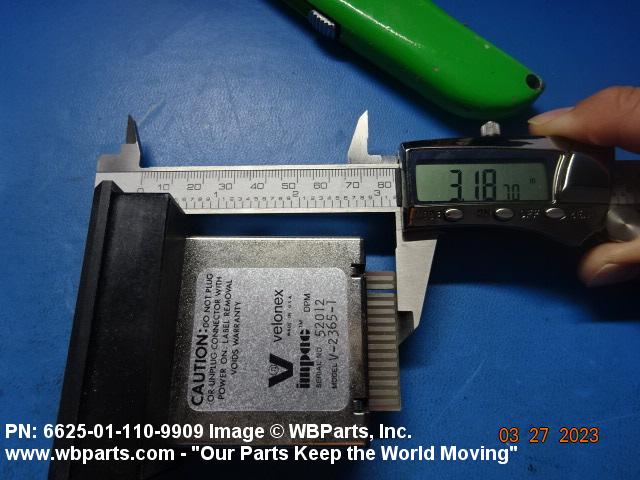

| OVERALL LENGTH | 3.300 INCHES NOMINAL |
| OVERALL WIDTH | 2.910 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BRACKET AND 2 SCREW |
| MATERIAL | PLASTIC AND STEEL |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT |
| FURNISHED ITEMS AND QUANTITY | SCREW 4; NUT 2; WASHER 8 |

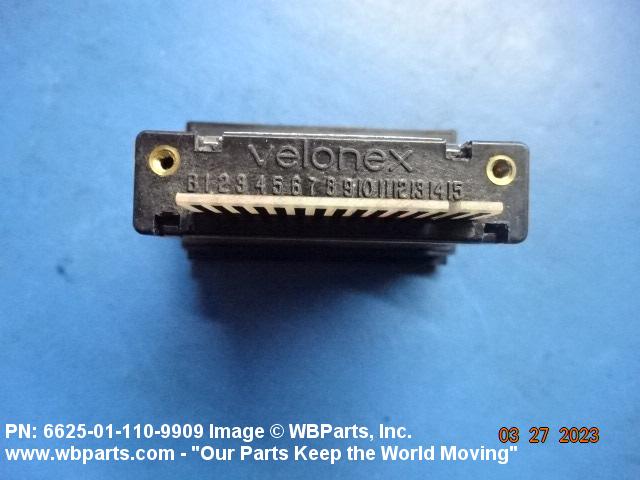

| SPECIAL MARKINGS | PINS ON CONNECTOR ARE INDESED BY ROW: A,1 THRU 15; B,1 THRU 15 |
| FEATURES PROVIDED | ZERO ADJUSTER |
| SPECIAL FEATURES | RUGGEDIZED |
| III FSC APPLICATION DATA | ELECTRICAL,ELECTRONIC PROPERITIES MEASURING AND TEST INSTUMENTS |
| III END ITEM IDENTIFICATION | 1290-01-306-7363 PANEL,CONTROL,ELECTRONIC |
