NSN 6625-01-112-2652 C92162, C9216-2, 4672
Product Details | VOLTAGE DEVIATION MONITOR
6625-01-112-2652 An item that accepts fixed voltages from test points in another component or set, and displays them in such a manner that deviation from a predetermined voltage value is readily apparent. The display is in terms of "good" and "bad" and is not in terms of voltage values. For items that display the same or similar information that is derived from a radio frequency signal input, see MONITOR, ERROR VOLTAGE. For items that indicate voltage values in either scaler or digital form, see VOLTMETER. See also INDICATOR (as modified).20614300037Guided Missile Remote Control Systems49350070Guided Missile Maintenance, Repair, and Checkout Specialized Equipment58400032Radar Equipment, Except Airborne58500051Visible and Invisible Light Communication Equipment61100028Electrical Control Equipment66250070Electrical and Electronic Properties Measuring and Testing Instruments
Part Alternates: C92162, C9216-2, 4672, 467-2, 6625-01-112-2652, 01-112-2652, 6625011122652, 011122652
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 30 APR 1981 | 01-112-2652 | 21746 ( MONITOR, VOLTAGE DEVIATION ) |

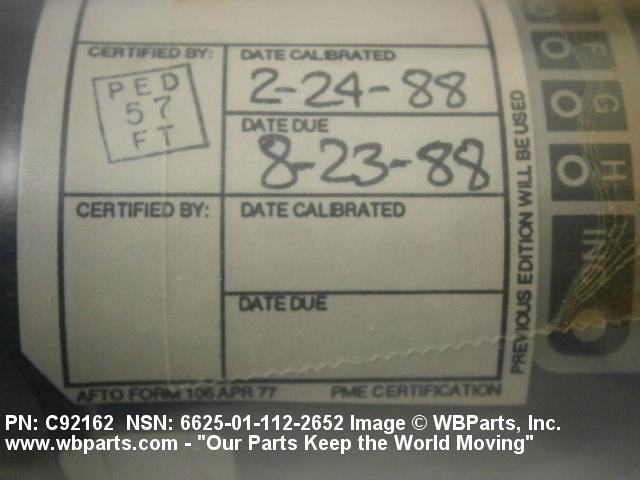

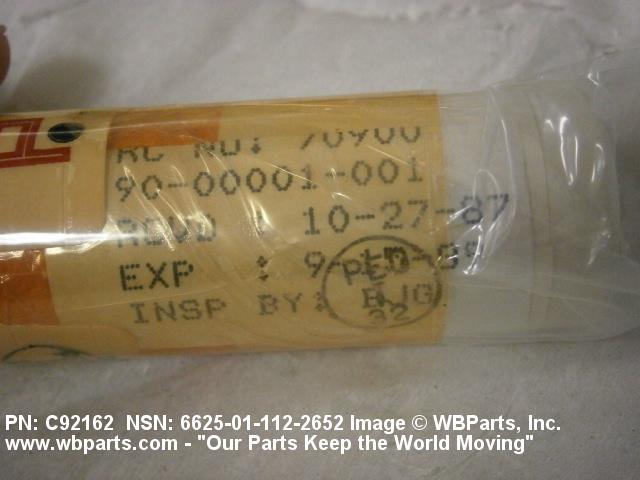

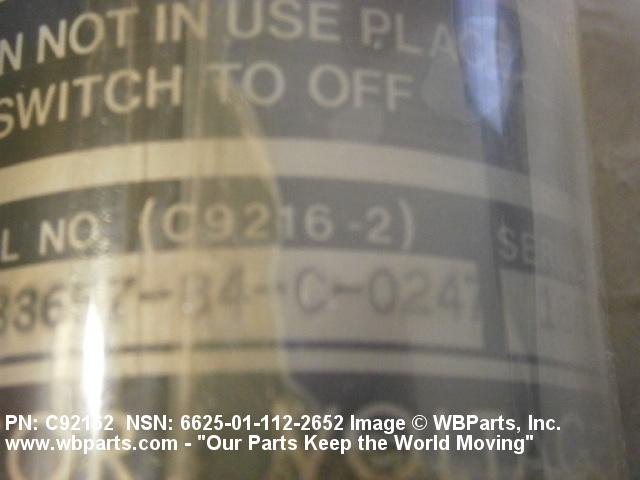

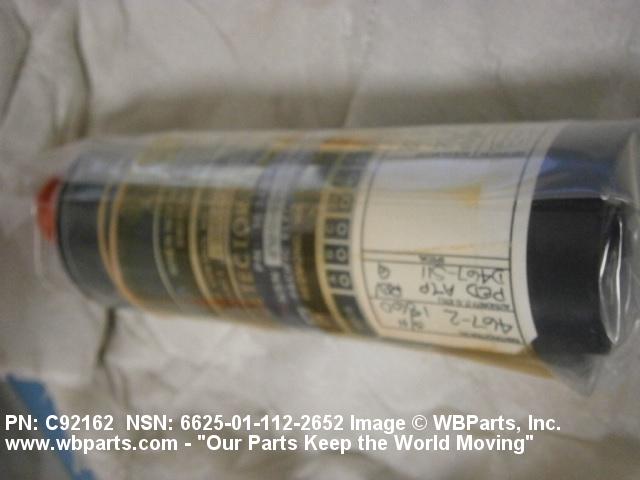

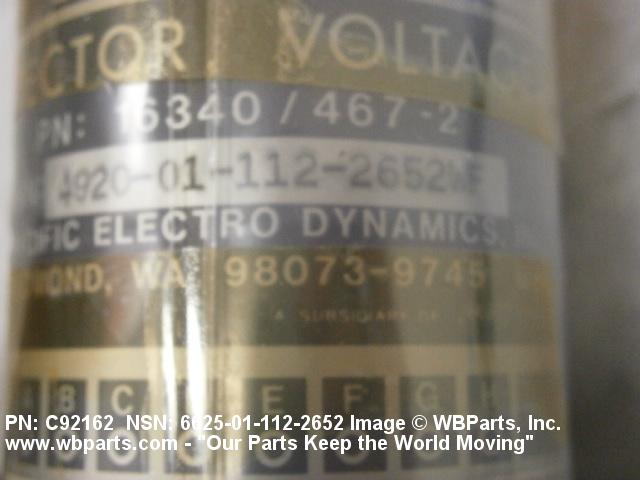

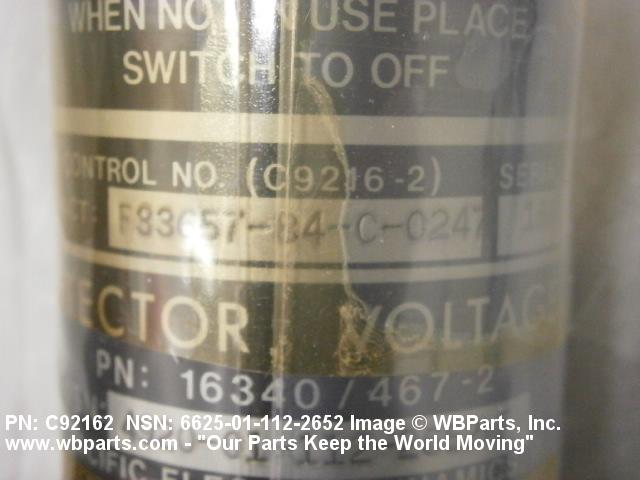

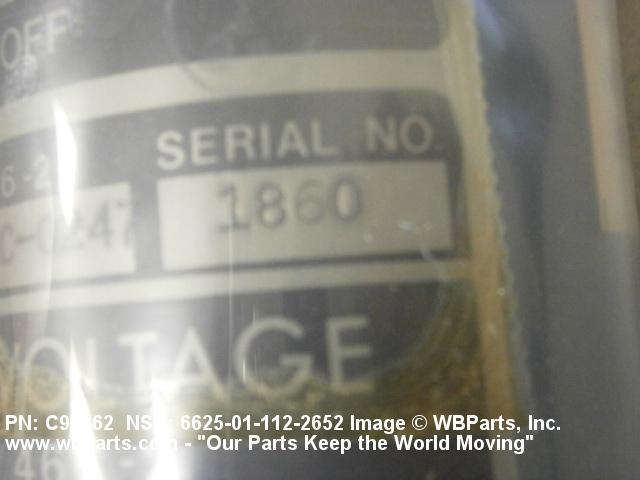

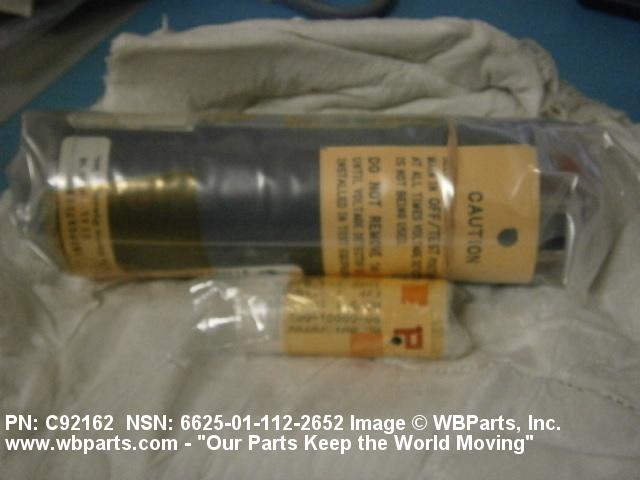

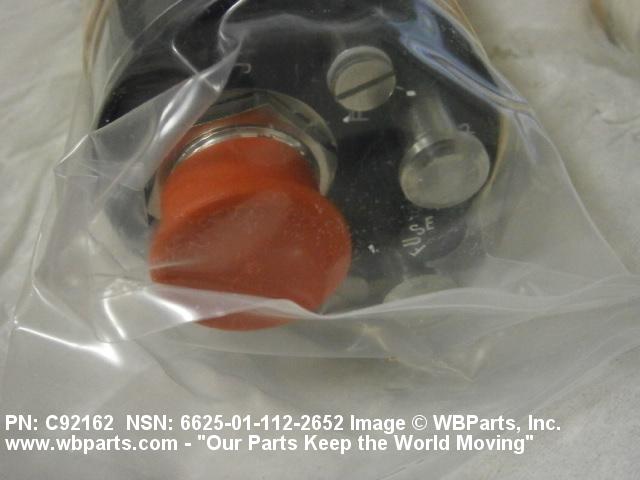

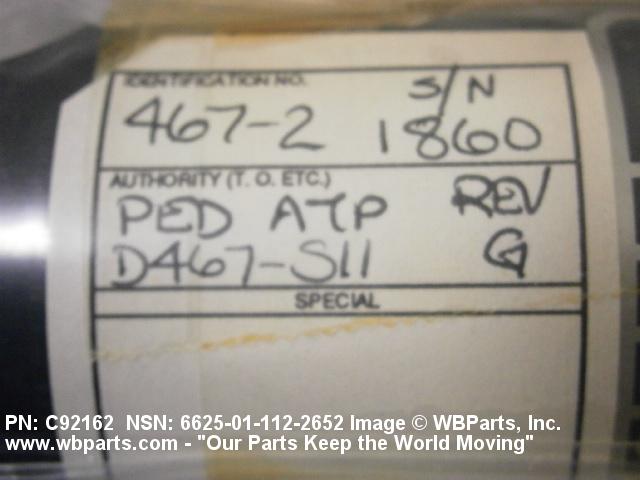

Drawings & Photos | NSN 6625-01-112-2652
Demand History | NSN 6625-01-112-2652
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-112-2652 | 2018-10-302 | 1 | IL |
| 6625-01-112-2652 | 2012-03-74 | 1 | United States |
| 6625-01-112-2652 | 2012-03-72 | 1 | United States |
| 6625-01-112-2652 | 2011-10-304 | 1 | Netherlands |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-01-112-2652
Technical Data | NSN 6625-01-112-2652
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | 3 IRREGULAR |
| OVERALL LENGTH | 7.700 INCHES NOMINAL |
| OVERALL DIAMETER | 2.250 INCHES NOMINAL |

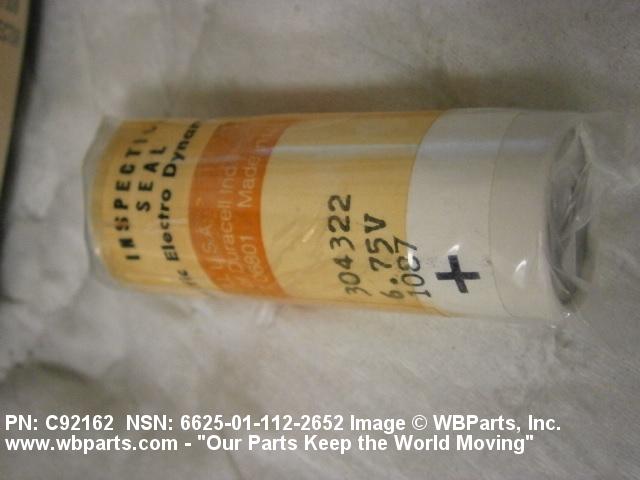

| FEATURES PROVIDED | INTERNAL BATTERY ACCOMMODATION |
| III END ITEM IDENTIFICATION | TEST SET PRELOAD,ARMAMENT CIRCUITS F-16 ACFT AGE |
| III FUNCTIONAL DESCRIPTION | FACILITATES ELECTRONIC AND ELECTRICAL CIRCUIT TESTING |
| MANUFACTURERS CODE | 21562 |
| DESIGN CONTROL REFERENCE | 467-2 |
Restrictions/Controls & Freight Information | NSN 6625-01-112-2652
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 9 | To be assigned to an item containing embedded ADPE that meets one or more of the definitions for codes 1 through 6. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
