NSN 6625-01-113-5421 MK701271, MK701-271, MR49WSPECDCMAH
Product Details | AMMETER
6625-01-113-5421 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: MK701271, MK701-271, MR49WSPECDCMAH, MIL-M-16034/2, MILM160342, 4951462, 4951-462, 6625-01-113-5421, 01-113-5421, 6625011135421, 011135421
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 29 MAY 1981 | 01-113-5421 | 16450 ( AMMETER ) |

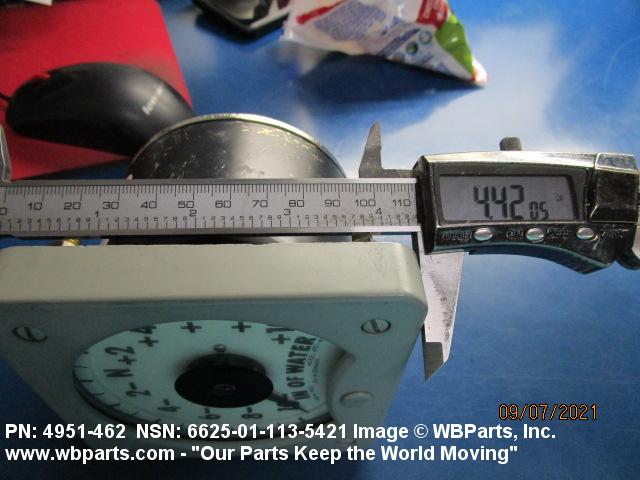

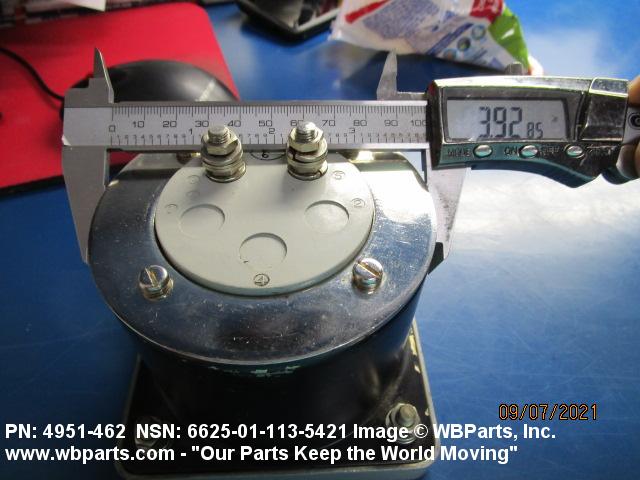

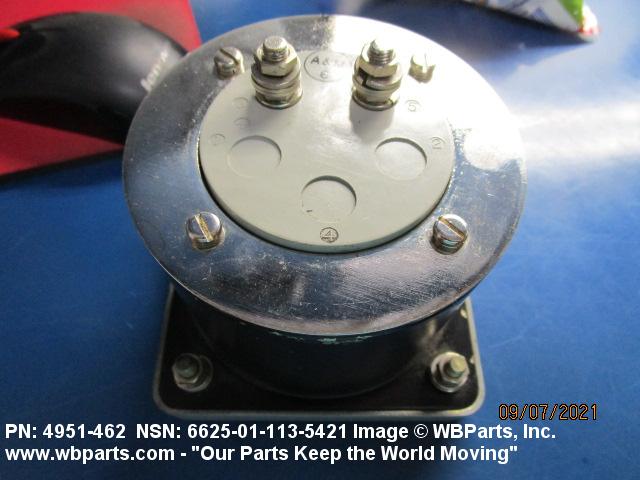

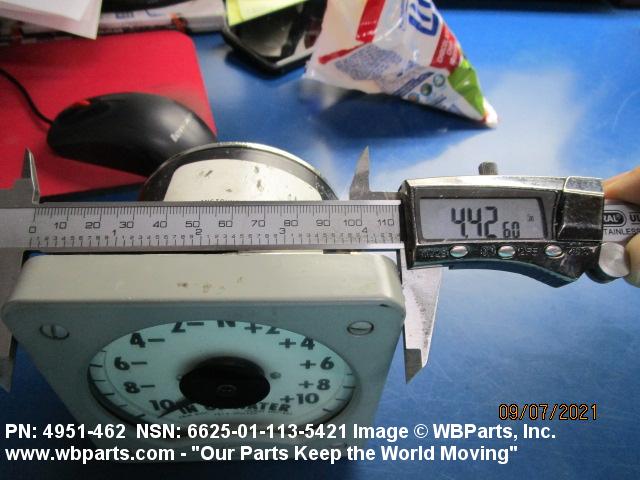

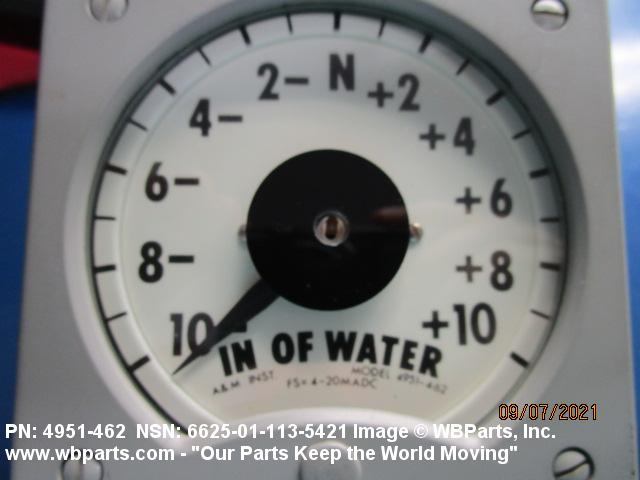

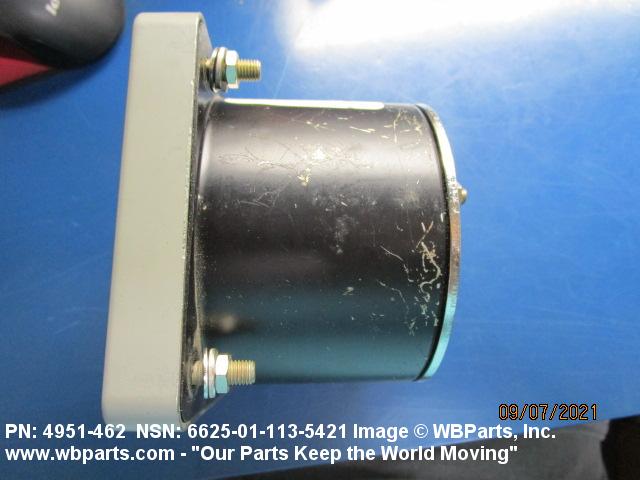

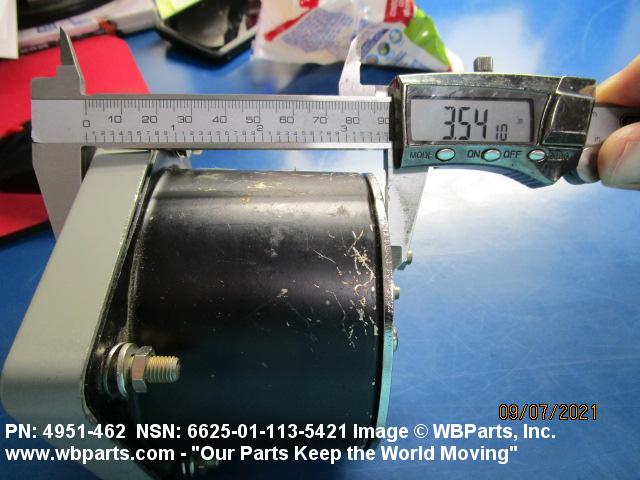

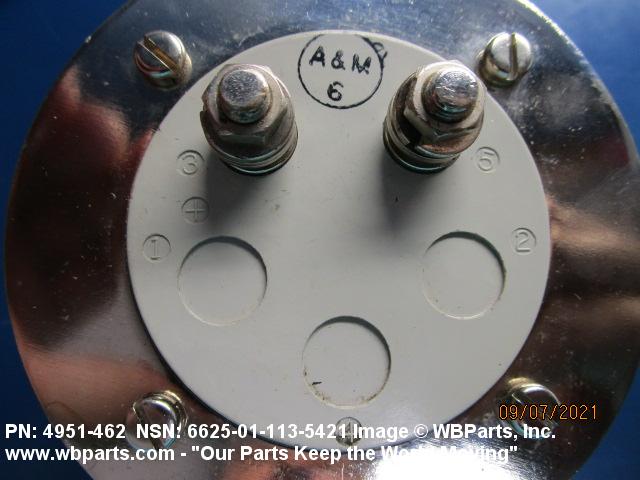

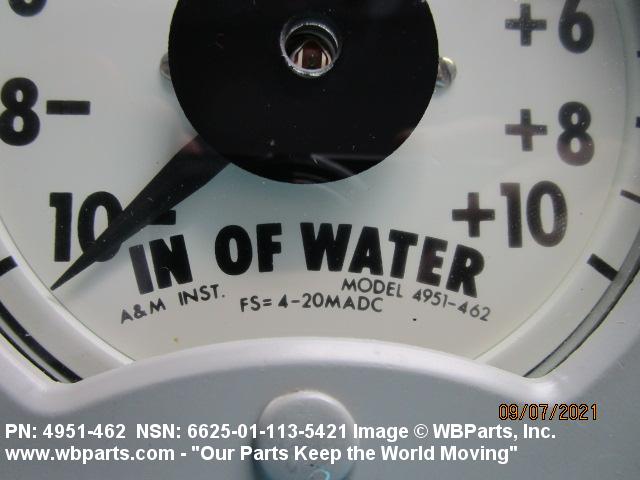

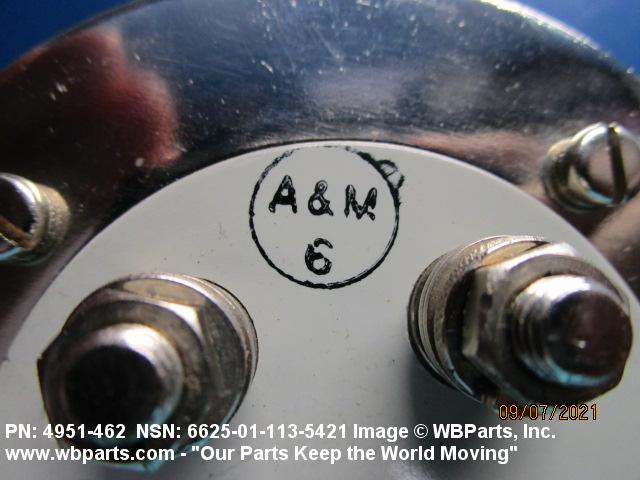

Drawings & Photos | NSN 6625-01-113-5421
Demand History | NSN 6625-01-113-5421
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4951-462 | 2023-11-332 | 21 | DIBBS |
| MK701-271 | 2023-11-332 | 21 | DIBBS |
| 4951462 | 2022-10-300 | 2 | UK |
| 4951-462 | 2022-04-101 | 25 | DIBBS |
| MK701-271 | 2022-04-101 | 25 | DIBBS |
| 4951-462 | 2022-03-90 | 25 | DIBBS |
| MK701-271 | 2022-03-90 | 25 | DIBBS |
| 4951-462 | 2022-01-06 | 8 | DIBBS |
| MK701-271 | 2022-01-06 | 8 | DIBBS |
| 4951-462 | 2021-12-360 | 8 | DIBBS |
| MK701-271 | 2021-12-360 | 8 | DIBBS |
| 4951-462 | 2021-09-245 | 5 | DIBBS |
| MK701-271 | 2021-09-245 | 5 | DIBBS |
| 6625-01-113-5421 | 2021-08-213 | 1 | US |
| 4951-462 | 2021-07-192 | 4 | DIBBS |
| MK701-271 | 2021-07-192 | 4 | DIBBS |
| 4951-462 | 2021-06-181 | 2 | DIBBS |
| MK701-271 | 2021-06-181 | 2 | DIBBS |
| 4951-462 | 2021-06-154 | 3 | DIBBS |
| MK701-271 | 2021-06-154 | 3 | DIBBS |
| 4951-462 | 2021-05-143 | 3 | DIBBS |
| MK701-271 | 2021-05-143 | 3 | DIBBS |
| 4951-462 | 2019-02-42 | 16 | DIBBS |
| MK701-271 | 2019-02-42 | 16 | DIBBS |
| 4951-462 | 2019-01-31 | 16 | DIBBS |
| MK701-271 | 2019-01-31 | 16 | DIBBS |
| 6625-01-113-5421 | 2018-07-190 | 10 | DIBBS |
| 6625-01-113-5421 | 2018-06-177 | 10 | DIBBS |
| 6625-01-113-5421 | 2018-04-116 | 4 | DIBBS |
| 6625-01-113-5421 | 2017-12-341 | 3 | DIBBS |
| 6625-01-113-5421 | 2017-03-81 | 8 | DIBBS |
| 6625-01-113-5421 | 2017-02-33 | 3 | DIBBS |
| 6625-01-113-5421 | 2016-07-195 | 3 | DIBBS |
| 6625-01-113-5421 | 2011-03-66 | 7 | DIBBS |
| 6625-01-113-5421 | 2011-02-38 | 25 | DIBBS |
| 6625-01-113-5421 | 2011-01-18 | 12 | DIBBS |
| 6625-01-113-5421 | 2010-08-242 | 13 | DIBBS |
| 6625-01-113-5421 | 2010-05-133 | 27 | DIBBS |
| 6625-01-113-5421 | 2010-05-123 | 17 | DIBBS |
| 6625-01-113-5421 | 2010-03-71 | 13 | DIBBS |
| 6625-01-113-5421 | 2009-04-97 | 15 | DIBBS |
Cross Reference | NSN 6625-01-113-5421
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4951-462 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| MIL-M-16034/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MK701-271 | 0BZM1 | MKC ELECTRONICS, INC DBA M K ELECTRONICS |
| MR49WSPECDCMAH | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-113-5421
Related Products | NSN 6625-01-113-5421
Technical Data | NSN 6625-01-113-5421
| Characteristic | Specifications |
|---|---|
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | C2 RECTANGULAR FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 3.980 INCHES MAXIMUM |
| METER DEPTH BEHIND MOUNTING FLANGE | 9.000 INCHES MAXIMUM |
| OVERALL HEIGHT | 4.250 INCHES MINIMUM AND 4.750 INCHES MAXIMUM |
| OVERALL LENGTH | 11.000 INCHES MAXIMUM |
| OVERALL WIDTH | 4.250 INCHES MINIMUM AND 4.750 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED STUD |
| MOUNTING STUD DIAMETER | 0.250 INCHES NOMINAL |
| MOUNTING STUD LENGTH | 0.625 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E3 FOUR HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.376 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 2.376 INCHES NOMINAL |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | WASP CLASS LHD; SUBMARINE AUXILLARY AND MISCELLANOUS SYSTEMS; NIMITZ CLASS CVN; TARAWA CLASS LHA; MARS CLASS T-AFS 1; EMORY S. LAND CLASS AS; VIRGINIA CLASS CGN (41); WHIDBEY ISLAND CLASS LSD; SUPPLY CLASS AOE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-M-16034/2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MR49WSPECDCMAH |
Restrictions/Controls & Freight Information | NSN 6625-01-113-5421
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-01-113-5421
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
