NSN 6625-01-146-2100 AR2030AMPDC, AR2-0-30AMPDC, QAS25
Product Details | AMMETER
6625-01-146-2100 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: AR2030AMPDC, AR2-0-30AMPDC, QAS25, QAS-25, 00890067006, 944626, 94-462-6, 6625-01-146-2100, 01-146-2100, 6625011462100, 011462100
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 26 JAN 1983 | 01-146-2100 | 16450 ( AMMETER ) |

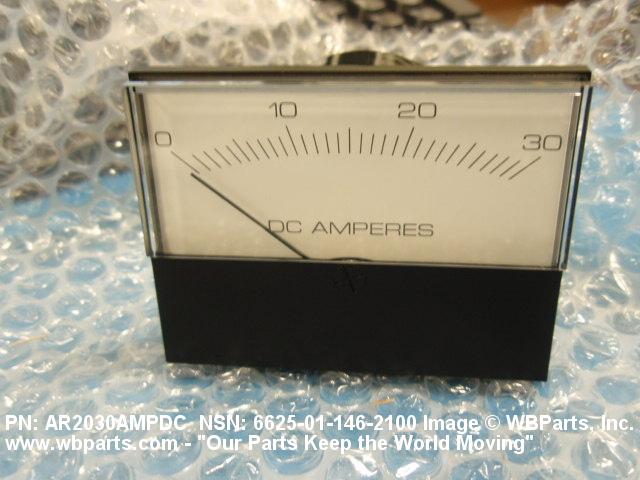

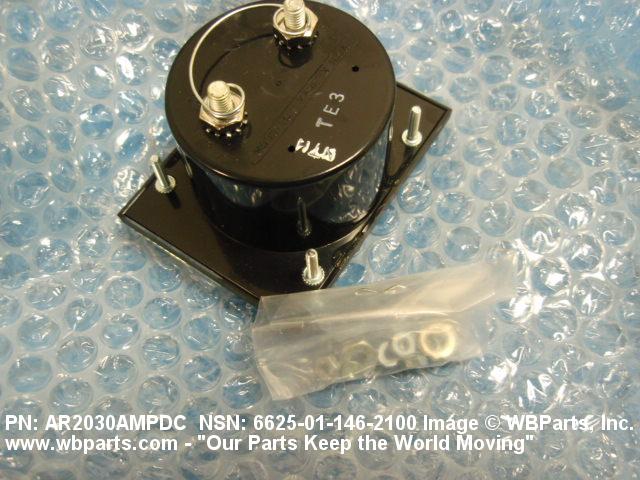

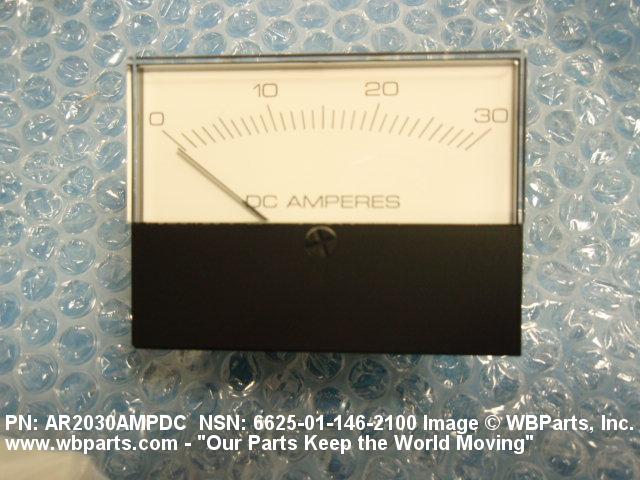

Drawings & Photos | NSN 6625-01-146-2100
Demand History | NSN 6625-01-146-2100
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 00890067006 | 2025-10-300 | 1 | DIBBS |
| 94-462-6 | 2025-10-300 | 1 | DIBBS |
| QAS-25 | 2025-10-300 | 1 | DIBBS |
| 00890067006 | 2025-10-287 | 1 | DIBBS |
| 94-462-6 | 2025-10-287 | 1 | DIBBS |
| QAS-25 | 2025-10-287 | 1 | DIBBS |
| 6625-01-146-2100 | 2024-04-115 | 1 | US |
| 6625-01-146-2100 | 2017-03-82 | 1 | DIBBS |
| 6625-01-146-2100 | 2011-05-123 | 1 | US |
| 6625-01-146-2100 | 2011-05-123 | 1 | US |
| 6625-01-146-2100 | 2010-09-253 | 2 | DIBBS |
| 6625-01-146-2100 | 2009-07-211 | 1 | United States |
Cross Reference | NSN 6625-01-146-2100
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-146-2100
Related Products | NSN 6625-01-146-2100
Technical Data | NSN 6625-01-146-2100
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 30.0 AMPERES, DC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 60 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 THREADED STUD |
| SENSITIVITY RATING | 30.0 MICROAMPERES |
| SCALE SELECTION METHOD | TERMINAL |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 1500.0 |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | C2 RECTANGULAR FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.125 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.300 INCHES NOMINAL |
| OVERALL HEIGHT | 2.272 INCHES NOMINAL |
| OVERALL LENGTH | 2.155 INCHES NOMINAL |
| OVERALL WIDTH | 2.990 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED STUD |
| MOUNTING STUD DIAMETER | 0.112 INCHES NOMINAL |
| MOUNTING STUD LENGTH | 0.424 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E3 FOUR HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.880 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.880 INCHES NOMINAL |
| MATERIAL | PLASTIC |
| SURFACE TREATMENT | PAINT |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | AIRTIGHT AND DUST RESISTANT AND FUNGUS RESISTANT AND HEAT RESISTANT AND HUMIDITY RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT AND WATER RESISTANT |
| FURNISHED ITEMS AND QUANTITY | NUT 6; LOCKWASHER 6; SEAL 1 |
| SPECIAL MARKINGS | ON BACK,SEALED DO NOT OPEN |
| FEATURES PROVIDED | MAGNETIC SHIELD AND |
Restrictions/Controls & Freight Information | NSN 6625-01-146-2100
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-01-146-2100
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
