NSN 6625-01-178-4020 MR4SW400SYH, H21951084, H2195-1084
Product Details | SYNCHRONIZATION INDICATOR
6625-01-178-4020 A component which presents visually the relationship between two different time intervals.20558200061Radio and Television Communication Equipment, Except Airborne58400032Radar Equipment, Except Airborne61100028Electrical Control Equipment6620000066250070Electrical and Electronic Properties Measuring and Testing Instruments
Part Alternates: MR4SW400SYH, H21951084, H2195-1084, H2195-1084 ITEM 165, H21951084ITEM165, H21951084PC165, H2195-1084PC165, K1241, K1-241, KI241, KI-241, KI-241 400HZ, KI241400HZ, MILS16104B, MIL-S-16104B, 186A235A01, 292B703A10, 497001, 497-001, 50101454ACAA, 50-101-454ACAA, 908306, 95328, 953-28, 6625-01-178-4020, 01-178-4020, 6625011784020, 011784020
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 05 MAY 1984 | 01-178-4020 | 16618 ( INDICATOR, SYNCHRONIZATION ) |

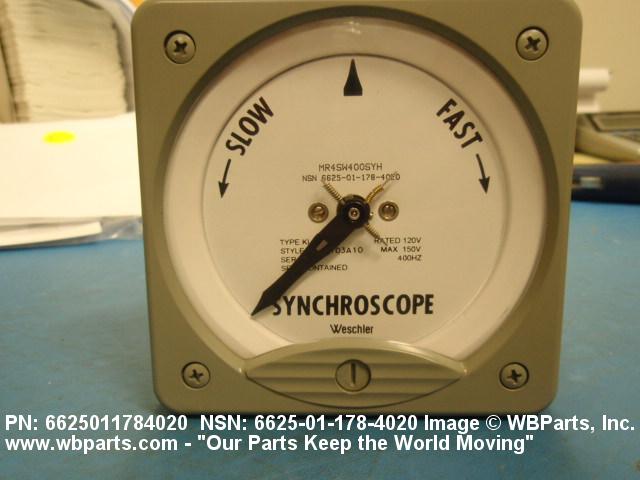

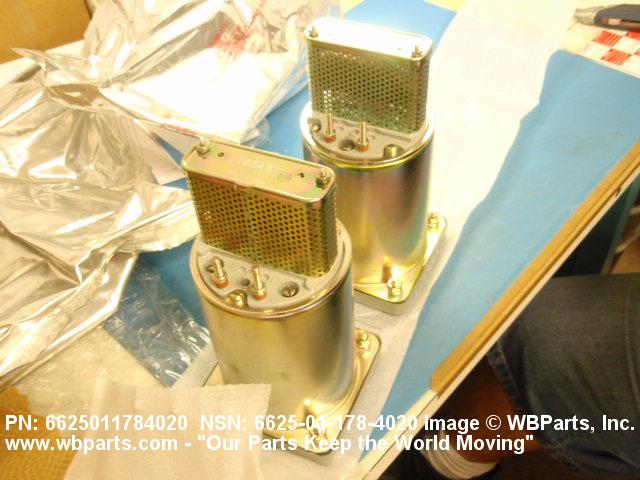

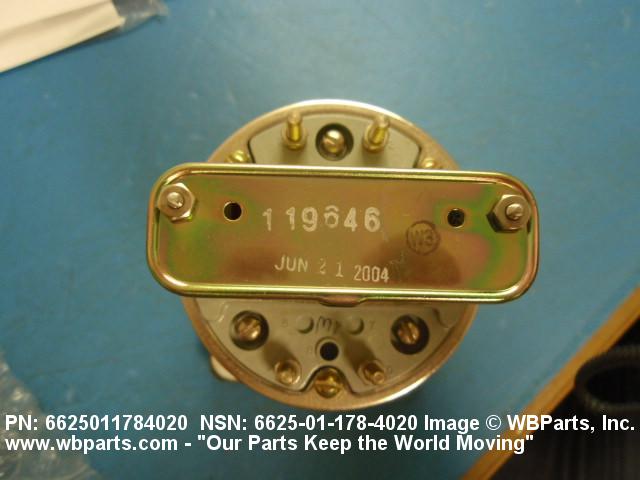

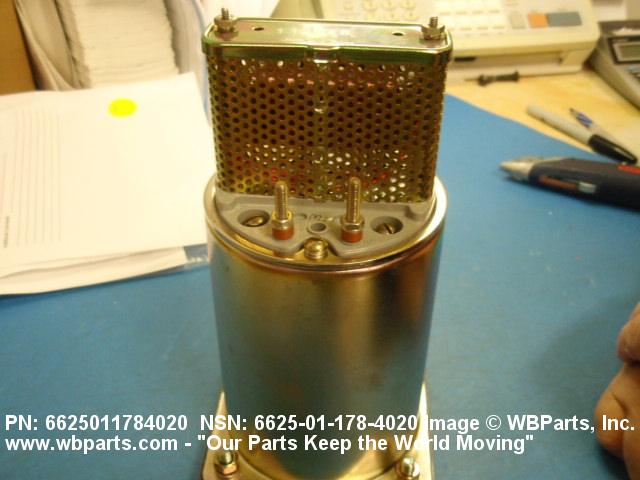

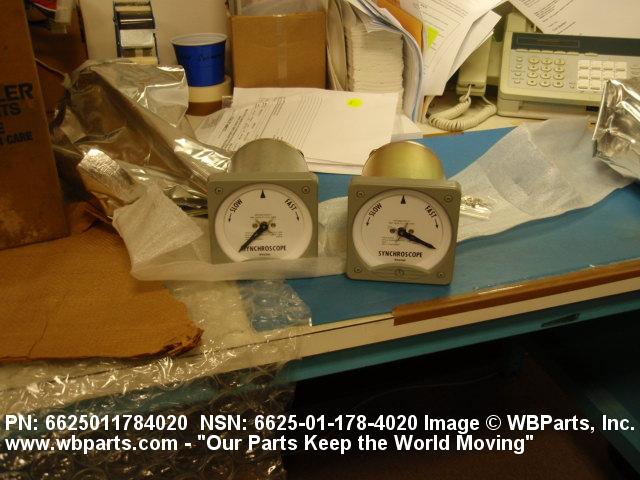

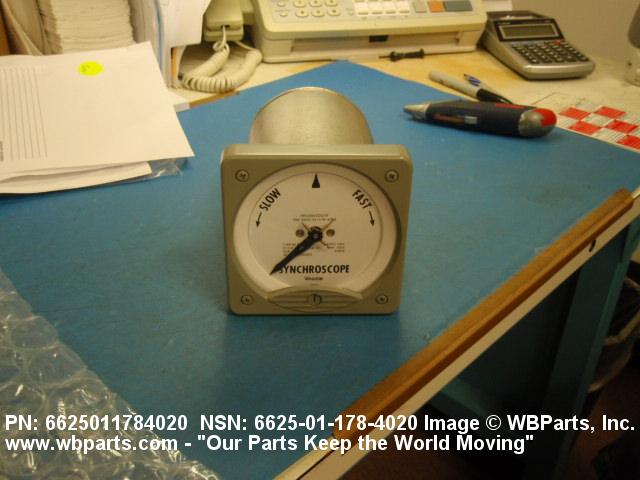

Drawings & Photos | NSN 6625-01-178-4020
Demand History | NSN 6625-01-178-4020
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 186A235A01 | 2010-01-22 | 1 | Canada |
| 6625-01-178-4020 | 2009-12-343 | 1 | United States |
| 186A235A01 | 2009-10-303 | 1 | United States |
| 186A235A01 | 2008-08-231 | 1 | US |
Cross Reference | NSN 6625-01-178-4020
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 186A235A01 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 292B703A10 | 6Z382 | HUGHES CORPORATION DBA WESCHLER INSTRUMENTS |
| 497-001 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| 50-101-454ACAA | 03497 | GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION |
| 908306 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 953-28 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| H2195-1084 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| H2195-1084 ITEM 165 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| H2195-1084PC165 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| K1-241 | 03486 | HOMEWOOD PRODUCTS CORPORATION |
| K1-241 | 11660 | WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT |
| K1-241 | 88416 | HUGHES CORPORATION DBA WESCHLER INSTRUMENTS |
| KI-241 | 6Z382 | HUGHES CORPORATION DBA WESCHLER INSTRUMENTS |
| KI-241 400HZ | 70882 | BAUER, INC. |
| MIL-S-16104B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MR4SW400SYH | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-178-4020
Related Products | NSN 6625-01-178-4020
Technical Data | NSN 6625-01-178-4020
| Characteristic | Specifications |
|---|---|
| CASE MATERIAL | PLASTIC |
| ELECTRICAL CONNECTION QUANTITY | 4 |
| PRESENTATION TYPE | DIAL |
| ACCURACY RATING | 2.0 ARC ANGLE IN DEGREES SINGLE INDICATOR SINGLE SCALE |
| SCALE DIVISION QUANTITY | 2 SINGLE INDICATOR SINGLE SCALE |
| POINTER TYPE | INDICATING SINGLE POINTER |
| POINTER PURPOSE | DIFFERENCE BETWEEN TWO SIGNALS |
| INDIVIDUAL MARKING | TWO ARROWS: TOP LEFT AND RIGHT; SLOW UNDER LEFT ARROW; FAST UNDER RIGHT ARROW |
| CURRENT TYPE | AC |
| AC VOLTAGE RATING | 120.0 VOLTS NOMINAL |
| PHASE | SINGLE |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED STUD |
| MOUNTING STUD DIAMETER | 0.250 INCHES NOMINAL |
| MOUNTING STUD LENGTH | 0.625 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | 3 FOUR HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.376 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 3.376 INCHES NOMINAL |
| LENGTH | 6.957 INCHES NOMINAL |
| WIDTH | 4.422 INCHES NOMINAL |
| HEIGHT | 4.422 INCHES NOMINAL |
| FEATURES PROVIDED | MOUNTING HARDWARE AND WATERPROOF |
| TEST DATA DOCUMENT | 81349-MIL-S-16104 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-16104 REV B GOVERNMENT SPECIFICATION |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-16104B |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MR4SW400SYH |
Restrictions/Controls & Freight Information | NSN 6625-01-178-4020
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-01-178-4020
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
