NSN 6625-01-204-2468 3244K27 002, 3244K27002, 8AW61LVD220
Product Details | VOLTMETER
6625-01-204-2468 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: 3244K27 002, 3244K27002, 8AW61LVD220, 6625-01-204-2468, 01-204-2468, 6625012042468, 012042468
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 23 MAR 1985 | 01-204-2468 | 16449 ( VOLTMETER ) |

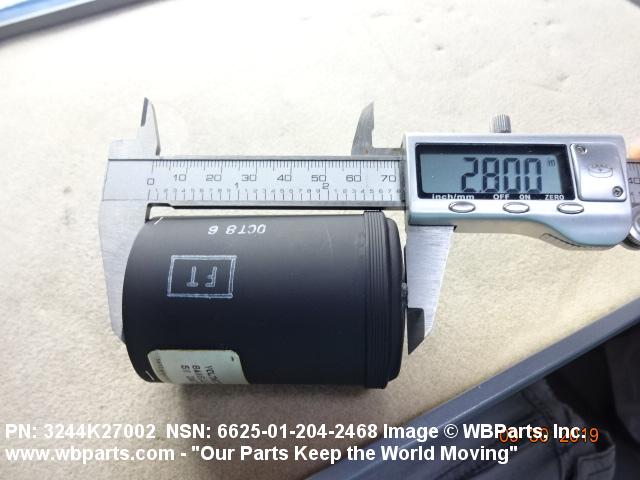

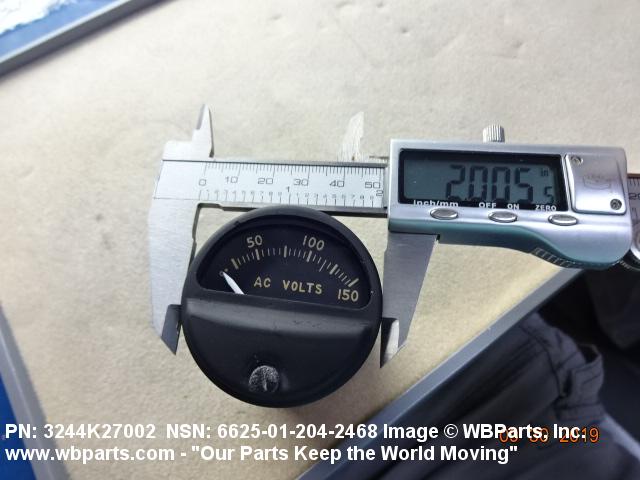

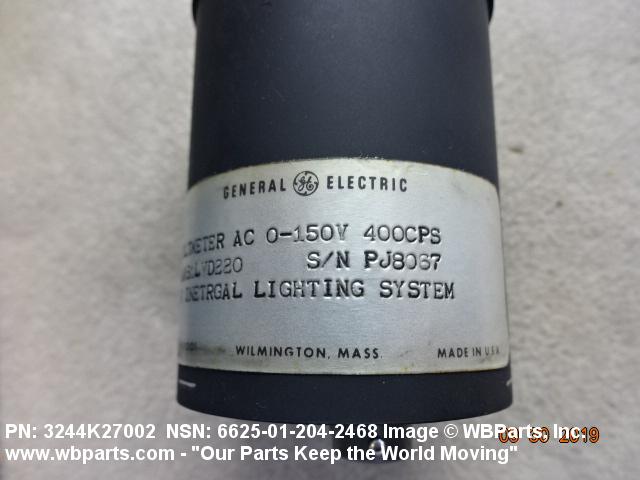

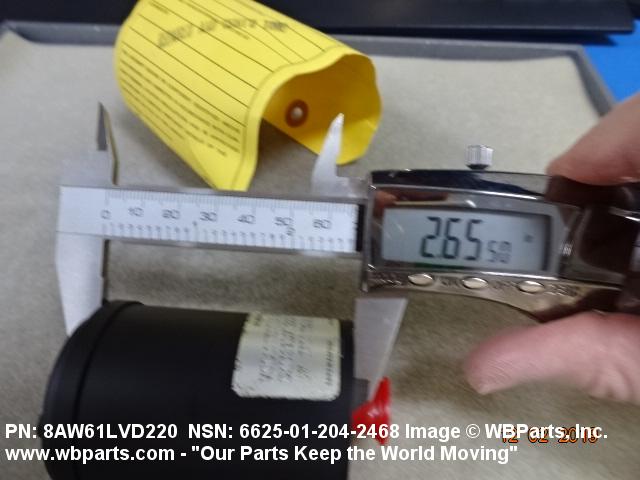

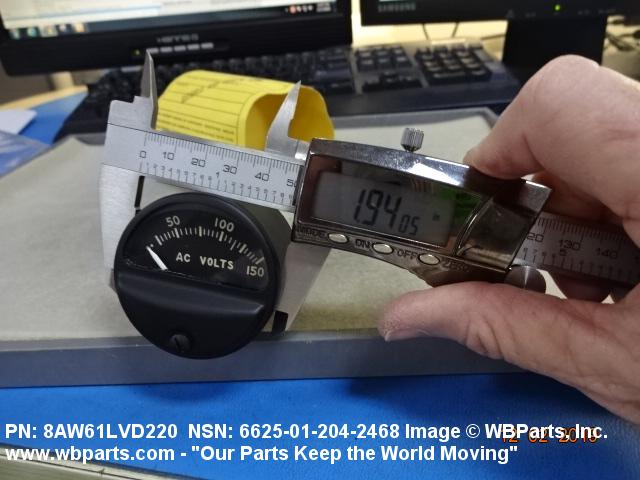

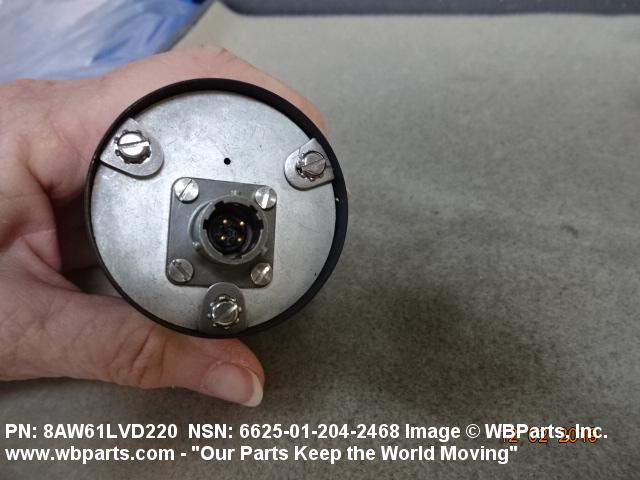

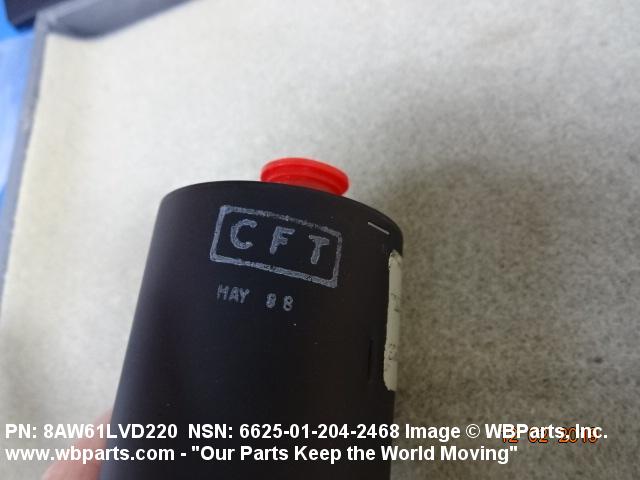

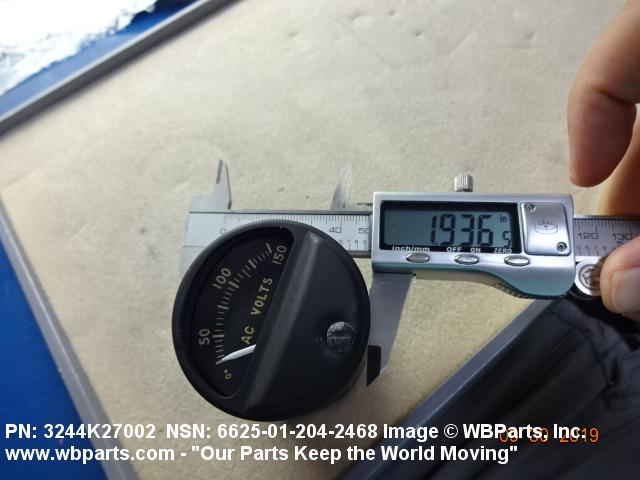

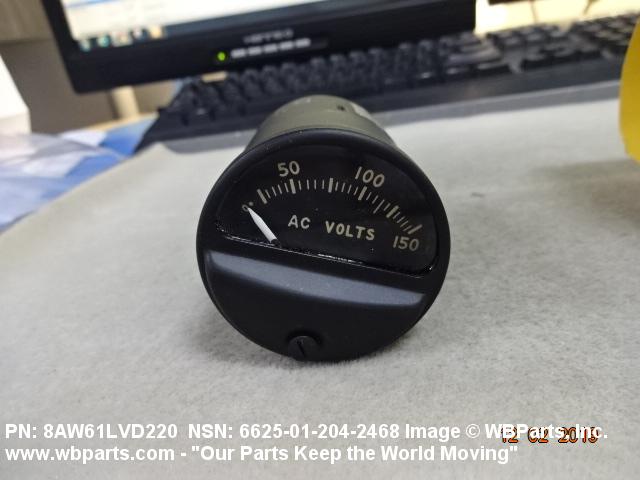

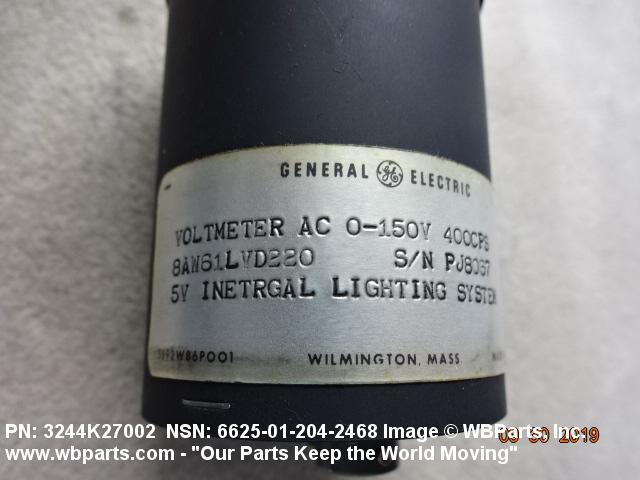

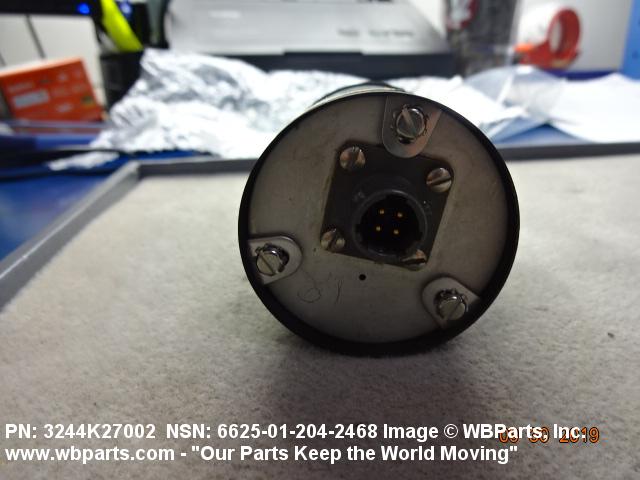

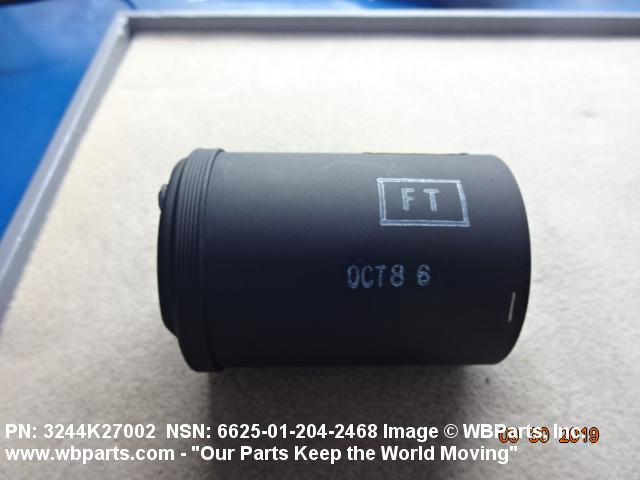

Drawings & Photos | NSN 6625-01-204-2468
Demand History | NSN 6625-01-204-2468
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-204-2468 | 2024-09-261 | 12 | US |
| 3244K27002 | 2020-05-132 | 1 | US |
| 3244K27002 | 2019-11-329 | 1 | United States |
| 8AW61LVD220 | 2019-11-329 | 1 | United States |
| 3244K27002 | 2019-09-255 | 2 | United States |
| 8AW61LVD220 | 2019-09-255 | 1 | United States |
| 8AW61LVD220 | 2019-09-255 | 6 | United States |
| 3244K27002 | 2019-03-86 | 2 | United States |
| 8AW61LVD220 | 2019-03-86 | 1 | United States |
| 8AW61LVD220 | 2019-03-86 | 6 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-204-2468
Related Products | NSN 6625-01-204-2468
Technical Data | NSN 6625-01-204-2468
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 150.0 VOLTS, AC SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 25 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| STYLE DESIGNATOR | C1 ROUND FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 1.930 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 2.437 INCHES NOMINAL |
| OVERALL DIAMETER | 2.000 INCHES NOMINAL |
| OVERALL LENGTH | 2.656 INCHES NOMINAL |
| SPECIAL FEATURES | 115 VOLT INDEX SHALL EXTEND BELOWOTHER MINOR GRADUATIONS BY 0.188 IN. |
| MANUFACTURERS CODE | 97424 |
| DESIGN CONTROL REFERENCE | 8AW61LVD220 |
Restrictions/Controls & Freight Information | NSN 6625-01-204-2468
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-01-204-2468
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | UC | TG:C-5A GALAXY |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
