NSN 6625-01-210-6583 59.7714, 597714, 61819419
Product Details | VOLTMETER
6625-01-210-6583 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: 59.7714, 597714, 61819419, 618-19419, 8314912, 83-14912, 6625-01-210-6583, 01-210-6583, 6625012106583, 012106583
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 15 JUN 1985 | 01-210-6583 | 16449 ( VOLTMETER ) |

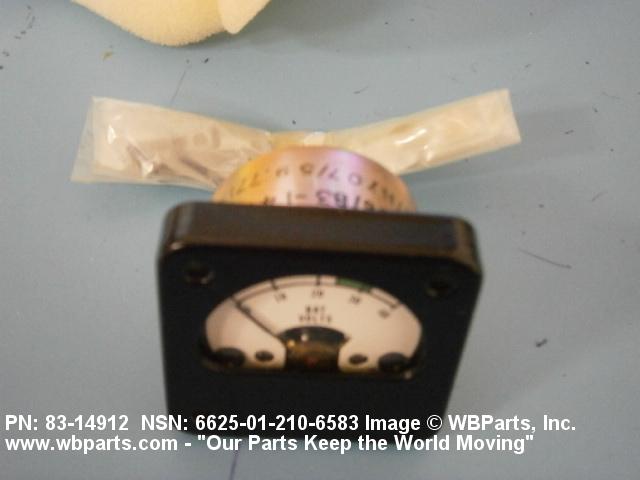

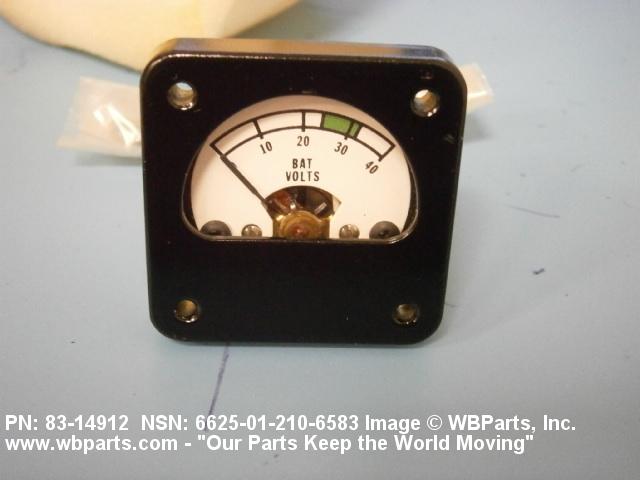

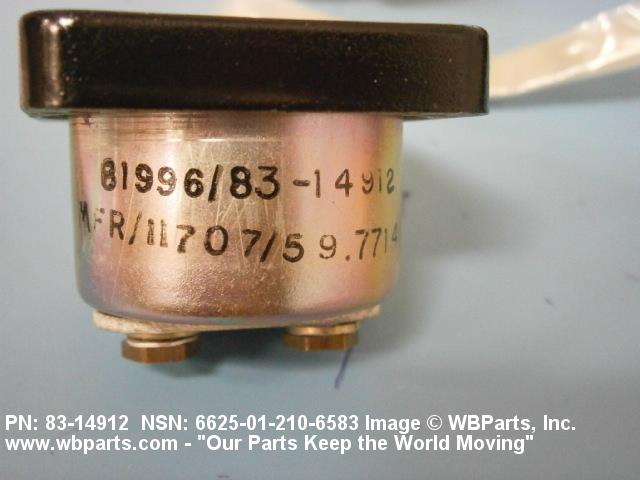

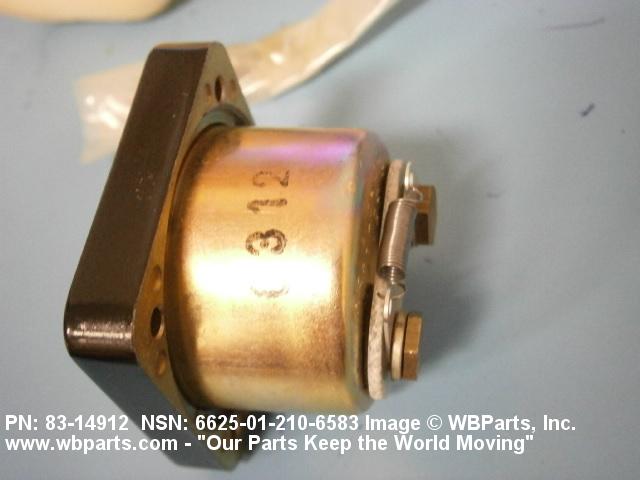

Drawings & Photos | NSN 6625-01-210-6583
Demand History | NSN 6625-01-210-6583
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 59.7714 | 2025-10-296 | 9 | DIBBS |
| 618-19419 | 2025-10-296 | 9 | DIBBS |
| 83-14912 | 2025-10-296 | 9 | DIBBS |
| 59.7714 | 2025-02-37 | 17 | DIBBS |
| 618-19419 | 2025-02-37 | 17 | DIBBS |
| 83-14912 | 2025-02-37 | 17 | DIBBS |
| 59.7714 | 2024-02-60 | 13 | DIBBS |
| 618-19419 | 2024-02-60 | 13 | DIBBS |
| 83-14912 | 2024-02-60 | 13 | DIBBS |
| 8314912 | 2023-07-187 | 2 | United States |
| 59.7714 | 2022-03-76 | 23 | DIBBS |
| 618-19419 | 2022-03-76 | 23 | DIBBS |
| 83-14912 | 2022-03-76 | 23 | DIBBS |
| 59.7714 | 2021-01-03 | 24 | DIBBS |
| 618-19419 | 2021-01-03 | 24 | DIBBS |
| 83-14912 | 2021-01-03 | 24 | DIBBS |
| 59.7714 | 2020-10-294 | 26 | DIBBS |
| 618-19419 | 2020-10-294 | 26 | DIBBS |
| 83-14912 | 2020-10-294 | 26 | DIBBS |
| 59.7714 | 2019-08-213 | 31 | DIBBS |
| 618-19419 | 2019-08-213 | 31 | DIBBS |
| 83-14912 | 2019-08-213 | 31 | DIBBS |
| 6625-01-210-6583 | 2018-05-149 | 29 | DIBBS |
| 6625-01-210-6583 | 2018-05-136 | 29 | DIBBS |
| 6625-01-210-6583 | 2018-03-74 | 23 | DIBBS |
| 6625-01-210-6583 | 2018-03-63 | 23 | DIBBS |
| 6625-01-210-6583 | 2017-05-135 | 32 | DIBBS |
| 6625-01-210-6583 | 2016-12-355 | 31 | DIBBS |
| 6625-01-210-6583 | 2016-08-240 | 15 | DIBBS |
| 8314912 | 2016-06-154 | 1 | US |
| 6625-01-210-6583 | 2015-10-300 | 71 | DIBBS |
| 6625-01-210-6583 | 2015-10-286 | 71 | DIBBS |
| 61819419 | 2015-10-280 | 5 | United States |
| 6625-01-210-6583 | 2013-07-198 | 1 | US |
| 6625-01-210-6583 | 2012-12-352 | 75 | DIBBS |
| 6625-01-210-6583 | 2012-02-58 | 1 | United States |
| 6625-01-210-6583 | 2011-10-280 | 77 | DIBBS |
| 6625-01-210-6583 | 2011-04-109 | 78 | DIBBS |
| 6625-01-210-6583 | 2010-03-64 | 183 | DIBBS |
| 6625-01-210-6583 | 2009-03-72 | 120 | DIBBS |
| 6625-01-210-6583 | 2008-10-281 | 70 | DIBBS |
| 6625-01-210-6583 | 2008-03-63 | 71 | DIBBS |
| 6625-01-210-6583 | 2007-11-323 | 44 | DIBBS |
| 6625-01-210-6583 | 2007-05-126 | 35 | DIBBS |
Cross Reference | NSN 6625-01-210-6583
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 59.7714 | 11707 | IDEAL PRECISION METER CO |
| 618-19419 | 77221 | PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY |
| 83-14912 | 11707 | IDEAL PRECISION METER CO |
| 83-14912 | 30554 | DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER |
| 83-14912 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S |
| 83-14912 | 63631 | BAE SYSTEMS CONTROLS INC. |
| 83-14912 | 81996 | U S ARMY AVIATION AND MISSILE COMMAND |
| 83-14912 | 90598 | ENGINEERED AIR SYSTEMS INC. DBA DRS SUSTAINMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-210-6583
Related Products | NSN 6625-01-210-6583
Technical Data | NSN 6625-01-210-6583
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| INDICATOR TYPE | DIAL W/POINTER |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 4 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING IRON VANE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDER LUG |
| SENSITIVITY RATING | 40.0 VOLTS |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | C2 RECTANGULAR FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 1.510 INCHES MAXIMUM |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.000 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.810 INCHES MAXIMUM |
| OVERALL LENGTH | 1.625 INCHES MAXIMUM |
| OVERALL WIDTH | 1.810 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SCREW AND 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E3 FOUR HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.306 INCHES MINIMUM AND 1.318 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.306 INCHES MINIMUM AND 1.318 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 6625-01-210-6583
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-01-210-6583
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
