NSN 6625-01-232-1753 DM3100U21, DM-3100U2-1, DN3100U2
Product Details | VOLTMETER
6625-01-232-1753 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: DM3100U21, DM-3100U2-1, DN3100U2, DN3100-U2, 4320471001, 432-0471-001, 6625-01-232-1753, 01-232-1753, 6625012321753, 012321753
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 09 MAY 1986 | 01-232-1753 | 16449 ( VOLTMETER ) |

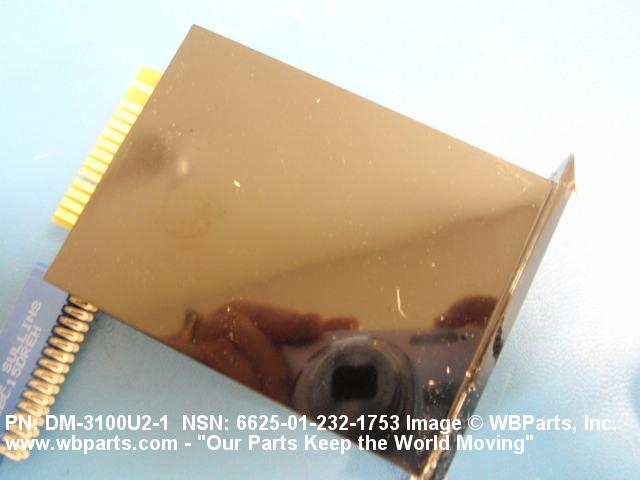

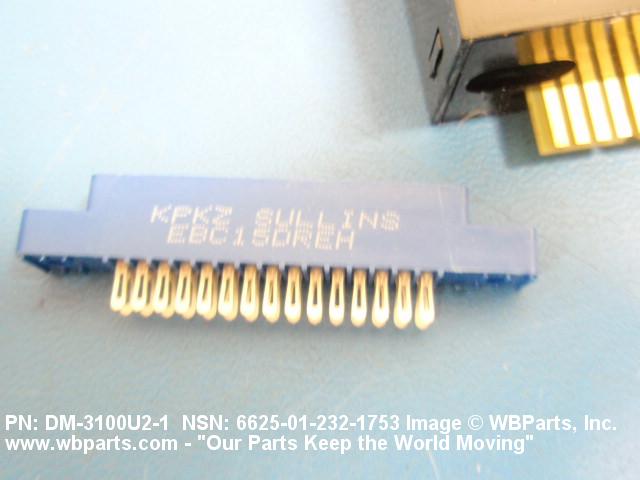

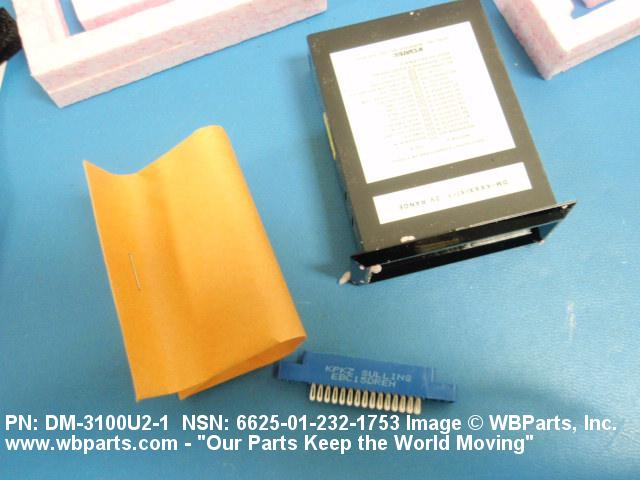

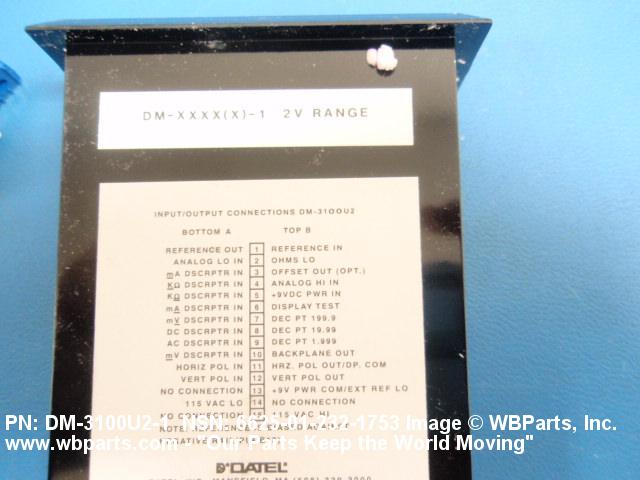

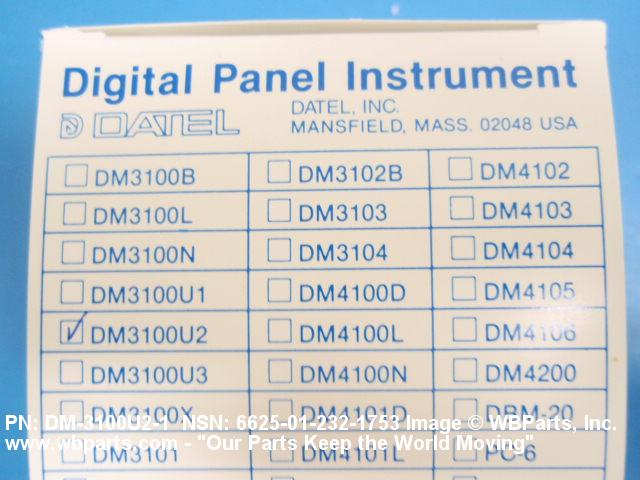

Drawings & Photos | NSN 6625-01-232-1753
Demand History | NSN 6625-01-232-1753
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-232-1753 | 2016-03-91 | 5 | DIBBS |
| 6625-01-232-1753 | 2016-03-80 | 5 | DIBBS |
| 6625-01-232-1753 | 2010-08-242 | 2 | DIBBS |
| 6625-01-232-1753 | 2010-02-50 | 1 | United States |
| 6625-01-232-1753 | 2010-02-43 | 1 | United States |
| 6625-01-232-1753 | 2010-02-43 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-232-1753
Related Products | NSN 6625-01-232-1753
Technical Data | NSN 6625-01-232-1753
| Characteristic | Specifications |
|---|---|
| III INSTALLATION DESIGN | PANEL |
| INDICATOR TYPE | DIGITAL DISPLAY |

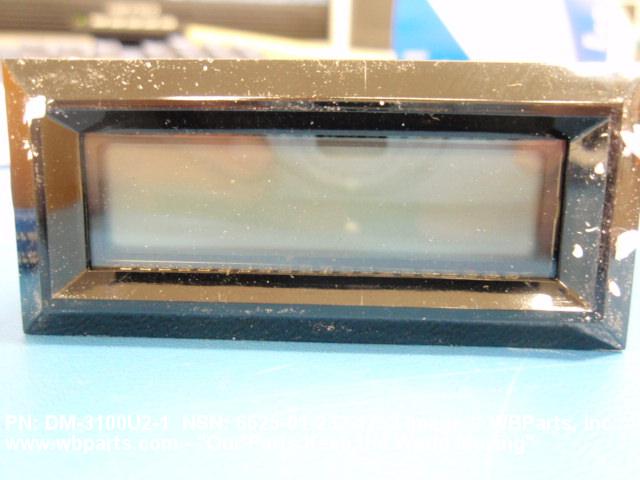

| DISPLAY TYPE | LIQUID CRYSTAL |
| DISPLAY DIGIT QUANTITY | 3-1/2 |
| MEASUREMENT RANGE | -1.999 TO 1.999 VOLTS, DC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY RATING | PORM 0.1 PCT OF READING PORM 1 COUNT SINGLE INDICATOR SINGLE RANGE |
| DISPLAY COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |

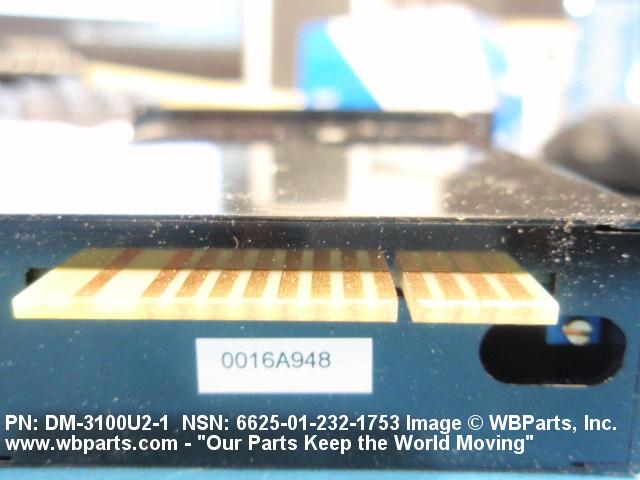

| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 PRINTED CIRCUIT |
| SCALE SELECTION METHOD | TERMINAL |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 175.0 |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| OPERATING VOLTAGE RATING IN VOLTS | 115.0 AC NOMINAL |
| FREQUENCY RATING | 47.0 HERTZ MINIMUM AND |
| PHASE | SINGLE |
| STYLE DESIGNATOR | RECTANGULAR FLUSH MTG |
| METER BODY HEIGHT BEHIND MOUNTING FLANGE | 0.940 INCHES NOMINAL |
| METER BODY WIDTH BEHIND MOUNTING FLANGE | 2.531 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 3.340 INCHES NOMINAL |
| OVERALL HEIGHT | 1.320 INCHES NOMINAL |
| OVERALL LENGTH | 4.250 INCHES NOMINAL |
| OVERALL WIDTH | 2.920 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 BRACKET AND |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| FEATURES PROVIDED | ZERO ADJUSTER |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | TERMINATION SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 6625-01-232-1753
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
