NSN 6630-00-418-5225 00-418-5225, 004185225
Product Details | COMPARATIVE COLORIMETER
6630-00-418-5225 Excludes COLORIMETER, PHOTOELECTRIC.
Part Alternates: 6630-00-418-5225, 00-418-5225, 6630004185225, 004185225
Instruments and Laboratory Equipment | Chemical Analysis Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-418-5225 | 16886 ( COLORIMETER, COMPARATIVE ) |
Drawings & Photos | NSN 6630-00-418-5225
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6630-00-418-5225
Related Products | NSN 6630-00-418-5225
Technical Data | NSN 6630-00-418-5225
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | DUB0SCQ |
| INCLINED DESIGN FEATURE | INCLUDED |
| DIRECT READING FEATURE | INCLUDED |
| CUP QUANTITY | 4 |
| OPEN END INSIDE DIAMETER | 1.500 INCHES NOMINAL |
| OPEN END OUTSIDE DIAMETER | 1.531 INCHES NOMINAL |
| BOTTOM END OUTSIDE DIAMETER | 1.031 INCHES NOMINAL |
| PLUNGER MATERIAL | GLASS |
| PLUNGER LOWER END BEVEL | INCLUDED |
| BEVEL ANGLE IN DEG | 57.0 |
| PLUNGER OVERALL DIAMETER | 0.531 INCHES NOMINAL |
| PLUNGER LENGTH | 3.188 INCHES NOMINAL |
| PLUNGER CORRECT ALIGNMENT LOCATING PIN | INCLUDED |
| MICRO ATTACHMENT | NOT INCLUDED |
| CURRENT TYPE | AC/DC |
| LAMPHOLDER QUANTITY | 1 |
| LAMP QUANTITY | 1 |
| LAMP VOLTAGE RATING IN VOLTS | 115.0 |
| LAMP WATTAGE RATING IN WATTS | 15.0 |
| LAMP LUMINOSITY IN LUMENS | 140.0 |
| CURRENT RATING IN AMPS | 0.13 |

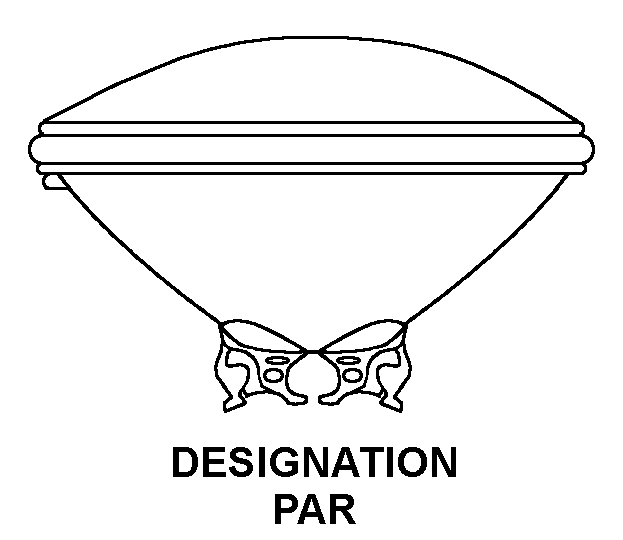

| LAMP BULB SHAPE STYLE | 11 DESIGNATION PAR |

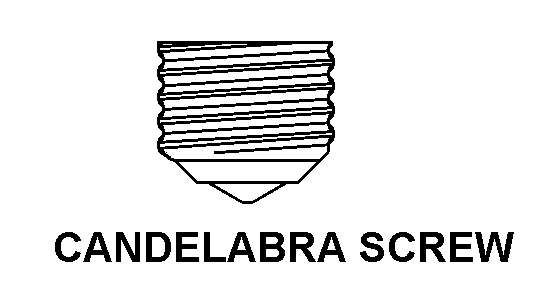

| LAMP BASE STYLE | 22B CANDELABRA SCREW |
| LAMP INDUSTRY NUMBER | 15S11/14 |
| LAMP TRANSPARENCY | CLEAR |
| CASE MATERIAL | WOOD |
| CASE LOCKING DEVICE | INCLUDED |
| INSCRIPTION | INCLUDED |
| LEGEND INSCRIPTION | CADUCEUS CENTERED BETWEEN THE LETTERS U AND S |
| FURNISHED ITEMS AND QUANTITY | 2 BOOKLET,INSTRUCTION; 2 LAMPS |
| III UNIT OF ISSUE WEIGHT | 2.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.118 CUBIC FEET |
Restrictions/Controls & Freight Information | NSN 6630-00-418-5225
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 014500 | APPARATUS CHEMICAL LABORATORY |
| Less than car load rating | F | 150 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | C | Chemical corps items and all other chemicals not covered in other classifications. When chemical item (as indicated by the DOT Proper Shipping Name) is sensitive as defined in Appendix A Section I of DoD 4500.32-R, Volume I, second position must be from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
