NSN 6640-00-010-8362 MILF36747, 29136966, 29136-966
Product Details | ERLENMEYER FLASK
6640-00-010-8362 A conical-shaped vessel with a flat bottom and a short neck. It may be graduated and have a mouth which will accommodate a stopper or screw cap.
Part Alternates: MILF36747, 29136966, 29136-966, 4103, 6640-00-010-8362, 00-010-8362, 6640000108362, 000108362
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 00-010-8362 | 16771 ( FLASK, ERLENMEYER ) |

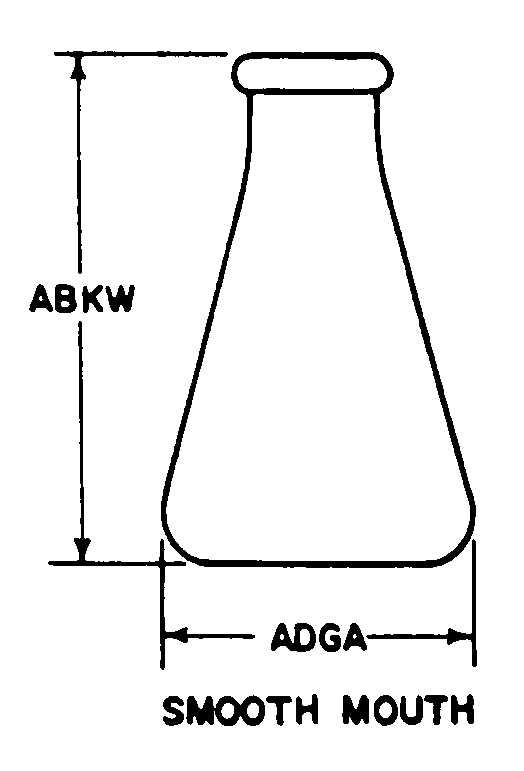

Drawings & Photos | NSN 6640-00-010-8362
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-00-010-8362
Technical Data | NSN 6640-00-010-8362
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC, POLYCARBONATE |
| STYLE DESIGNATOR | E27 SMOOTH MOUTH |
| OVERALL HEIGHT | 8.562 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 5.250 INCHES NOMINAL |
| CAPACITY RATING | 1000.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO CONTAIN |
| SCALE READING DIRECTION | BOTTOM TO TOP OUTSIDE SINGLE SCALE |
| SCALE GRADUATION UNIT | 50.0 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE GRADUATION UNIT RANGE | 200.0 TO 1000.0 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE MARKING | 50 ML GRADUATIONS |
| GRADUATION MARKING METHOD | MOLDED |
| CLOSURE TYPE ACCOMMODATED AND SIZE DESIGNATION | 9 RUBBER STOPPER MOUTH |
| PRIMARY CONTAINER TYPE | CARTON |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| UNIT PACKAGE TYPE | CARTON |
| SPECIAL FEATURES | AUTOCLAVABLE |
| NONDEFINITIVE SPEC/STD DATA | 3 SIZE |
| III INTERMEDIATE PACKAGE QUANTITY | 6 |
| III EXTERIOR CONTAINER QUANTITY | 24 |
| III UNIT OF ISSUE WEIGHT | 0.67 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 8.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.149 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 2.313 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FLASK ERLENMEYER GRADUATED PLASTIC 1000 ML |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILF36747 |
Restrictions/Controls & Freight Information | NSN 6640-00-010-8362
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
