NSN 6640-00-145-1300 MILC36611, TVC12, 00-145-1300
Product Details | SPECTROPHOTOMETER CUVETTE
6640-00-145-1300 A rectangular or round tubelike vessel of high optical quality that permits a desired light transmittance. It is designed to retain solution samples that are subjected to light of a known light path length so that the amount of light absorbance and transmittance can be determined. It may have an integral device and accessories for vacuum evacuation.
Part Alternates: MILC36611, TVC12, 6640-00-145-1300, 00-145-1300, 6640001451300, 001451300
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 23-MAY-69 | 00-145-1300 | 29264 ( CUVETTE, SPECTROPHOTOMETER ) |
Drawings & Photos | NSN 6640-00-145-1300
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-00-145-1300
Technical Data | NSN 6640-00-145-1300
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |

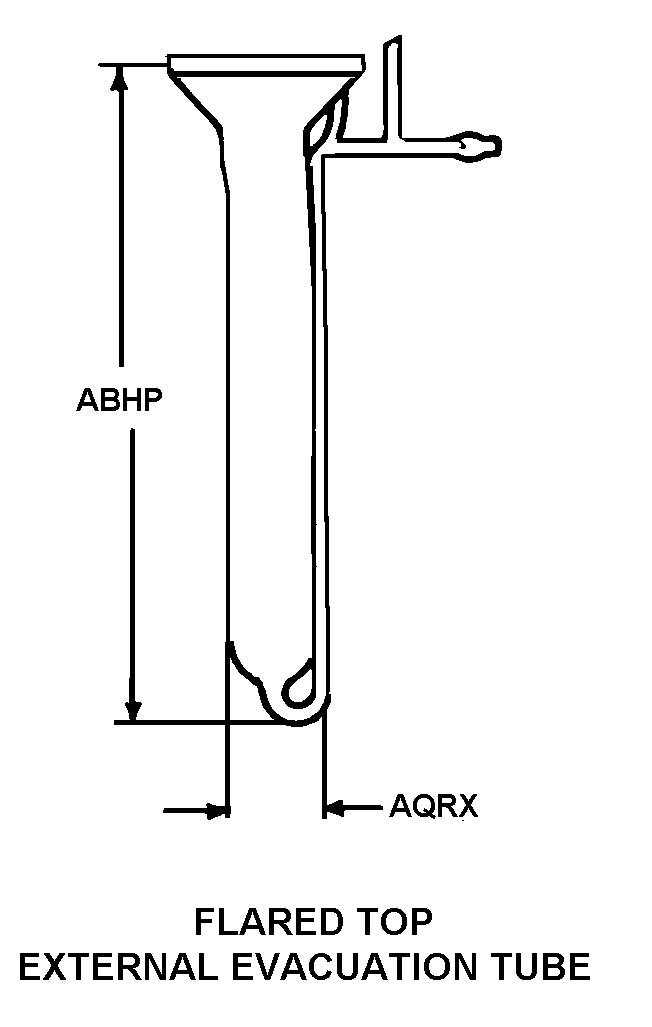

| STYLE DESIGNATOR | K1 FLARED TOP EXTERNAL EVACUATION TUBE |
| OVERALL LENGTH | 95.00 MILLIMETERS NOMINAL |
| TUBING OUTSIDE DIAMETER | 12.00 MILLIMETERS NOMINAL |
| CAPACITY RATING | NOT RATED |
| PRIMARY CONTAINER TYPE | CARTON |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| UNIT PACKAGE TYPE | CARTON |
| SPECIAL FEATURES | FUNNEL MOUTH; W/INTEGRAL EVACUATION TUBE AND TOUCH VALVE SUCTION CONTROL AND 6 FT LG PLASTIC TUBING TO CONNECT SUCTION VALVE TO CHECK VALVE; W/GLASS OR PLASTIC CONNECTOR FOR TUBE CONNECTIONS AND PLASTIC REDUCING CONNECTOR |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 2 SIZE |
| III INTERMEDIATE PACKAGE QUANTITY | 12 |
| III EXTERIOR CONTAINER QUANTITY | 12 |
| III UNIT OF ISSUE WEIGHT | 0.39 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 23.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.066 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 4.78 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CUVETTE SPECTROPHOTOMETER 12 BY 95 MM FUNNEL MOUTH |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC36611 |
Restrictions/Controls & Freight Information | NSN 6640-00-145-1300
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
