NSN 6640-00-259-9247 17452380, 17452-380, 210325
Product Details | LABORATORY BURET
6640-00-259-9247 A graduated tube, with a flow regulator, for delivering and/or regulating measured quantities of liquids or for measuring the liquids or gases received or discharged.20266300029Chemical Analysis Instruments66400033Laboratory Equipment and Supplies
Part Alternates: 17452380, 17452-380, 210325, 2103-25, 6640-00-259-9247, 00-259-9247, 6640002599247, 002599247
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 29 JUN 1973 | 00-259-9247 | 33386 ( BURET, LABORATORY ) |

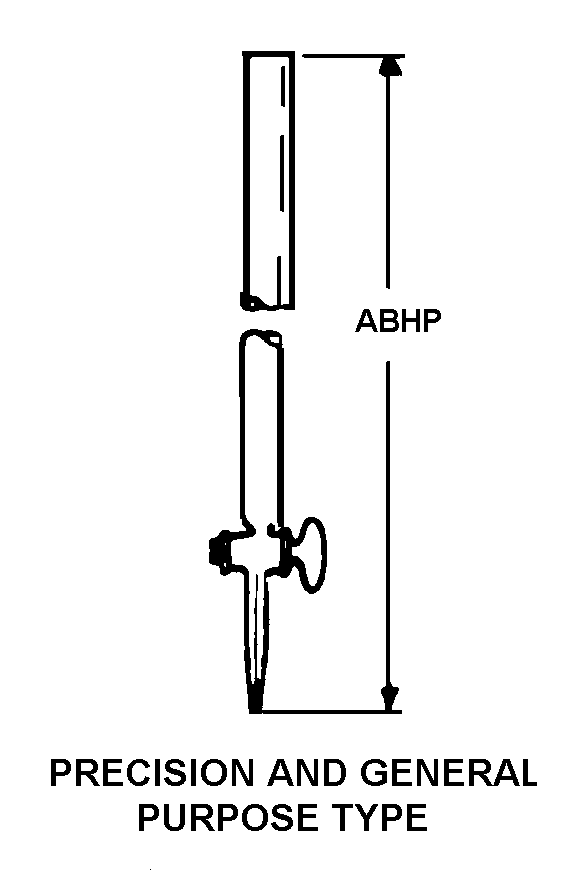

Drawings & Photos | NSN 6640-00-259-9247
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-00-259-9247
Technical Data | NSN 6640-00-259-9247
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |
| STYLE DESIGNATOR | L1 PRECISION AND GENERAL PURPOSE TYPE |
| OVERALL LENGTH | 560.00 MILLIMETERS NOMINAL |
| CAPACITY RATING | 25.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO DELIVER |
| SCALE READING DIRECTION | TOP TO BOTTOM INSIDE SINGLE SCALE |
| SCALE GRADUATION UNIT | 0.1 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE GRADUATION UNIT RANGE | 0.0 TO 25.0 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE MARKING | EVERY TENTH GRADUATION ON THE ML |
| GRADUATION MARKING METHOD | ETCHED |
| PRIMARY CONTAINER TYPE | BOX |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| UNIT PACKAGE TYPE | BOX |
| SPECIAL FEATURES | POLYTETRAFLUOROETHYLENE STOPCOCK |
Restrictions/Controls & Freight Information | NSN 6640-00-259-9247
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
