NSN 6640-00-426-0900 MS360925, MS36092-5, 1035822J
Product Details | LABORATORY FILTERING FUNNEL
6640-00-426-0900 An item with an integral porous or perforated plate, or with slits on the inside of a double wall.
Part Alternates: MS360925, MS36092-5, 1035822J, 10-358-22J, 10358L, 10-358L, 28400-1502, 36060150M, 36060-150M, 5220G16, 6640-00-426-0900, 00-426-0900, 6640004260900, 284001502, 004260900
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-426-0900 | 13458 ( FUNNEL, FILTERING, LABORATORY ) |

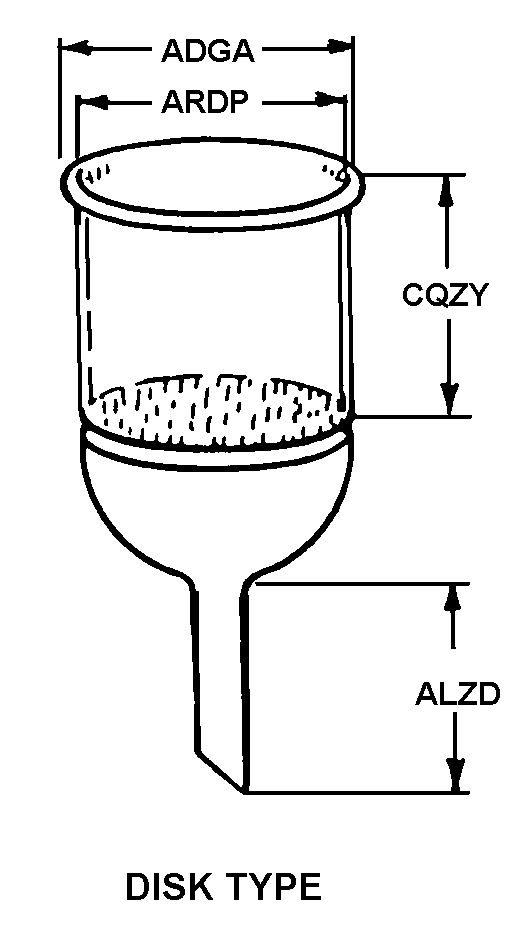

Drawings & Photos | NSN 6640-00-426-0900
Cross Reference | NSN 6640-00-426-0900
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-358-22J | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 10-358L | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 28400-1502 | 75278 | KIMBLE GLASS INC |
| 36060-150M | 2D830 | CORNING INCORPORATED DBA CORNING |
| 5220G16 | 59728 | THOMAS, ARTHUR H CO (INC) |
| MS36092-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-426-0900
Related Products | NSN 6640-00-426-0900
Technical Data | NSN 6640-00-426-0900
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | BUECHNER |
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |
| STYLE DESIGNATOR | F4 DISK TYPE |
| OVERALL OUTSIDE DIAMETER | ANY ACCEPTABLE |
| STEM LENGTH | 75.00 MILLIMETERS NOMINAL |
| DISK DIAMETER | 60.00 MILLIMETERS NOMINAL |
| DISTANCE FROM DISK TO TOP | 50.00 MILLIMETERS NOMINAL |
| FILTERING DISK TYPE AND SIZE | 14.0 MICRONS FIXED POROUS |
| CAPACITY RATING | 150.000 MILLILITERS NOMINAL |
| PRIMARY CONTAINER TYPE | CARTON |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| UNIT PACKAGE TYPE | CARTON |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS36092-5 |
Restrictions/Controls & Freight Information | NSN 6640-00-426-0900
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 014500 | APPARATUS CHEMICAL LABORATORY |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 651 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6640-00-426-0900
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | R | Bulk and Packaged Petroleum Fuels, Packaged Petroleum Products, Containers and Accessories thereof, Certain Chemicals and Solid Fuels (DLA/GSA) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
