NSN 6640-00-494-3954 6622SIZE10INCH, 00-494-3954, 004943954
Product Details | FRACTIONATING DISTILLING COLUMN
6640-00-494-3954 A tubular shaped device inserted into the neck of a boiling flask to convert it into a distilling flask. The vapor path is a succession of bulbs, and/or partial obstructions such as balls, baffles, spiral, and the like, to permit accurate control of fractionation.
Part Alternates: 6622SIZE10INCH, 6640-00-494-3954, 00-494-3954, 6640004943954, 004943954
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01-JAN-63 | 00-494-3954 | 19428 ( DISTILLING COLUMN, FRACTIONATING ) |
Drawings & Photos | NSN 6640-00-494-3954
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-00-494-3954
Technical Data | NSN 6640-00-494-3954
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |

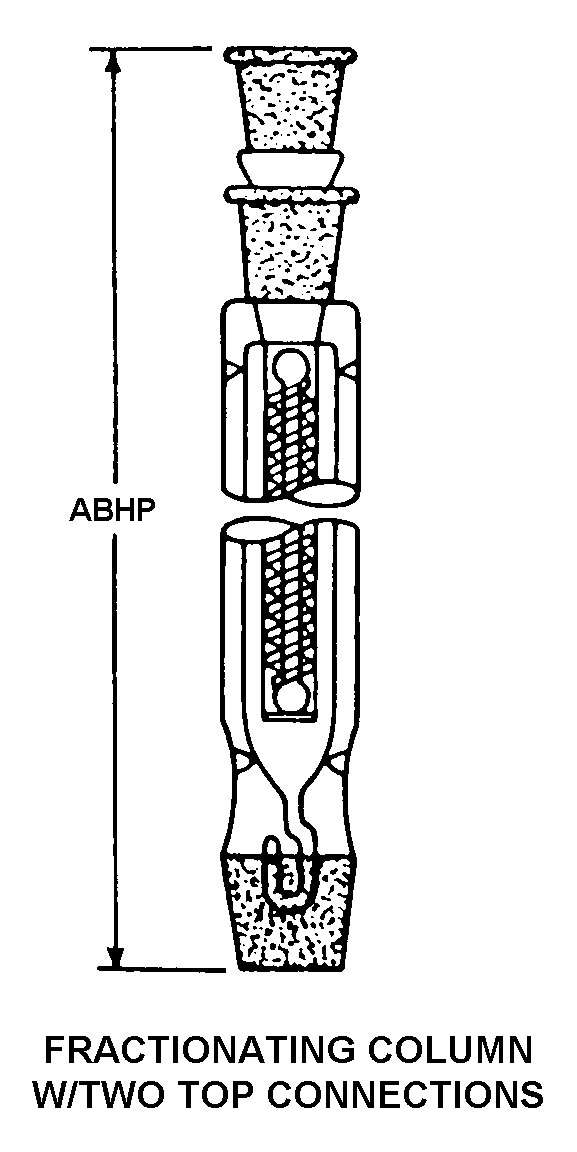

| STYLE DESIGNATOR | A21 FRACTIONATING COLUMN W/TWO TOP CONNECTIONS |
| OVERALL LENGTH | 400.00 MILLIMETERS NOMINAL |
| CLOSURE TYPE ACCOMMODATED AND SIZE DESIGNATION | 24/40 STANDARD TAPER STOPPER MOUTH |
| PRIMARY CONTAINER TYPE | CARTON |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| UNIT PACKAGE TYPE | CARTON |
Restrictions/Controls & Freight Information | NSN 6640-00-494-3954
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
