NSN 6640-00-618-3344 2825030M, 28250-30M, 00-618-3344
Product Details | LABORATORY FILTERING CRUCIBLE
6640-00-618-3344 A vessel with a perforated base or disk, designed to contain substances that are heated or melted at high temperatures. It is used to obtain fine precipitates by filtration and drying.
Part Alternates: 2825030M, 28250-30M, 6640-00-618-3344, 00-618-3344, 6640006183344, 006183344
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 20 FEB 1975 | 00-618-3344 | 16788 ( CRUCIBLE, FILTERING, LABORATORY ) |

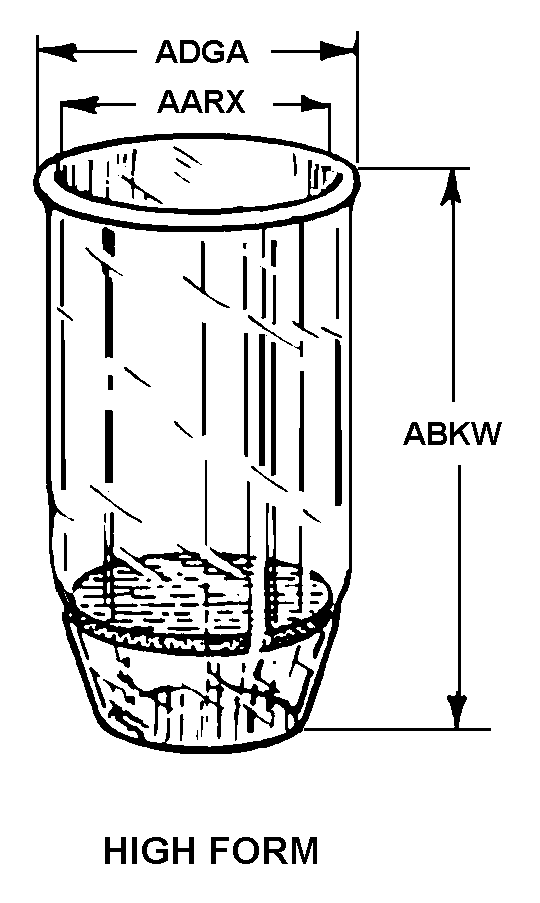

Drawings & Photos | NSN 6640-00-618-3344
Cross Reference | NSN 6640-00-618-3344
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 28250-30M | 75278 | KIMBLE GLASS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-618-3344
Related Products | NSN 6640-00-618-3344
Technical Data | NSN 6640-00-618-3344
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | GOOCH |
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |
| STYLE DESIGNATOR | C8 HIGH FORM |
| INSIDE DIAMETER | 30.00 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 60.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 34.00 MILLIMETERS NOMINAL |
| FILTERING DISK TYPE AND SIZE | 14.0 MICRONS FIXED POROUS |
| CAPACITY RATING | 30.000 MILLILITERS NOMINAL |
| PRIMARY CONTAINER TYPE | CARTON |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| UNIT PACKAGE TYPE | CARTON |
| SPECIAL FEATURES | TOP RIM BEADED |
Restrictions/Controls & Freight Information | NSN 6640-00-618-3344
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 054890 | CRUCIBLES NOI IN BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 534 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6640-00-618-3344
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | I | DIRECT ORDERING FROM A CENTRAL CONTRACT/SCHEDULE # (NON-STOCKED ITEMS) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/service supply policy. The item is covered by a centrally issued contractual document or by any multiple-award Federal Supply Schedule, which permits using activities to place orders directly on vendors for direct delivery to the user. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
