NSN 6640-00-781-1647 10346, 10-346, 00-781-1647
Product Details | LABORATORY COMMON FUNNEL
6640-00-781-1647 A device consisting of a cone shaped reservoir with an outlet stem, having a length not greater than five (5) times the diameter of the cone top. It is fabricated of material, and is of a design and size, suitable for laboratory procedures. See also FUNNEL, FILTERING, LABORATORY and FUNNEL TUBE.
Part Alternates: 10346, 10-346, 6640-00-781-1647, 00-781-1647, 6640007811647, 007811647
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-781-1647 | 17202 ( FUNNEL, COMMON, LABORATORY ) |
Drawings & Photos | NSN 6640-00-781-1647
Cross Reference | NSN 6640-00-781-1647
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-346 | 94480 | FISHER SCIENTIFIC WORLDWIDE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-00-781-1647
Technical Data | NSN 6640-00-781-1647
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |

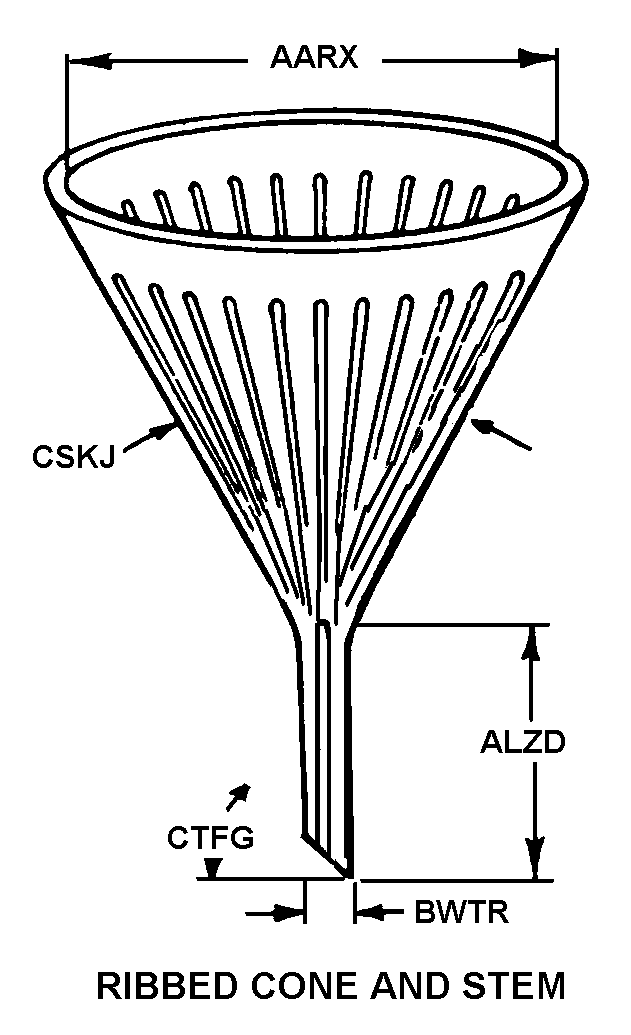

| STYLE DESIGNATOR | F2 RIBBED CONE AND STEM |
| INSIDE DIAMETER | 100.00 MILLIMETERS NOMINAL |
| STEM LENGTH | 25.00 MILLIMETERS NOMINAL |
| STEM OUTSIDE DIAMETER | 20.00 MILLIMETERS NOMINAL |
| CONE ANGLE | 60.0 DEGREES |
| STEM TIP ANGLE | 90.0 DEGREES |
| CAPACITY RATING | NOT RATED |
| UNIT PACKAGE TYPE | BOX |
Restrictions/Controls & Freight Information | NSN 6640-00-781-1647
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
