NSN 6640-01-346-9222 FSE FACG , FSEFACG, 2822000000
Product Details | LABORATORY CONDENSER
6640-01-346-9222 A device, usually cylindrical in shape, composed of an internal tube surrounded by an outer jacket. The tube may be straight, coiled, repetitiously bulbous or indented and must have an inlet and outlet for the condensing vapors. The jacket must have an inlet and outlet, in the form of male side tubulations, for the regular flow of the coolant. Used for condensing vapors to a liquid state in refluxing, extracting and distilling operations. Excludes DISTILLING COLUMN, FRACTIONATING.
Part Alternates: FSE FACG , FSEFACG, 2822000000, 282200-0000, 6640-01-346-9222, 01-346-9222, 6640013469222, 013469222
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 12 OCT 1991 | 01-346-9222 | 19430 ( CONDENSER, LABORATORY ) |
Drawings & Photos | NSN 6640-01-346-9222
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-01-346-9222
Technical Data | NSN 6640-01-346-9222
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, BOROSILICATE |

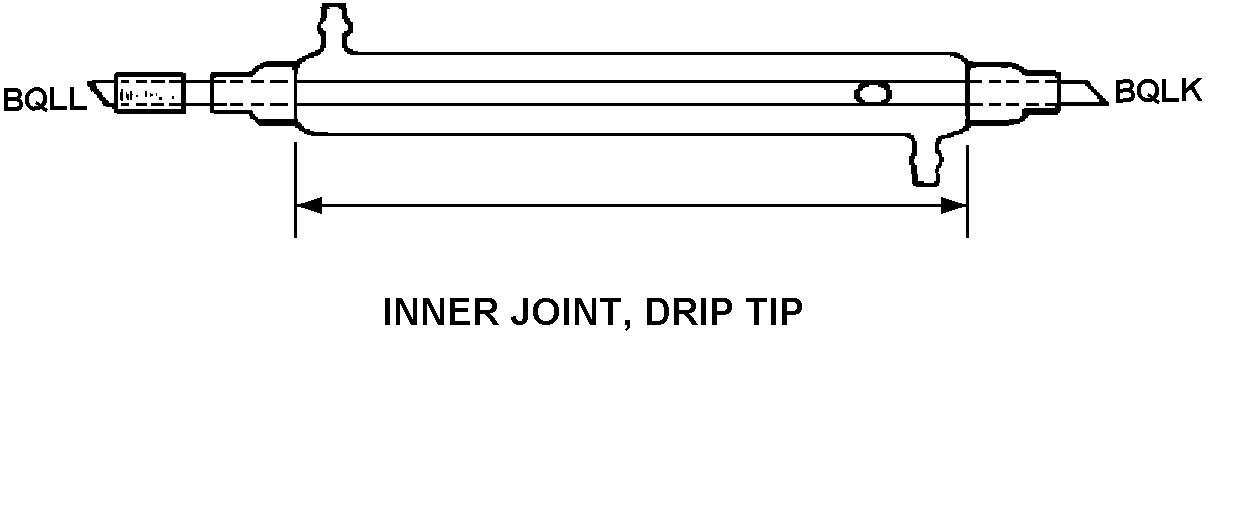

| CONDENSER STYLE DESIGNATOR | D12 INNER JOINT DRIP TIP |
| VAPOR INLET JOINT SIZE | 14/20 TOP JOINT |
| JACKET LENGTH | 100.0 MILLIMETERS NOMINAL |
| CONDENSOR OUTLET JOINT SIZE | 14/35 W/DRIP TUBE EXTENDING INTO REACTION,CUT AT A 30 DEG ANGLE AND BEVELED |
| DRIP TIP | INCLUDED |
| SPECIAL FEATURES | LIEBIG;O/A L 193 MM; 2 NO. 1 HOSE CONNECTORS ON OPPOSING SIDES OF JACKET; CENTERED 10 MM FROM TOP AND BOTTOM; BULB EXTENSION AT TOP EXTENDS TO 32 MM OD |
Restrictions/Controls & Freight Information | NSN 6640-01-346-9222
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6640-01-346-9222
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | I | DIRECT ORDERING FROM A CENTRAL CONTRACT/SCHEDULE # (NON-STOCKED ITEMS) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/service supply policy. The item is covered by a centrally issued contractual document or by any multiple-award Federal Supply Schedule, which permits using activities to place orders directly on vendors for direct delivery to the user. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
