Product Details | TIME TOTALIZING METER
6645-00-831-6826 An instrument that automatically measured, and cumulatively registers the total operating or idle time of any circuit, machine or system, to which it is connected. See METER, FREQUENCY AND TIME TOTALIZING, ELECTRICAL.
Part Alternates: M11906, M1-1906, M2616, M-2616, M26162, M2616-2, M3971/2-5, M397125, M594120VAC60CPS, M594-120VAC60CPS, M594S120VAC60CPS, MOD10NG1115V60, MOD10NG1-115V60, AC20010NG7, AC20010N-G7, B26586, SAC729, SMA717655, HM2ETH0V, HP20014714, HP200147-14, MIL-DTL-3971/2, MILDTL39712, MILM3971, MIL-M-3971, W99174, W-9917-4, EF1335, EF1335A2, ET1414, 717299-009, 7200003, 720-0003, 565769-001, 5936960936, 593-6960936, 635GS100AA0008A, 635GT100AA0008A, 6962ED3453 PC 4, 6962ED3453PC4, 03Y61TM-0096 FIND NO 1, 03Y61TM0096FINDNO1, 0N001998, 1021A177, 1036891, 103689-1, 10511672, 10NG1, 10N-G1, 10NG2, 10N-G2, 11000008, 110-00-008, 11907004, 12NG1, 1656161, 165616-1, 20017, 240631AAAE, 411557, 41-1557, 49922, 50240211AAAB, 50-240-211-AAAB, 50240631AAAE, 50-240631AAAE, 50-240-631-AAAE, 56046, 56047, 779516-201, 94313801, T25, T-25, 6645-00-831-6826, 00-831-6826, 6645008316826, 008316826, 717299009, 779516201, 565769001
Instruments and Laboratory Equipment | Time Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 13 SEP 1967 | 00-831-6826 | 08066 ( METER, TIME TOTALIZING ) |

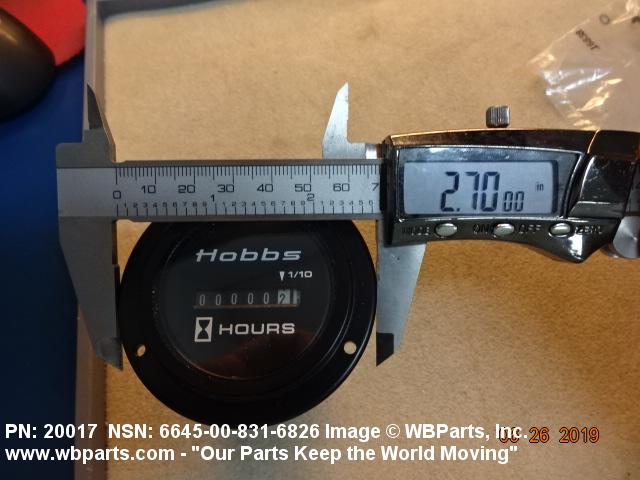

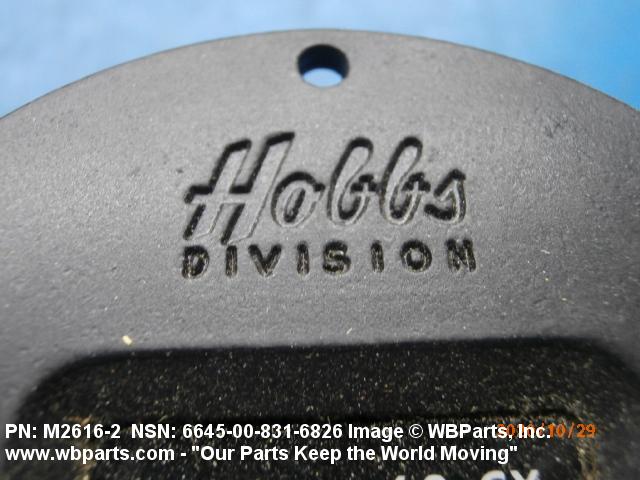

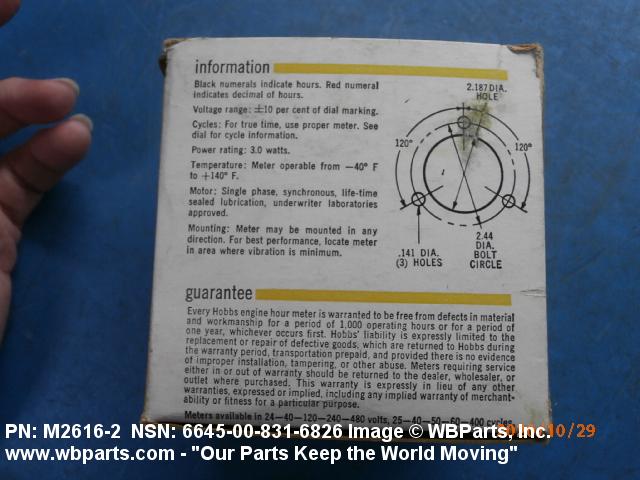

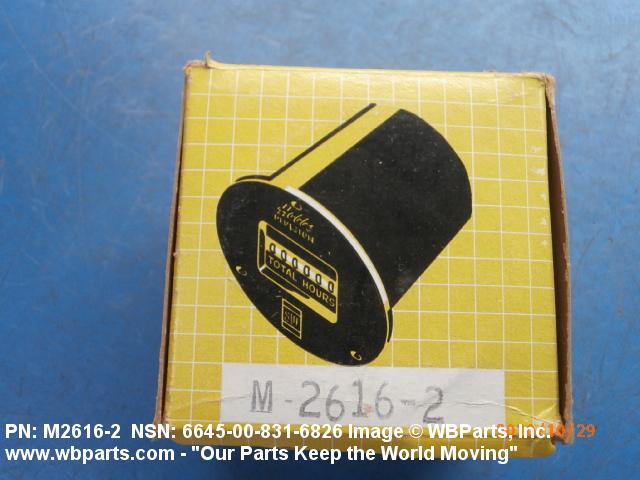

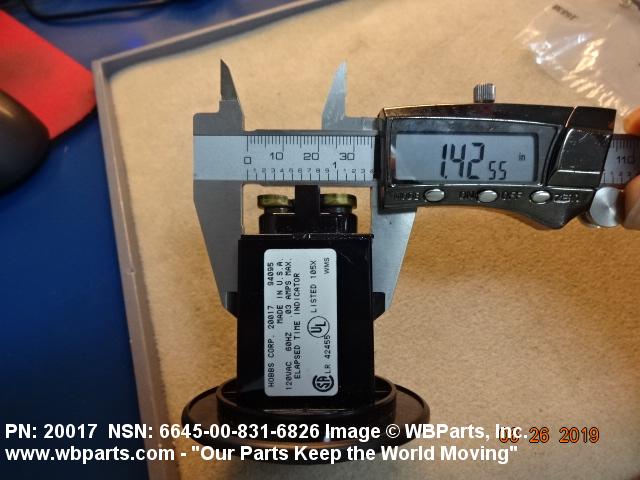

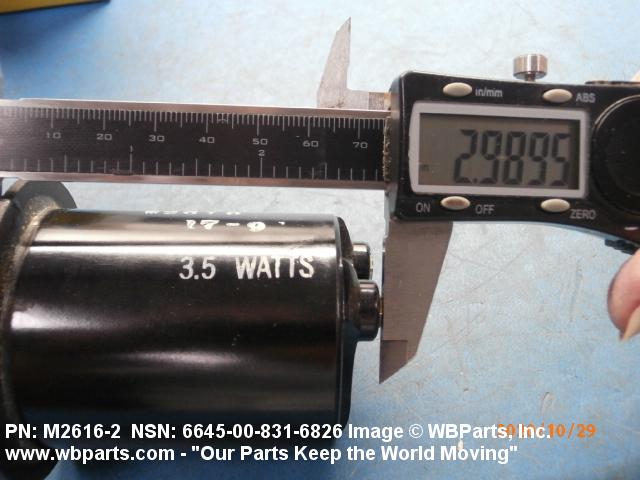

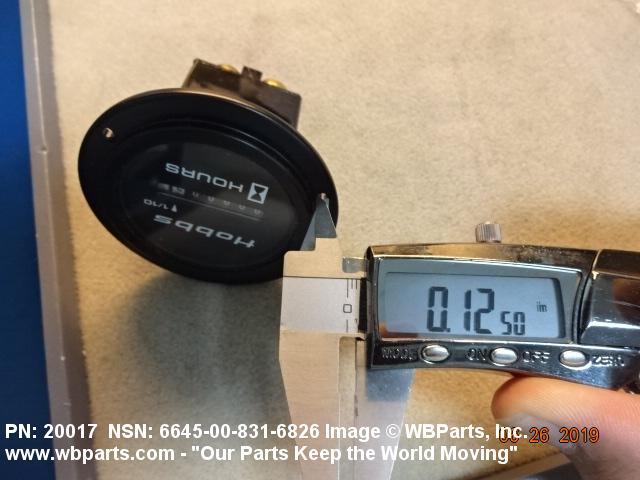

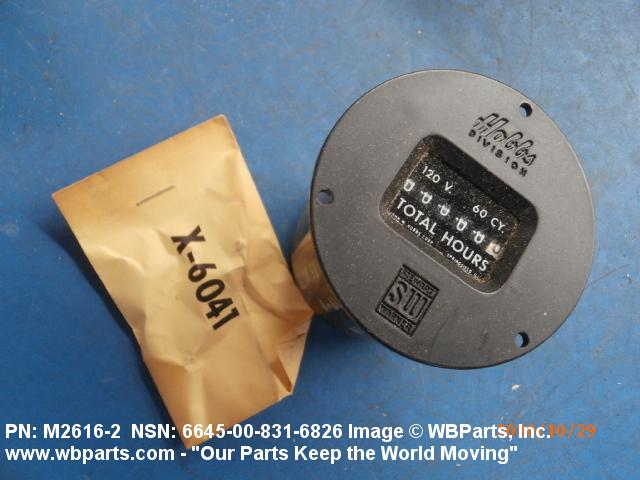

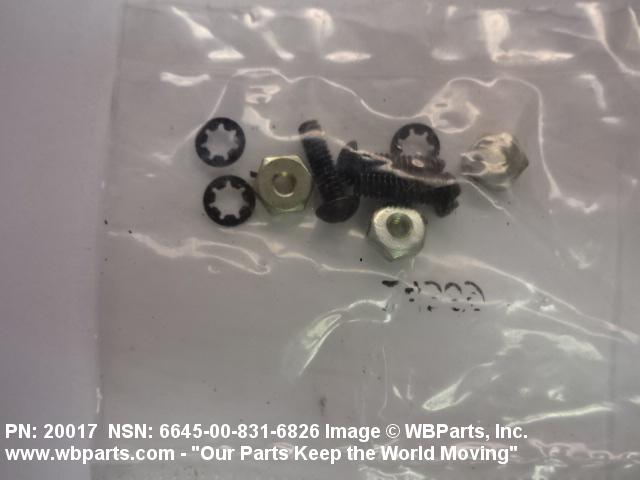

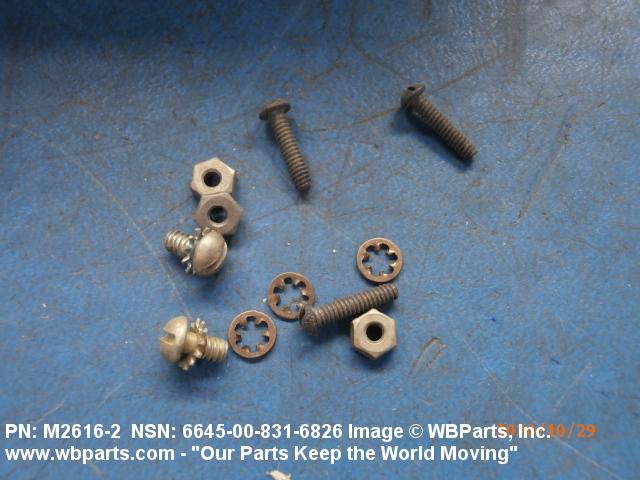

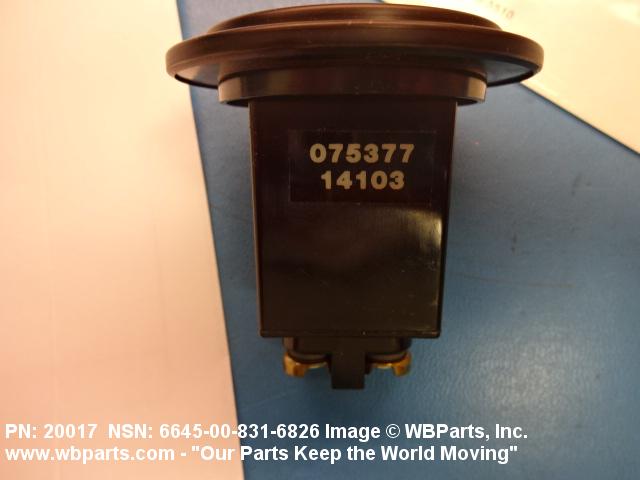

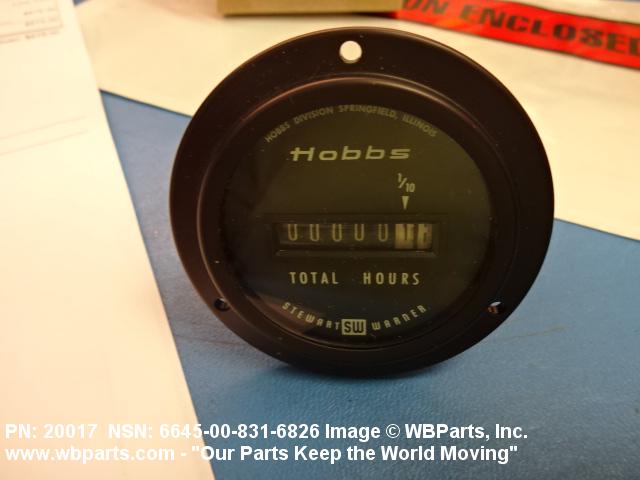

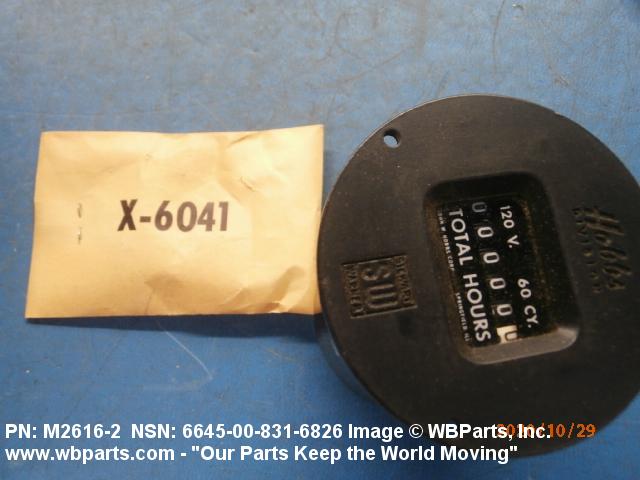

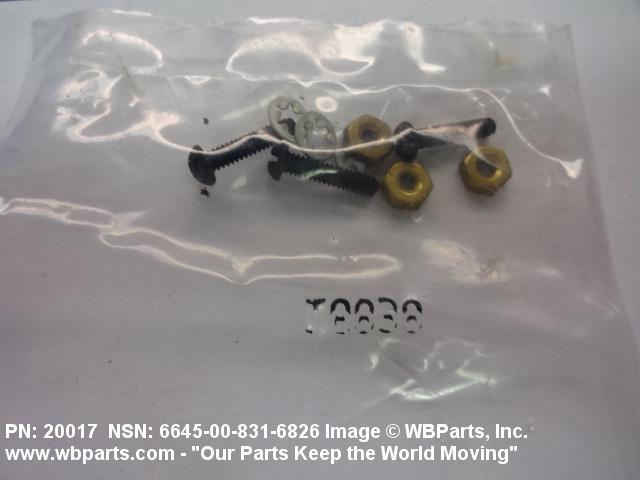

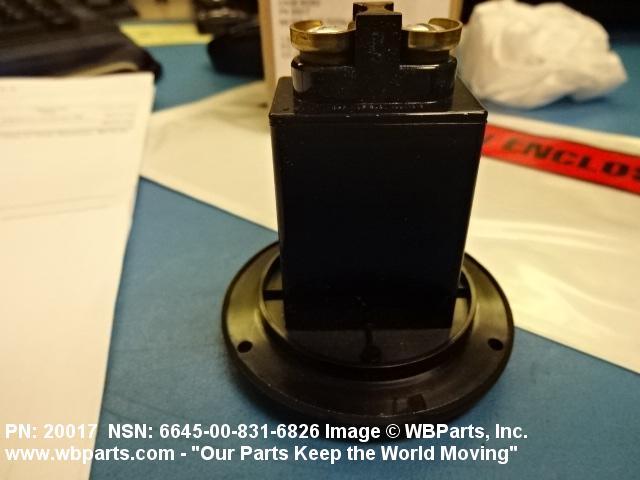

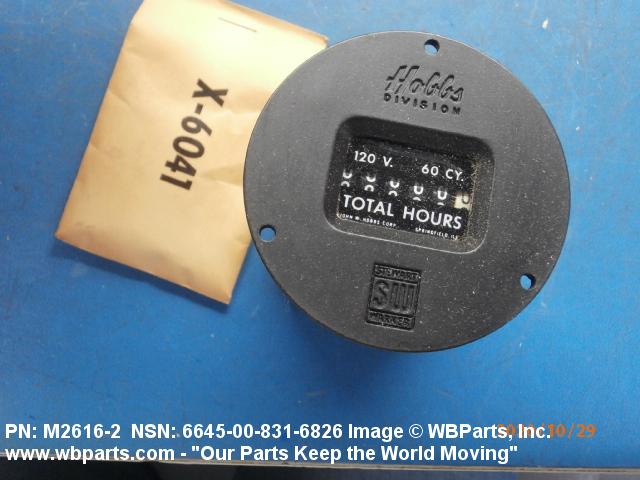

Drawings & Photos | NSN 6645-00-831-6826
Demand History | NSN 6645-00-831-6826
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6645-00-831-6826 | 2023-01-17 | 1 | US |
| 6645-00-831-6826 | 2020-10-19 | 6 | United States |
| 6645-00-831-6826 | 2020-08-11 | 2 | US |
| 6645-00-831-6826 | 2020-08-11 | 2 | US |
| 6645-00-831-6826 | 2019-06-20 | 20 | United States |
| 6645-00-831-6826 | 2019-04-16 | 15 | United States |
| 6645-00-831-6826 | 2018-01-31 | 50 | DIBBS |
| 6645-00-831-6826 | 2018-01-10 | 1 | DIBBS-RFPs |
| 6645-00-831-6826 | 2017-11-28 | 1 | DIBBS-RFPs |
| 6645-00-831-6826 | 2017-11-16 | 1 | MANUAL |
| EF1335 | 2017-11-16 | 1 | United States |
| 6645-00-831-6826 | 2017-10-31 | 141 | DIBBS |
| EF1335 | 2016-08-09 | 1 | United States |
| M2616 | 2014-11-10 | 1 | Taiwan |
| 6645-00-831-6826 | 2013-12-05 | 1 | DIBBS-RFPs |
| T25 | 2011-08-25 | 3 |
Cross Reference | NSN 6645-00-831-6826
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03Y61TM-0096 FIND NO 1 | 0DA33 | ELTECH RESEARCH CORP |
| 0N001998 | 98230 | NATIONAL SECURITY AGENCY |
| 1021A177 | 10137 | SZEMCO INC |
| 103689-1 | 23115 | VEGA PRECISION LABORATORIES INC SUB OF HERLEY INDUSTRIES INC |
| 10511672 | 19200 | US ARMY ARDEC RDECOM |
| 10N-G1 | 07446 | SANGAMO WESTON INC ENGLER INSTRUMENTS DIV |
| 10N-G2 | 07446 | SANGAMO WESTON INC ENGLER INSTRUMENTS DIV |
| 10NG1 | 9J469 | ENGLER INDUSTRIAL PRODUCTS INC SUB OF REDINGTON COUNTERS INC |
| 110-00-008 | 01205 | LOGETRONICS CORPORATION |
| 11907004 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 12NG1 | 07446 | SANGAMO WESTON INC ENGLER INSTRUMENTS DIV |
| 165616-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 20017 | 74400 | HOBBS CORP |
| 240631AAAE | 60336 | YOKOGAWA CORPORATION OF AMERICA DIV FINANCE |
| 41-1557 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 49922 | 16476 | MAXIMA TECHNOLOGIES & SYSTEMS LLC DBA MAXIMA TECHNOLOGIES |
| 49922 | 26992 | HAMILTON WATCH CO INC |
| 50-240-211-AAAB | 29834 | GENERAL ELECTRIC CO INSTRUMENT PRODUCTS SECTION |
| 50-240-631-AAAE | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| 50-240631AAAE | 29834 | GENERAL ELECTRIC CO INSTRUMENT PRODUCTS SECTION |
| 56046 | 16476 | MAXIMA TECHNOLOGIES & SYSTEMS LLC DBA MAXIMA TECHNOLOGIES |
| 56046 | 26992 | HAMILTON WATCH CO INC |
| 56047 | 16476 | MAXIMA TECHNOLOGIES & SYSTEMS LLC DBA MAXIMA TECHNOLOGIES |
| 56047 | 26992 | HAMILTON WATCH CO INC |
| 565769-001 | 40931 | HONEYWELL INTERNATIONAL INC. DBA FEDERAL SYSTEMS GROUP |
| 593-6960936 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 635GS100AA0008A | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 635GT100AA0008A | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 6962ED3453 PC 4 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 717299-009 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 720-0003 | 28292 | REDINGTON COUNTERS INC |
| 779516-201 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 94313801 | 19333 | MAGNETIC PERIPHERALS INC NORMANDALE OPNS |
| AC20010N-G7 | 07446 | SANGAMO WESTON INC ENGLER INSTRUMENTS DIV |
| AC20010N-G7 | 50773 | SCHLUMBERGER LTD |
| B26586 | 08441 | SPX CORPORATION DBA DIELECTRIC COMMUNICATIONS |
| EF1335 | 27780 | GENERAL TIME CONTROLS INC |
| EF1335A2 | 27780 | GENERAL TIME CONTROLS INC |
| ET1414 | 04377 | MOREY CORP THE |
| ET1414 | 17932 | CONDOR INDUSTRIAL CORP SUB OF THE MOREY CORP |
| HM2ETH0V | 33005 | JEWELL INSTRUMENTS, LLC DBA MODUTEC |
| HP200147-14 | 04664 | PIERCE MANUFACTURING, INC. |
| M-2616 | 74400 | HOBBS CORP |
| M1-1906 | 0NKU0 | LCT ELECTRONICS |
| M2616-2 | 74400 | HOBBS CORP |
| M3971/2-5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M594-120VAC60CPS | 26992 | HAMILTON WATCH CO INC |
| M594S120VAC60CPS | 26992 | HAMILTON WATCH CO INC |
| MIL-DTL-3971/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-M-3971 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MOD10NG1-115V60 | 07446 | SANGAMO WESTON INC ENGLER INSTRUMENTS DIV |
| SAC729 | 05477 | NEW SD INC SEATON-WILSON DIV |
| SMA717655 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| T-25 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| W-9917-4 | 28835 | HOBART BROS CO |
| W-9917-4 | 28873 | HOBART CORPORATION DBA HOBART |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6645-00-831-6826
Related Products | NSN 6645-00-831-6826
6645-00-832-1609, 6645-00-833-0188, 6645-00-833-2395, 6645-00-833-5505, 6645-00-833-7024
Technical Data | NSN 6645-00-831-6826
| Characteristic | Specifications |
|---|---|
| INDICATOR TYPE | DRUM REGISTER |
| MEASUREMENT UNIT | HOURS |
| MAXIMUM MEASUREMENT | 99999.90 |
| SMALLEST INCREMENT INDICATED | 0.10 |
| MARKING COLOR | BLACK NUMERALS FOR HUNDREDTHS,WHITE NUMERALS FOR HOURS |
| BACKGROUND COLOR | BLACK BACKGROUND ON HR WHEEL,WHITE BACKGROUND ON TENTHS WHEEL |
| RESET FEATURE | NOT PROVIDED |
| MOVEMENT TYPE | ELECTRICAL |
| ELECTRICAL MOVEMENT TYPE | SYNCHRONOUS MOTOR |
| CURRENT TYPE | AC |

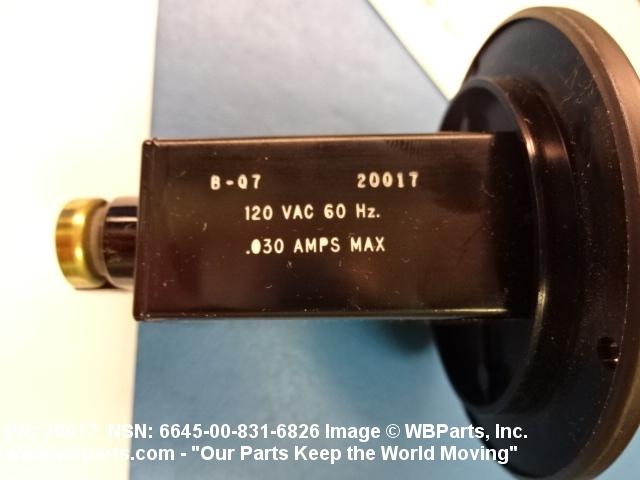

| VOLTAGE RATING | 120.0 VOLTS NOMINAL |
| OPERATING FREQUENCY | 60.0 HERTZ NOMINAL |

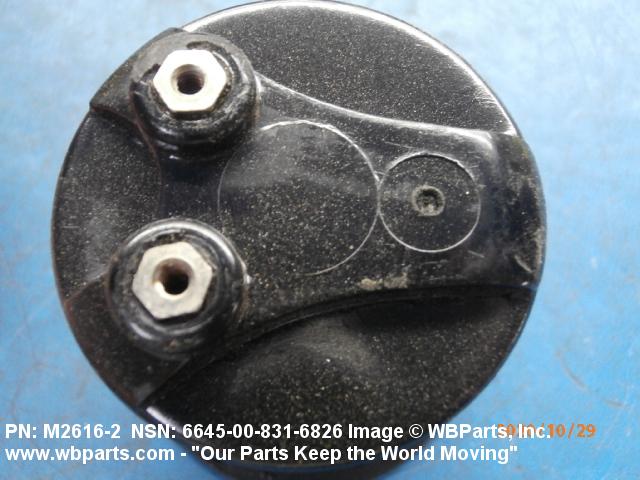

| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | SOLDER LUG OR STUD |
| CASE MATERIAL | ANY ACCEPTABLE |
| HERMETIC PROTECTION | NOT PROVIDED |
| UNIT TYPE | MOUNTED |
| MOUNTING TYPE | PANEL |
| MOUNTING METHOD | FLUSH |
| MOUNTING FLANGE DIAMETER | 2.695 INCHES MAXIMUM |
| BODY DIAMETER | 2.210 INCHES MAXIMUM |
| BODY DEPTH | 3.000 INCHES MAXIMUM |
| MOUNTING CONFIGURATION | THREE 0.125 IN. DIA MTG HOLES ON 1.220 IN. RADIUS SPACED 120 DEG APART |
| NONDEFINITIVE SPEC/STD DATA | B GRADE AND 3971/2-5 PART AND II TYPE |
| III END ITEM IDENTIFICATION | NSN 4210-01-486-1035 TFFT (TACTICAL FIRE FIGHTING TRUCK) |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-M-3971 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M3971/2-5 |
