NSN 6645-00-836-9013 MILC6499A, W3375404, W33-7540-4

Product Details | PANEL CLOCK


6645-00-836-9013 A clock specifically designed for mounting on or in a panel. It may have a strike mechanism. Excluded are mechanisms for controlling and regulating secondary clocks and alarm signalling devices.

Part Alternates: MILC6499A, W3375404, W33-7540-4, 6645-00-836-9013, 00-836-9013, 6645008369013, 008369013

Instruments and Laboratory Equipment | Time Measuring Instruments

Supply Group (FSG) NSN Assign. NIIN
66 01 JAN 1962 00-836-9013

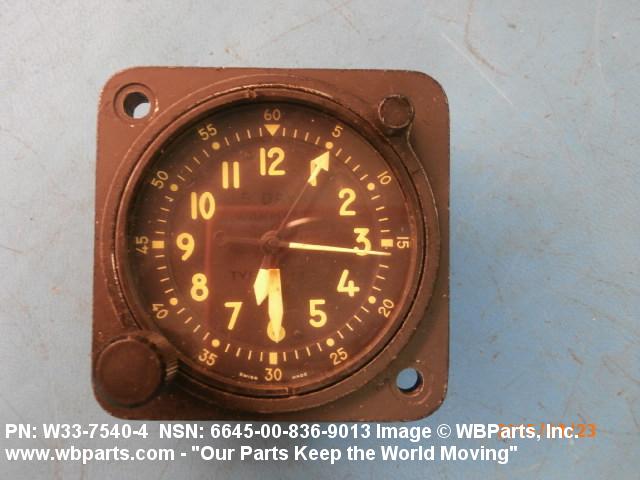

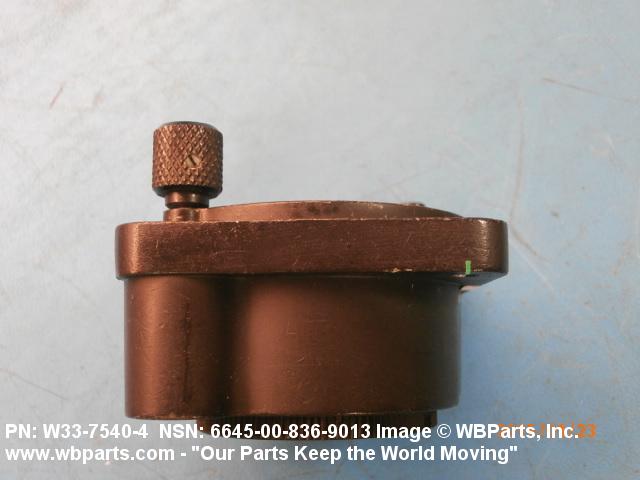

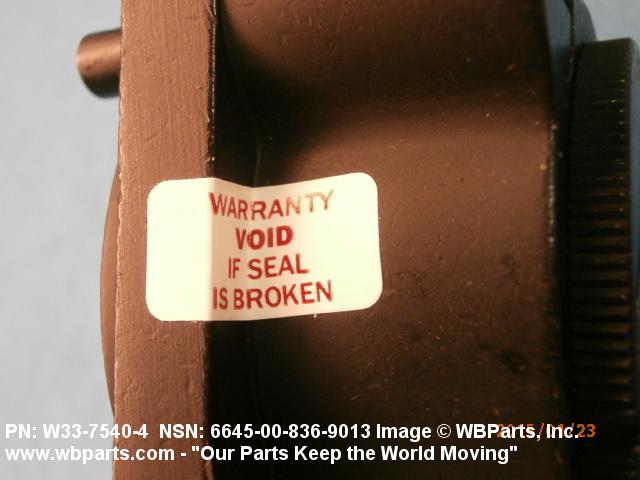

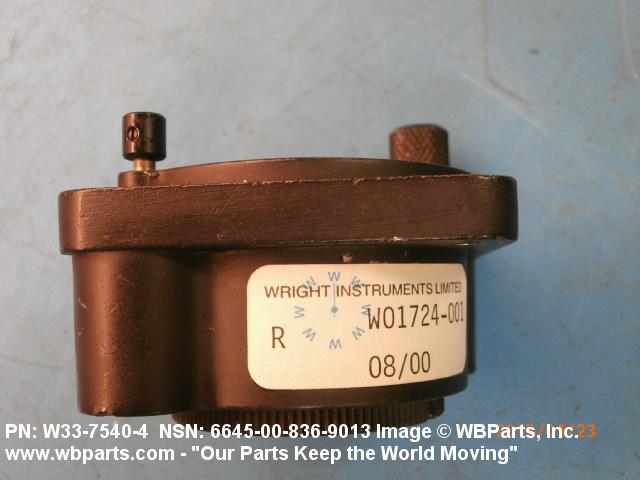

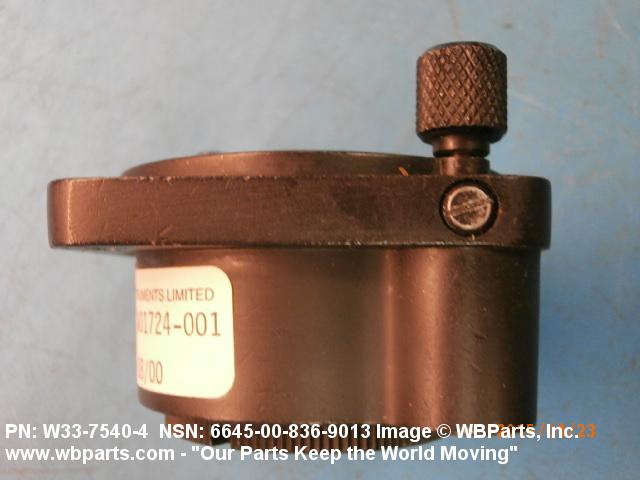

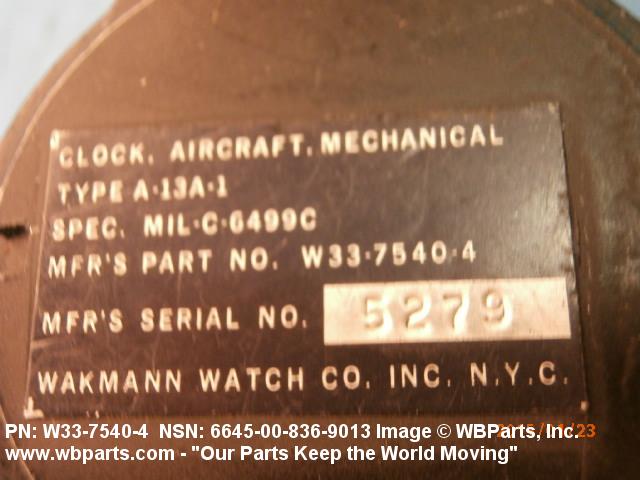

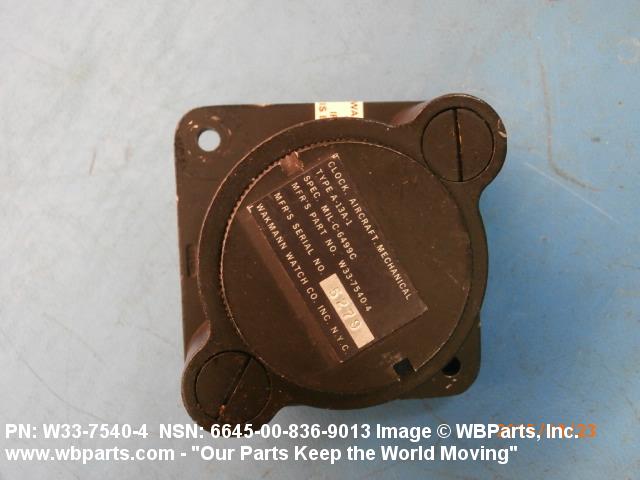

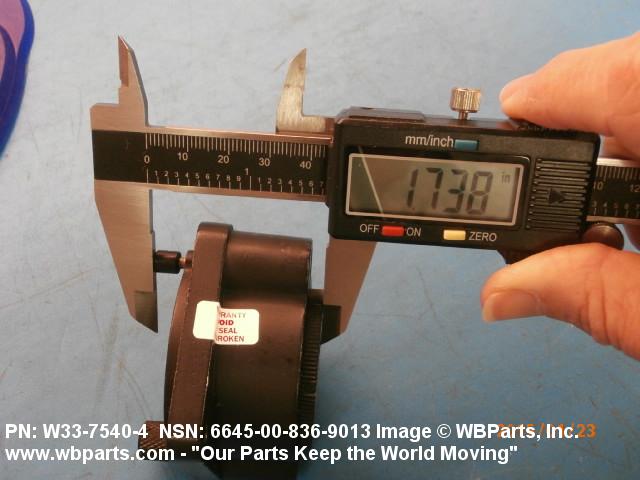

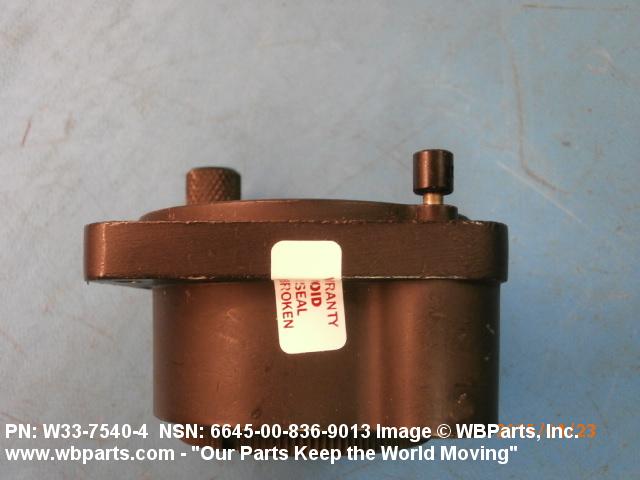

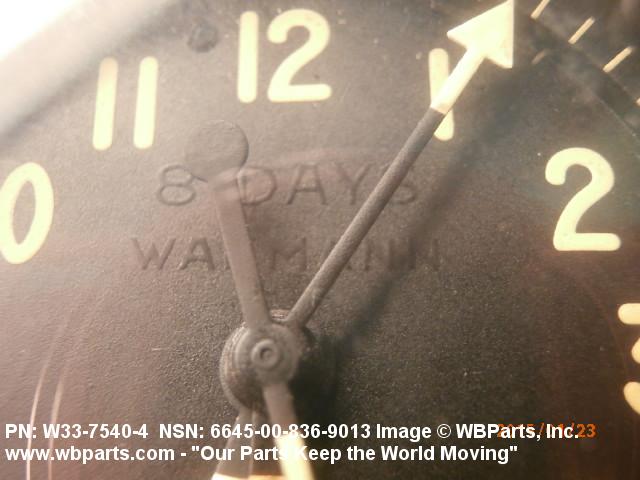

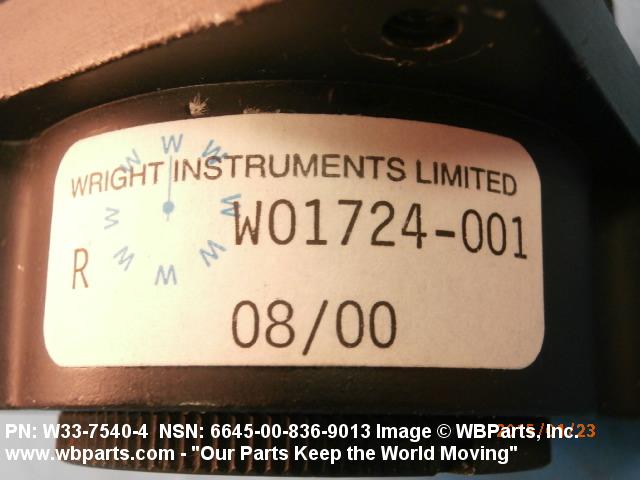

Drawings & Photos | NSN 6645-00-836-9013



Demand History | NSN 6645-00-836-9013


Part Number Request Date QTY Origin
W3375404 2014-12-15 1 Malaysia
W3375404 2014-12-15 1 Malaysia
W3375404 2014-12-15 1 Malaysia
W3375404 2014-08-13 1 Malaysia

Cross Reference | NSN 6645-00-836-9013


Part Number Cage Code Manufacturer
MILC6499A 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
W33-7540-4 98429 WAKMANN WATCH COMPANY INC

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 6645-00-836-9013


Technical Data | NSN 6645-00-836-9013


Characteristic Specifications
MOVEMENT TYPE MECHANICAL
MECHANICAL MOVEMENT TYPE SPRING WOUND
ESCAPEMENT TYPE LEVER
MAXIMUM RUNNING TIME 8.0 DAYS
WINDING DEVICE LOCATION FACE
NONMAGNETIC CHARACTERISTIC INCLUDED
DIAL QUANTITY 1
OUTSIDE DIAMETER 1.875 INCHES NOMINAL
INCREMENT IN HOURS 12.000
SECOND HAND TYPE SWEEP
SECOND HAND COLOR BLACK, LUSTERLESS
CASE MATERIAL ALUMINUM
CASE SURFACE TREATMENT PAINT, LUSTERLESS, FN-10, NORTH AMERICAN PHILIPS CONTROLS CORP
CHIME MECHANISM NOT INCLUDED
OVERALL DEPTH 1.890 INCHES NOMINAL
SPECIAL FEATURES 2 SCALES,ONE SCALE ELASPED TIME AND ONE SCALE STANDARD TIME; SCALE RANGE 0.0 TO 60.0 MINUTES OUTER AND INNER SCALE 0.0 TO 12.0 HOURS; 4 HANDS, ONE HAND ELASPED TIME, ONE MINUTE HAND,ONEHAND SWEEP AND ONE HOUR HAND; KNOB LOCATION LOWER LEFT HAND CORNER ON THE FACE FOR SETTING AND WINDING,UPPER RIGHTHAND CORNER FOR ELASPED TIME SETTING
SPECIFICATION/STANDARD DATA 83149-MIL-C-6499 GOVERNMENT SPECIFICATION
NONDEFINITIVE SPEC/STD DATA A13A2 TYPE
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MILC6499A

Restrictions/Controls & Freight Information | NSN 6645-00-836-9013


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:JPILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J./
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 048720 CLOCK CLOCK MOVEMENT CLOCK PART
Less than car load rating J 100.2
Less than truck load rating W Rating Variable
Water commodity Code 671 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6645-00-836-9013


Category Code Description
Cognizance Codes7RAeronautical Depot Level Repairable Spares
Naval Inventory Control Point, Philadelphia
Special Material IDFZSpecial Projects (GFE)
Issue Repair, or RequisitionARRepairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved.
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyNRPNAVICP-ERP
700 Robbins Avenue
Philadelphia, PA 19111-5098
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
ReparabilityE(1) IRAM Program Intensive Management Reparables (2) Material (expendable ordnance) Requiring Lot and Serial Number Control but which is Reported by Serial Number Only
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeJPILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J.
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
