NSN 6645-01-367-9736 700RT00N100A1, 700-RT00N100A1, 700RTC00100U1
Product Details | INTERVAL TIMER
6645-01-367-9736 An instrument for signalling the expiration of a predetermined time. It may also have an automatic switch for control of electrical circuits See also TIMER, STOP.20366450000692000006930000000
Part Alternates: 700RT00N100A1, 700-RT00N100A1, 700RTC00100U1, 700-RTC00100U1, 6645-01-367-9736, 01-367-9736, 6645013679736, 013679736
Instruments and Laboratory Equipment | Time Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 22 NOV 1992 | 01-367-9736 | 04842 ( TIMER, INTERVAL ) |

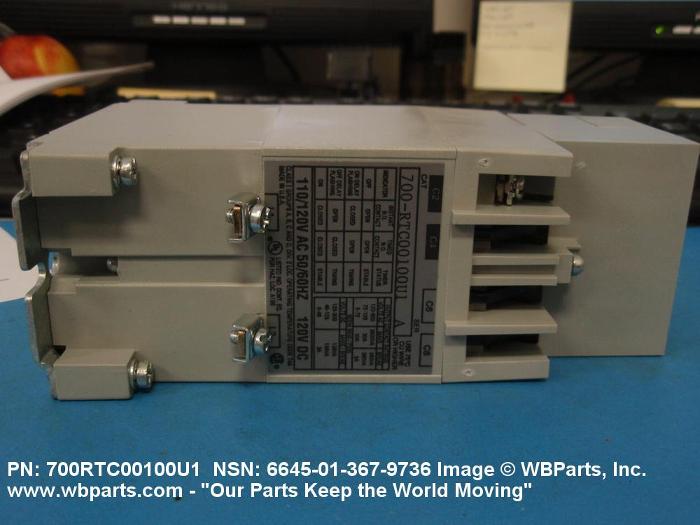

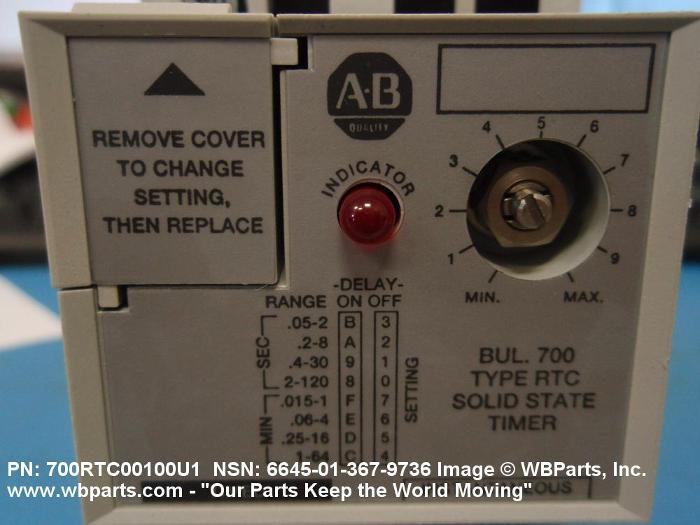

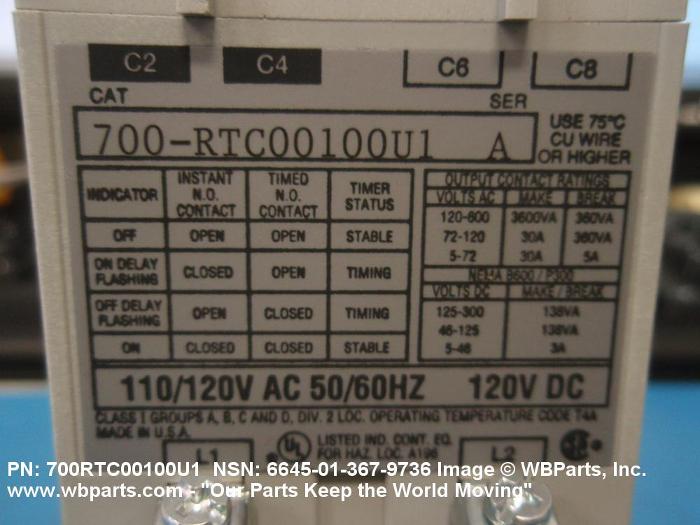

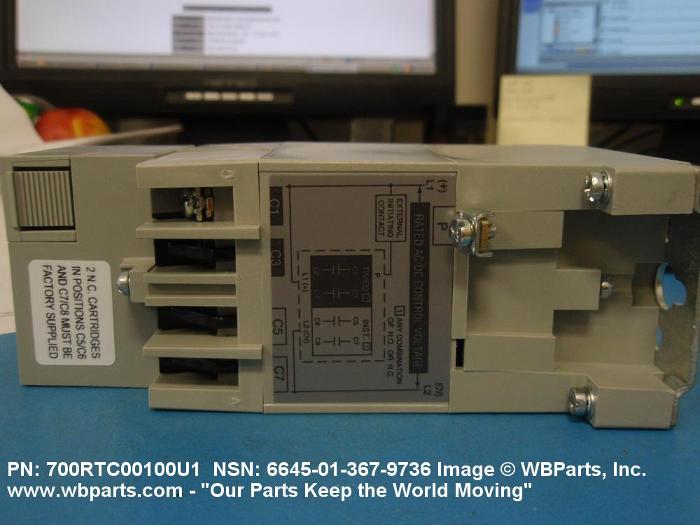

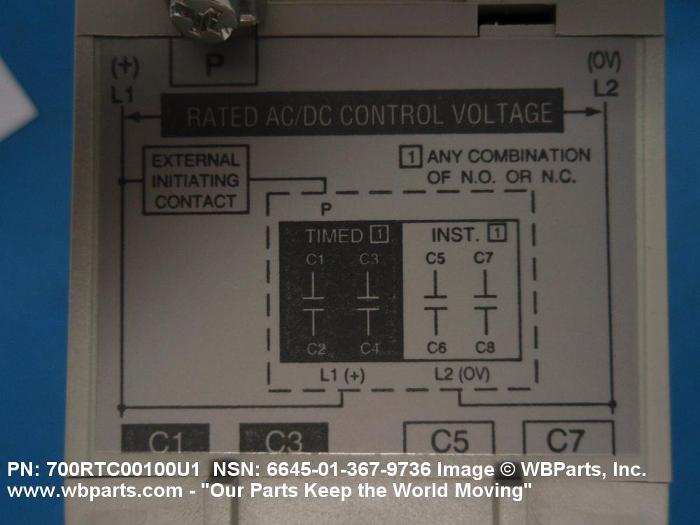

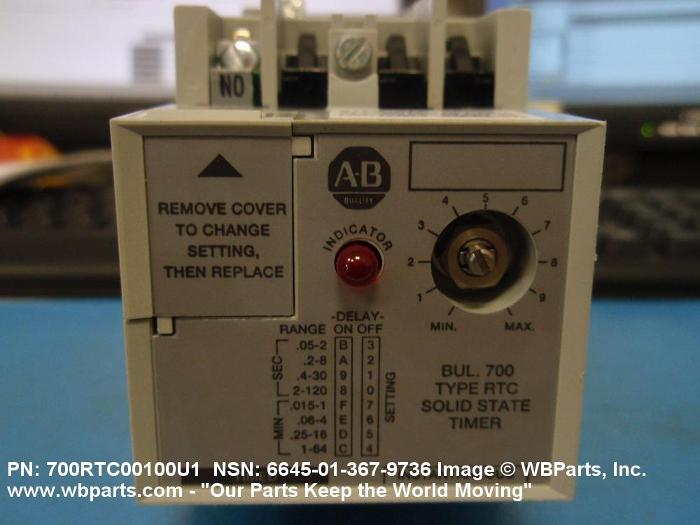

Drawings & Photos | NSN 6645-01-367-9736
Demand History | NSN 6645-01-367-9736
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 700-RTC00100U1 | 2019-04-92 | 1 | DIBBS |
| 6645-01-367-9736 | 2018-10-283 | 2 | DIBBS |
| 6645-01-367-9736 | 2018-08-238 | 1 | DIBBS |
| 6645-01-367-9736 | 2017-08-234 | 1 | DIBBS |
| 6645-01-367-9736 | 2016-12-340 | 1 | DIBBS |
| 6645-01-367-9736 | 2016-02-33 | 1 | DIBBS |
| 6645-01-367-9736 | 2015-11-320 | 1 | DIBBS |
| 6645-01-367-9736 | 2015-01-13 | 1 | DIBBS |
| 6645-01-367-9736 | 2014-12-357 | 1 | DIBBS |
| 6645-01-367-9736 | 2011-06-154 | 1 | DIBBS |
| 700RTC00100U1 | 2011-03-63 | 1 | United States |
| 6645-01-367-9736 | 2011-03-63 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6645-01-367-9736
Related Products | NSN 6645-01-367-9736
Technical Data | NSN 6645-01-367-9736
| Characteristic | Specifications |
|---|---|
| TIMER TYPE | ELECTRICAL |
| OPERATION METHOD | ELECTRONIC OPERATED |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 120.0 |
| FREQUENCY IN HERTZ | 60.0 |
| CONTROL TYPE | AUTOMATIC |
| AUTOMATIC ELECTRIC CIRCUIT CONTROL SWITCH | NOT INCLUDED |
| INTERVAL EXPIRATION SIGNALLING DEVICE | INCLUDED |
| INDEPENDENTLY OPERATED CLOCK | NOT INCLUDED |
| III END ITEM IDENTIFICATION | TARAWA CLASS LHA,CONTROL PANEL |
Restrictions/Controls & Freight Information | NSN 6645-01-367-9736
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 048720 | CLOCK CLOCK MOVEMENT CLOCK PART |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6645-01-367-9736
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
