NSN 6650-01-178-2244 25172361700, 2517-2361-700, 01-178-2244
Product Details | OPTICAL INSTRUMENT RETICLE
6650-01-178-2244 An item, usually made of glass, having fine wires or hairs, or etched or printed fine lines on a surface, and placed in the focal plane of an optical instrument to establish a reference point to the axis for the purpose of aiming, measuring, ranging, and the like. Excludes LENS, OPTICAL INSTRUMENT.
Part Alternates: 25172361700, 2517-2361-700, 6650-01-178-2244, 01-178-2244, 6650011782244, 011782244
Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 03-MAY-84 | 01-178-2244 | 21883 ( RETICLE, OPTICAL INSTRUMENT ) |
Drawings & Photos | NSN 6650-01-178-2244
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6650-01-178-2244
Technical Data | NSN 6650-01-178-2244
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC METHYL METHACRYLATE |

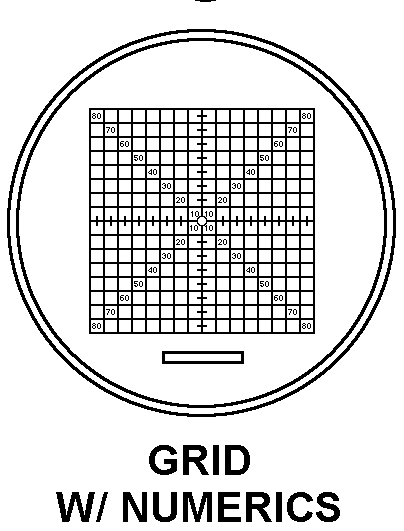

| STYLE DESIGNATOR | A20 GRID W/NUMERICS |
| GRADUATIONS/MARKINGS | GRID TYPE |
| SCALE CALIBRATION | M 1.5 TO 1.5; 40 TO 100; M 6 TO 6 |
| AXIAL THICKNESS | 0.060 INCHES NOMINAL |
| DIAMETER | 3.4500 INCHES NOMINAL |
| WIDTH | 0.060 INCHES NOMINAL |
| SPECIAL FEATURES | FOUR 0.094 IN. DIA HOLES 90 DEG APART ALONG EDGE |
| SPECIAL TEST FEATURES | SCRATCH RESISTANT FRONT SURFACE |
| FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
| (NON-CORE DATA) EDGE THICKNESS | 0.0600 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 6650-01-178-2244
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
