NSN 6650-01-384-5260 01-384-5260, 013845260

Product Details | OPTICAL INSTRUMENT RETICLE

6650-01-384-5260 An item, usually made of glass, having fine wires or hairs, or etched or printed fine lines on a surface, and placed in the focal plane of an optical instrument to establish a reference point to the axis for the purpose of aiming, measuring, ranging, and the like. Excludes LENS, OPTICAL INSTRUMENT.

Part Alternates: 6650-01-384-5260, 01-384-5260, 6650013845260, 013845260

Instruments and Laboratory Equipment | Optical Instruments, Test Equipment, Components and Accessories

Supply Group (FSG) NSN Assign. NIIN
66 01-384-5260

Drawings & Photos | NSN 6650-01-384-5260


Request a Quote

What Our Customers Say

Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6650-01-384-5260
Compare

Related Products | NSN 6650-01-384-5260

6650-01-384-5270, 6650-01-384-6595, 6650-01-384-7841, 6650-01-384-7867, 6650-01-385-1979

Technical Data | NSN 6650-01-384-5260

Characteristic Specifications

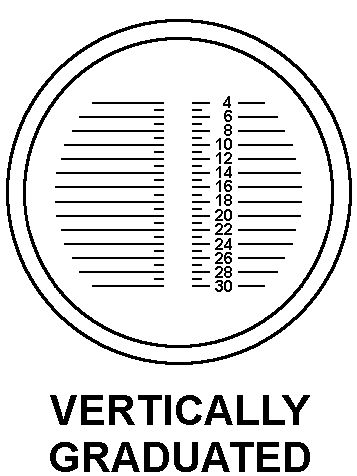

STYLE DESIGNATOR A12 VERTICALLY GRADUATED
GRADUATIONS/MARKINGS BALLISTIC DESIGNATION
AMMUNITION IDENTIFICATION INSCRIPTION .50 CAL.;40MM
REFRACTION INDEX 1.5220 NOMINAL
AXIAL THICKNESS 0.140 INCHES NOMINAL
DIAMETER 1.3750 INCHES NOMINAL
SPECIAL FEATURES SURFACE QUALITY 20/15 OUTER ZONE;10/5 INNER ZONE
END ITEM IDENTIFICATION 1240-01-369-7678

Restrictions/Controls & Freight Information | NSN 6650-01-384-5260

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Category Code Description
No Freight Information
