NSN 6665-00-250-6471 55A2240, 00-250-6471, 002506471
Product Details | ROENTGEN RATE METER
6665-00-250-6471 An electrically operated instrument which measures radioactivity and is calibrated in roentgens per unit time or any multiple threof. For instruments that measure radioactivity directly, see RADIACMETER.
Part Alternates: 55A2240, 6665-00-250-6471, 00-250-6471, 6665002506471, 002506471
Instruments and Laboratory Equipment | Hazard-Detecting Instruments and Apparatus
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-250-6471 | 17257 ( METER, ROENTGEN RATE ) |
Drawings & Photos | NSN 6665-00-250-6471
Cross Reference | NSN 6665-00-250-6471
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 55A2240 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6665-00-250-6471
Technical Data | NSN 6665-00-250-6471
| Characteristic | Specifications |
|---|---|
| METER TYPE | MOUNTED |
| SCALE QUANTITY | 1 |
| SCALE RANGE | 0.0 TO 500.0 MILLIROENTGENS |
| GRADUATION UNIT | 40.0 MILLIROENTGENS |
| CASE MATERIAL | PLASTIC, PHENOL-FORMALDEHYDE |
| METER STYLE | PANEL |

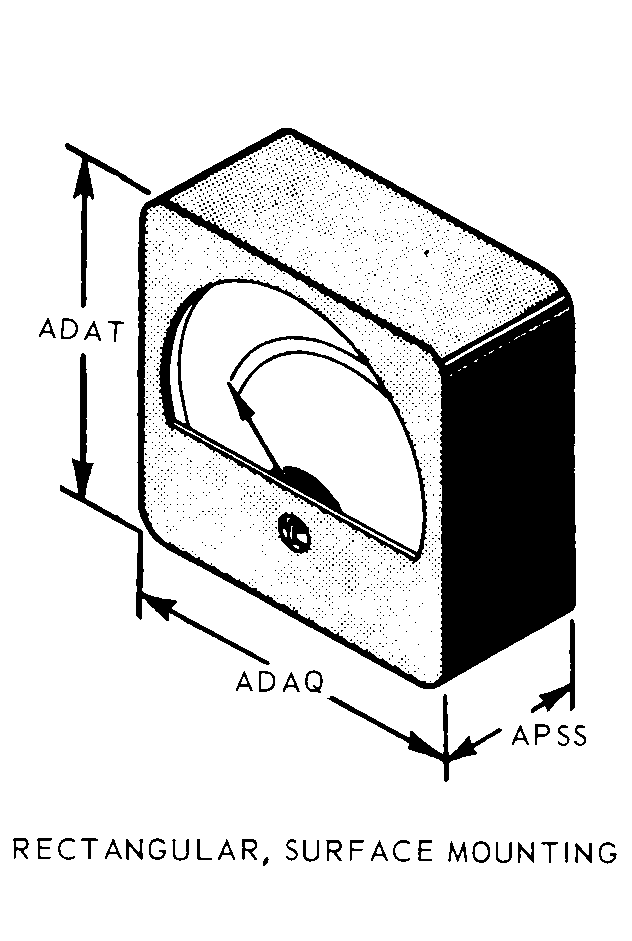

| BODY STYLE | 3 RECTANGULAR, SURFACE MOUNTING |
| BODY LENGTH | 3.500 INCHES NOMINAL |
| BODY WIDTH | 3.250 INCHES NOMINAL |
| METER DEPTH TO PANEL | 1.562 INCHES NOMINAL |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE |
| SENSITIVITY | 20 UA SENSITIVITY AT FULL SCAL DEFLECTION |
| MAGNETIC SHIELDING | NOT INCLUDED |
| PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| DIAL SCALE MARKING COLOR | BLACK |
| DIAL SCALE MARKING LUMINOSITY | NONLUMINOUS |
| MOUNTING CONFIGURATION | FOUR 0.180 IN. DIA MTG HOLES SPACED ON 1.938 IN. BY 3.469 IN. MTG CENTERS |
| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | SOLDER LUG |
| TERMINAL LENGTH | 0.750 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | TYPE NO. AN/PDR-18 |
| MANUFACTURERS CODE | 79500 |
| DESIGN CONTROL REFERENCE | 55A2240 |
Restrictions/Controls & Freight Information | NSN 6665-00-250-6471
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
