NSN 6675-00-051-8436 51968, 5196-8, 00-051-8436
Product Details | SURVEYING TRIPOD
6675-00-051-8436 A three legged device for holding or supporting various types of surveying instruments or equipment with the legs hinged to the top or head.
Part Alternates: 51968, 5196-8, 6675-00-051-8436, 00-051-8436, 6675000518436, 000518436
Instruments and Laboratory Equipment | Drafting, Surveying, and Mapping Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-051-8436 | 04369 ( TRIPOD, SURVEYING ) |
Drawings & Photos | NSN 6675-00-051-8436
Cross Reference | NSN 6675-00-051-8436
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5196-8 | 66796 | BRUNSON INSTRUMENT COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6675-00-051-8436
Technical Data | NSN 6675-00-051-8436
| Characteristic | Specifications |
|---|---|

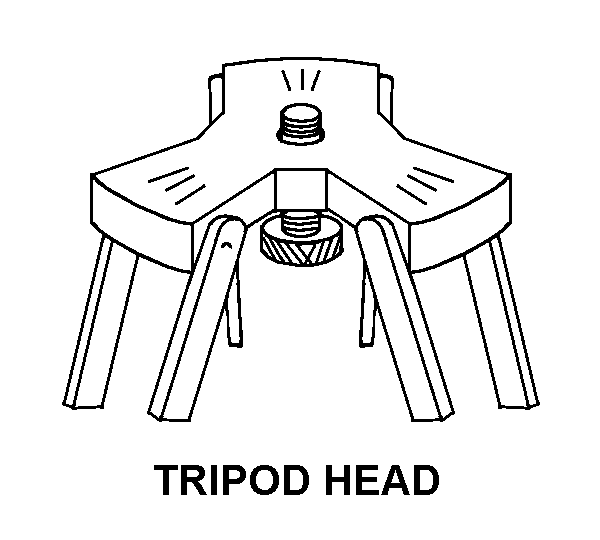

| HEAD STYLE | 1 TRIPOD HEAD |
| HEAD THREAD SIZE | 3-1/2 IN. -8 |
| HEAD SUPPORT TUBE | NOT INCLUDED |
| HEAD ADAPTER | NOT INCLUDED |
| END ITEM MANUFACTURER NAME | KEUFFEL AND ESSER CO |
| END ITEM MANUFACTURER ADDRESS | HOBOKEN,N.J, |
| LEG TYPE | FIXED |
| LEG CONSTRUCTION | SPLIT |
| LEG MATERIAL | WOOD |
| LEG LENGTH | 64.000 INCHES NOMINAL |
| SECTION QUANTITY PER LEG | 1 |
| FOOT TIP MATERIAL | METAL |
| HOLDING STRAP | NOT INCLUDED |
| CARRYING CASE | NOT PROVIDED |
| III END ITEM IDENTIFICATION | P5022 |
| MANUFACTURERS CODE | 66796 |
| DESIGN CONTROL REFERENCE | 5196-8 |
Restrictions/Controls & Freight Information | NSN 6675-00-051-8436
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
