NSN 6675-00-255-5013 715030, 71-5030, 00-255-5013
Product Details | SURVEYING TRIPOD
6675-00-255-5013 A three legged device for holding or supporting various types of surveying instruments or equipment with the legs hinged to the top or head.
Part Alternates: 715030, 71-5030, 6675-00-255-5013, 00-255-5013, 6675002555013, 002555013
Instruments and Laboratory Equipment | Drafting, Surveying, and Mapping Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 12 JAN 1972 | 00-255-5013 | 04369 ( TRIPOD, SURVEYING ) |
Drawings & Photos | NSN 6675-00-255-5013
Cross Reference | NSN 6675-00-255-5013
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 71-5030 | 66796 | BRUNSON INSTRUMENT COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6675-00-255-5013
Related Products | NSN 6675-00-255-5013
Technical Data | NSN 6675-00-255-5013
| Characteristic | Specifications |
|---|---|

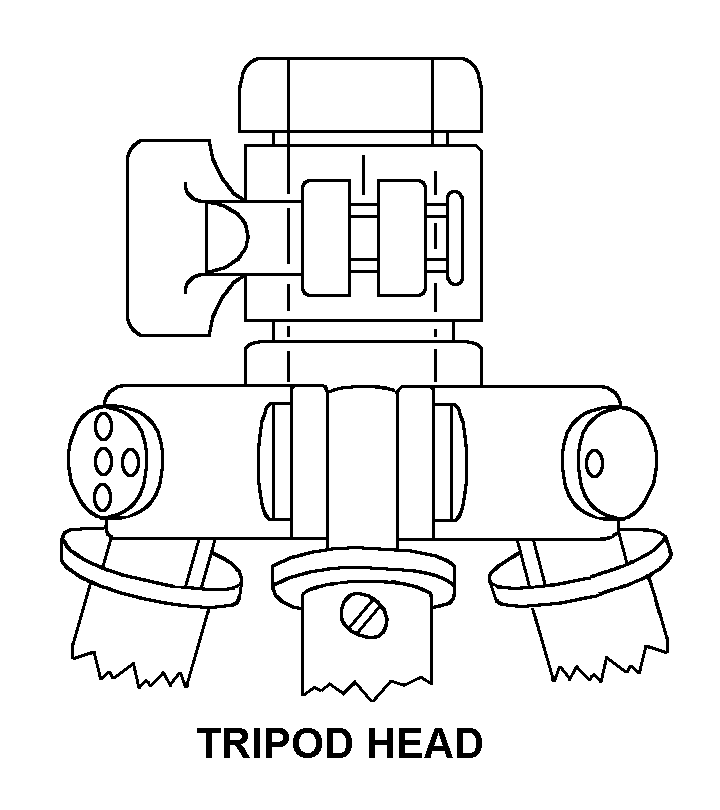

| HEAD STYLE | 6 TRIPOD HEAD |
| HEAD SUPPORT TUBE | NOT INCLUDED |
| HEAD ADAPTER | NOT INCLUDED |
| LEG TYPE | FIXED |
| SECTION QUANTITY PER LEG | 1 |
| FOOT TIP MATERIAL | RUBBER, HARD |
| HOLDING STRAP | NOT INCLUDED |
| CARRYING CASE | NOT PROVIDED |
| SPECIAL FEATURES | ADJUSTABLE HEIGHT FROM 31 IN. TO 51.5 IN.,360 DEC SWIVEL COLUMN |
Restrictions/Controls & Freight Information | NSN 6675-00-255-5013
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 147730 | OUTFITS MILITARY SURVEYING SUB1 |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6675-00-255-5013
Air Force| Category | Code | Description |
|---|---|---|
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RK | SX:AEROSPACE SUPPORT ACCESSORIES |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
