NSN 6675-01-082-6318 B1C, B-1C, 01-082-6318
Product Details | SURVEYING LEVEL
6675-01-082-6318 An instrument consisting of a leveling and sighting device, used for general topographic measurements, such as determining and delineating the form, extent or the like, of a tract of land. It is manually adjusted. Excludes CLINOMETER, ELEVATION AND DEPRESSION, SURVEYING and LEVEL, OPTICAL, AUTOMATIC.
Part Alternates: B1C, B-1C, 6675-01-082-6318, 01-082-6318, 6675010826318, 010826318
Instruments and Laboratory Equipment | Drafting, Surveying, and Mapping Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 06 SEP 1979 | 01-082-6318 | 04391 ( LEVEL, SURVEYING ) |
Drawings & Photos | NSN 6675-01-082-6318
Cross Reference | NSN 6675-01-082-6318
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B-1C | 73996 | SOKKIA CORPORATION DBA FOREIGN PARENT IS SOKKIA CO LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6675-01-082-6318
Related Products | NSN 6675-01-082-6318
Technical Data | NSN 6675-01-082-6318
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | PRECISE LEVELING |
| BODY CROSS-SECTIONAL SHAPE | RECTANGULAR |
| OVERALL LENGTH | 270.0 MILLIMETERS NOMINAL |
| SIGHTING DEVICE TYPE | TELESCOPE |
| TELESCOPE TYPE | ERECTING |
| TELESCOPE LENGTH | 270.0 MILLIMETERS NOMINAL |
| FOCUSING TYPE | EXTERNAL |
| DIAMETER MAGNIFYING POWER | 32.0 NOMINAL |
| STADIA HAIR | INCLUDED |
| STRIDING LEVEL | NOT INCLUDED |
| EFFECTIVE APERTURE SIZE | 45.0 MILLIMETERS NOMINAL |
| AUXILIARY TELESCOPE | NOT INCLUDED |
| TELESCOPE LEVEL VIAL | NOT INCLUDED |
| LEVEL TYPE | SELF-LEVELING |
| ILLUMINATED FEATURE | NOT INCLUDED |
| SPIRIT LEVEL SENSITIVITY | 10MINUTES |
| HORIZONTAL CIRCLE | INCLUDED |
| HORIZONTAL CIRCLE DIAMETER | 92.0 MILLIMETERS NOMINAL |
| HORIZONTAL CIRCLE UNIT OF MEASURE INSCRIPTION | DEGREES |
| HORIZONTAL CIRCLE VERNIER | NOT INCLUDED |

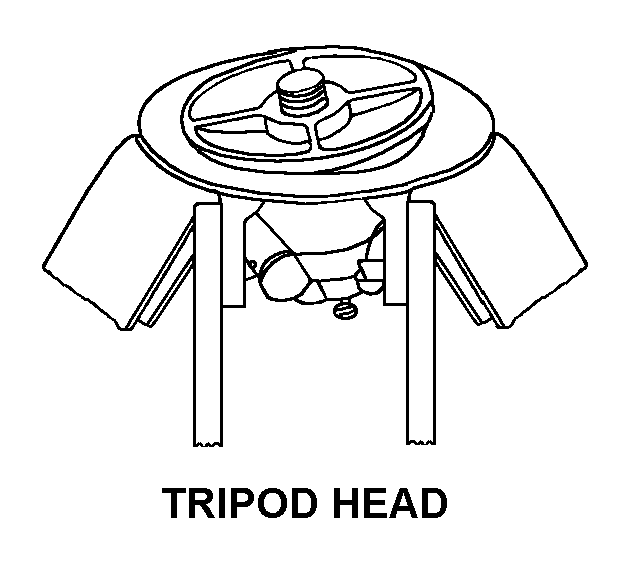

| TRIPOD HEAD STYLE | 2 TRIPOD HEAD |
| THREAD SIZE | 5/8 |
| TRIPOD | NOT INCLUDED |
| SPECIAL FEATURES | RESOLVING POWER 3 SECONDS; FIELF OF VIEW @ 100M 1 DEG 20 MIN (2.3M); MINIMUM FOCUSING DISTANCE 2.3M; MAGNETIC DAMPING SYSTEM; 144 MM WIDE; 163 MM HIGH |
| III UNPACKAGED UNIT WEIGHT | 3.2 KILOGRAMS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | AUTOMATIC LEVEL |
Restrictions/Controls & Freight Information | NSN 6675-01-082-6318
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 147730 | OUTFITS MILITARY SURVEYING SUB1 |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6675-01-082-6318
Air Force| Category | Code | Description |
|---|---|---|
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RK | SX:AEROSPACE SUPPORT ACCESSORIES |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
