NSN 6680-00-068-5558 3173232, 3173-232, 00-068-5558
Product Details | ROTATING COUNTER
6680-00-068-5558 An instrument actuated by means of a rotating shaft and designed to register and total numerically in units proportional to one complete revolution of its shaft. It may have a fixed type mounting or designed to be hand held. See also COUNTER, ELECTRICAL.
Part Alternates: 3173232, 3173-232, 6680-00-068-5558, 00-068-5558, 6680000685558, 000685558
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-068-5558 | 30762 ( COUNTER, ROTATING ) |
Drawings & Photos | NSN 6680-00-068-5558
Cross Reference | NSN 6680-00-068-5558
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3173-232 | 90073 | CMC ELECTRONICS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-00-068-5558
Technical Data | NSN 6680-00-068-5558
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B7 CYLINDRICAL CASED |
| OVERALL LENGTH | 1.420 INCHES NOMINAL |
| SHAFT DIAMETER | 0.156 INCHES NOMINAL |
| OVERALL DIAMETER | 1.310 INCHES NOMINAL |
| REGISTER QUANTITY | 1 |
| REGISTER FUNCTION | ADD SINGLE REGISTER SINGLE TIER |
| REGISTER RESET METHOD | TOTAL COUNTER MANUAL SINGLE REGISTER SINGLE TIER |
| FIGURE QUANTITY PER REGISTER | 4 SINGLE REGISTER SINGLE TIER |
| FIGURE HEIGHT | 0.156 INCHES NOMINAL SINGLE REGISTER SINGLE TIER |
| COLOR | WHITE SINGLE REGISTER SINGLE TIER FIGURE BLACK SINGLE REGISTER SINGLE TIER FIGURE BACKGROUND |
| NUMERAL DISPLAY METHOD | DRUM |
| SHAFT REVOLUTIONS PER COUNT | 1.00 SINGLE REGISTER SINGLE TIER |
| MOUNTING TYPE FOR WHICH DESIGNED | BASE SINGLE REGISTER SINGLE TIER |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 THREADED HOLE |

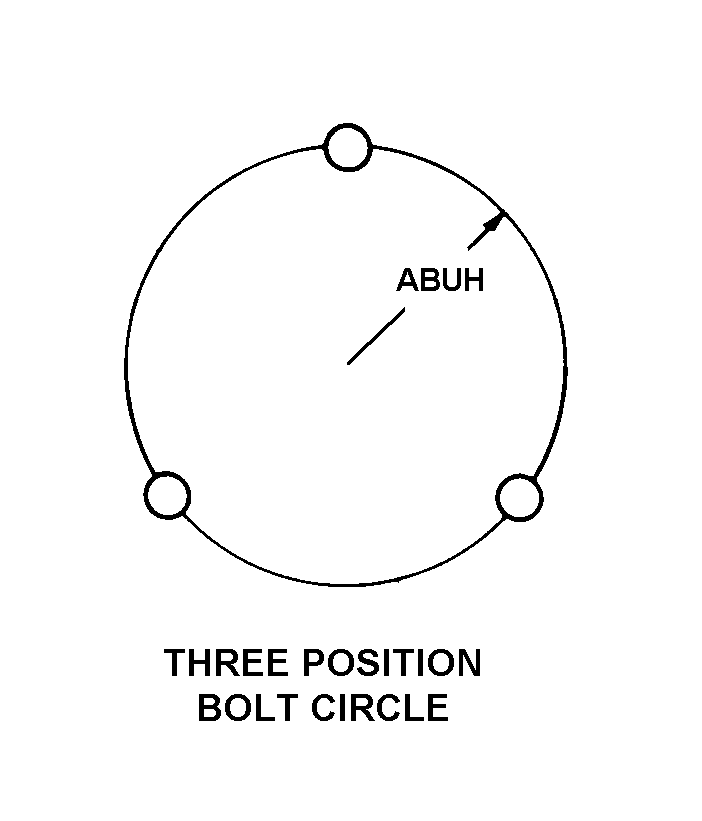

| MOUNTING ARRANGEMENT STYLE | A9 THREE POSITION BOLT CIRCLE |
| MOUNTING HOLE CIRCLE RADIUS | 1.094 INCHES NOMINAL |
| SPECIAL FEATURES | SHAFT LOCATION DIRECTION CW; ACTUATING DEVICE LOCATED ON LEFT OR RIGHT SIDE |
| MANUFACTURERS CODE | 90073 |
| DESIGN CONTROL REFERENCE | 3173-232 |
Restrictions/Controls & Freight Information | NSN 6680-00-068-5558
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
| Less than car load rating | F | 150 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
